Diesel Fuel Tank · Thomas Thomas Nut Bankout (2023)

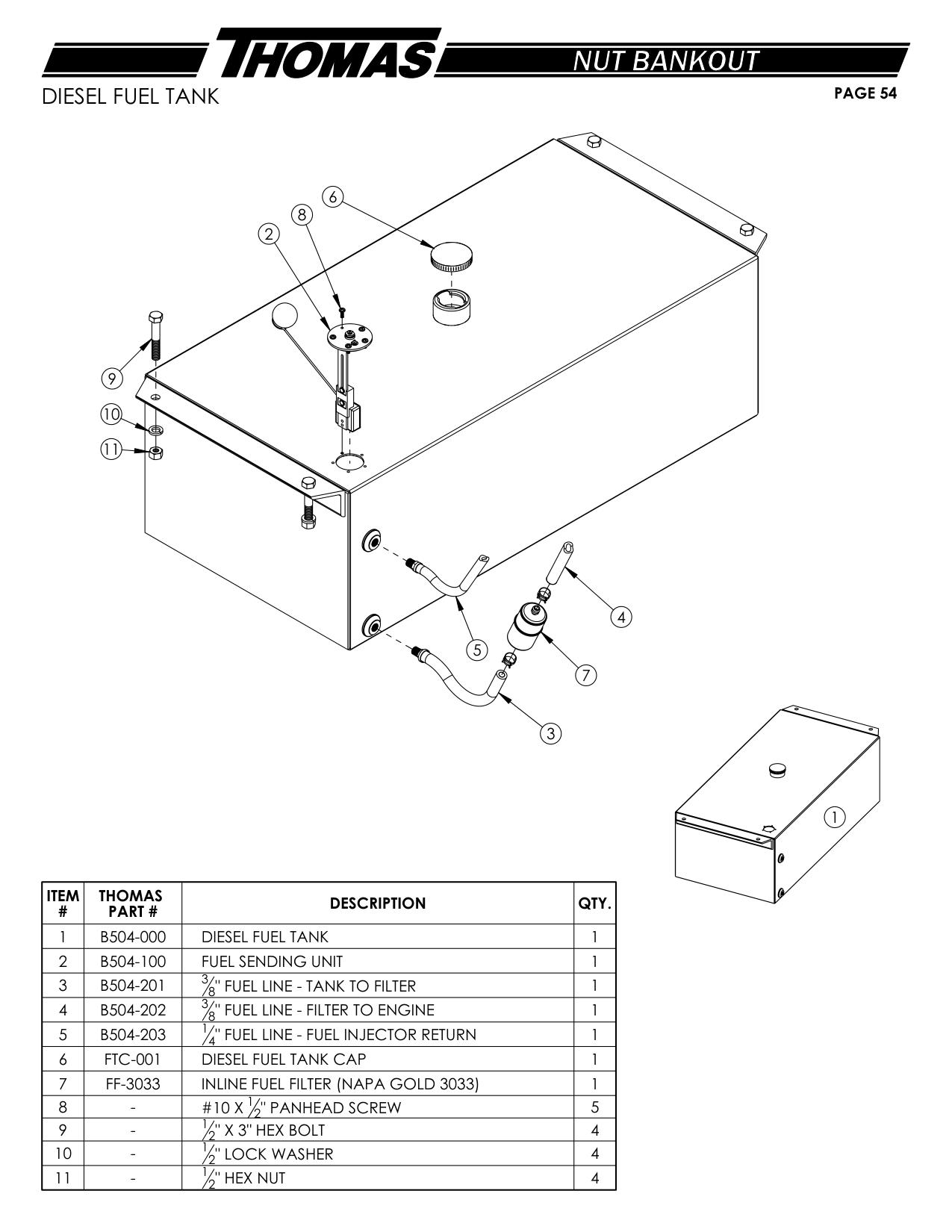

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | B504-000 | DIESEL FUEL TANK | 1 |
| 2 | B504-100 | FUEL SENDING UNIT | 1 |
| 3 | B504-201 | 8" FUEL LINE - TANK TO FILTER | 1 |
| 4 | B504-202 | 8" FUEL LINE - FILTER TO ENGINE | 1 |
| 5 | B504-203 | 4" FUEL LINE - FUEL INJECTOR RETURN | 1 |
| 6 | FTC-001 | DIESEL FUEL TANK CAP | 1 |
| 7 | FF-3033 | INLINE FUEL FILTER (NAPA GOLD 3033) | 1 |
