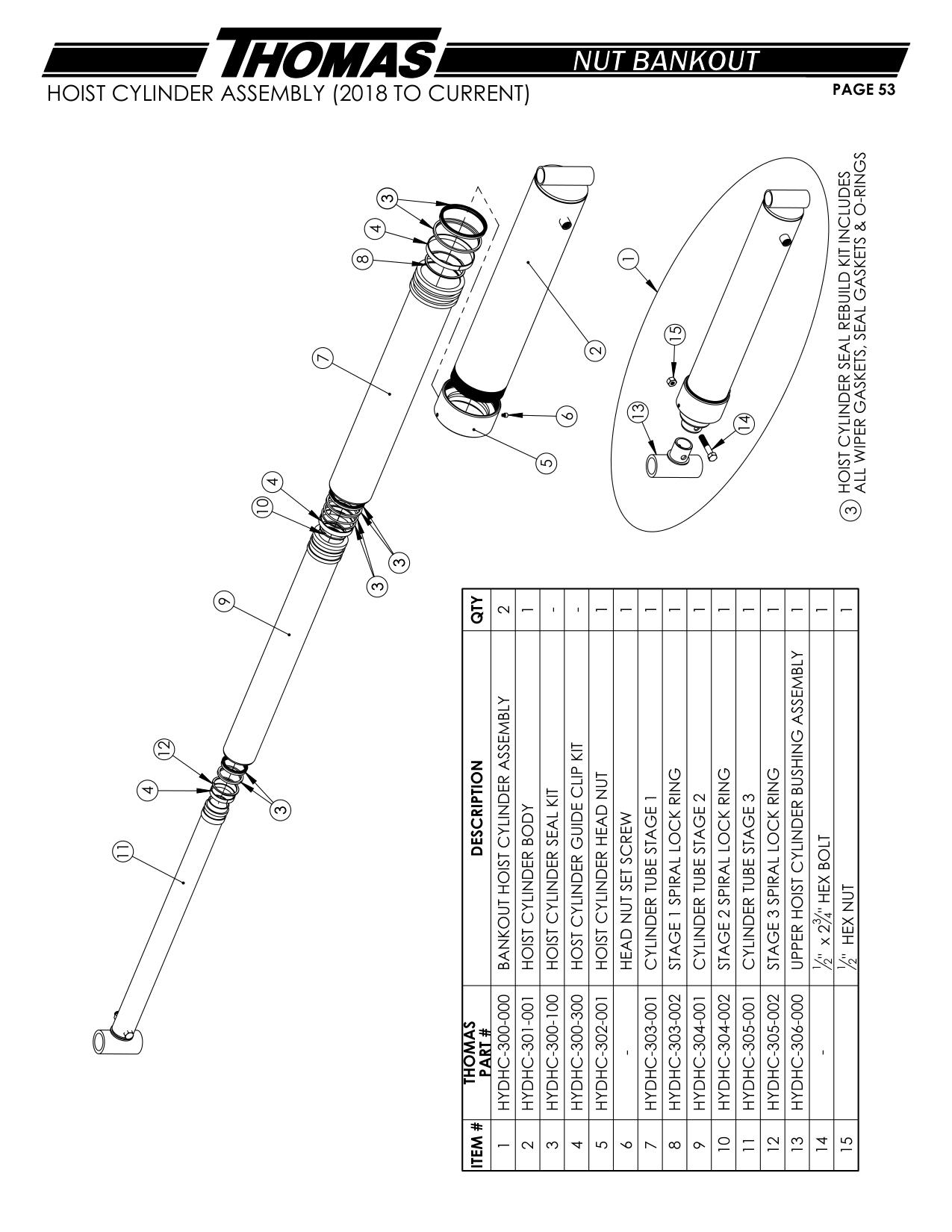

Diagram · Thomas Thomas Nut Bankout (2023)
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | HYDHC-300-000 | BANKOUT HOIST CYLINDER ASSEMBLY | 2 |
| 2 | HYDHC-301-001 | HOIST CYLINDER BODY | 1 |
| 3 | HYDHC-300-100 | HOIST CYLINDER SEAL KIT - | 5 |
| 4 | HYDHC-300-300 | HOST CYLINDER GUIDE CLIP KIT | |
| 5 | HYDHC-302-001 | HOIST CYLINDER HEAD NUT | 1 |
| 7 | HYDHC-303-001 | CYLINDER TUBE STAGE | 1 |
| 8 | HYDHC-303-002 | STAGE 1 SPIRAL LOCK RING | 1 |
| 9 | HYDHC-304-001 | CYLINDER TUBE STAGE | 2 |
| 10 | HYDHC-304-002 | STAGE 2 SPIRAL LOCK RING | 1 |
| 11 | HYDHC-305-001 | CYLINDER TUBE STAGE 3 | 1 |
| 12 | HYDHC-305-002 | STAGE 3 SPIRAL LOCK RING | 1 |
| 13 | HYDHC-306-000 | UPPER HOIST CYLINDER BUSHING ASSEMBLY | 1 |
