2" Hex Nut · Thomas Thomas Nut Bankout (2023)

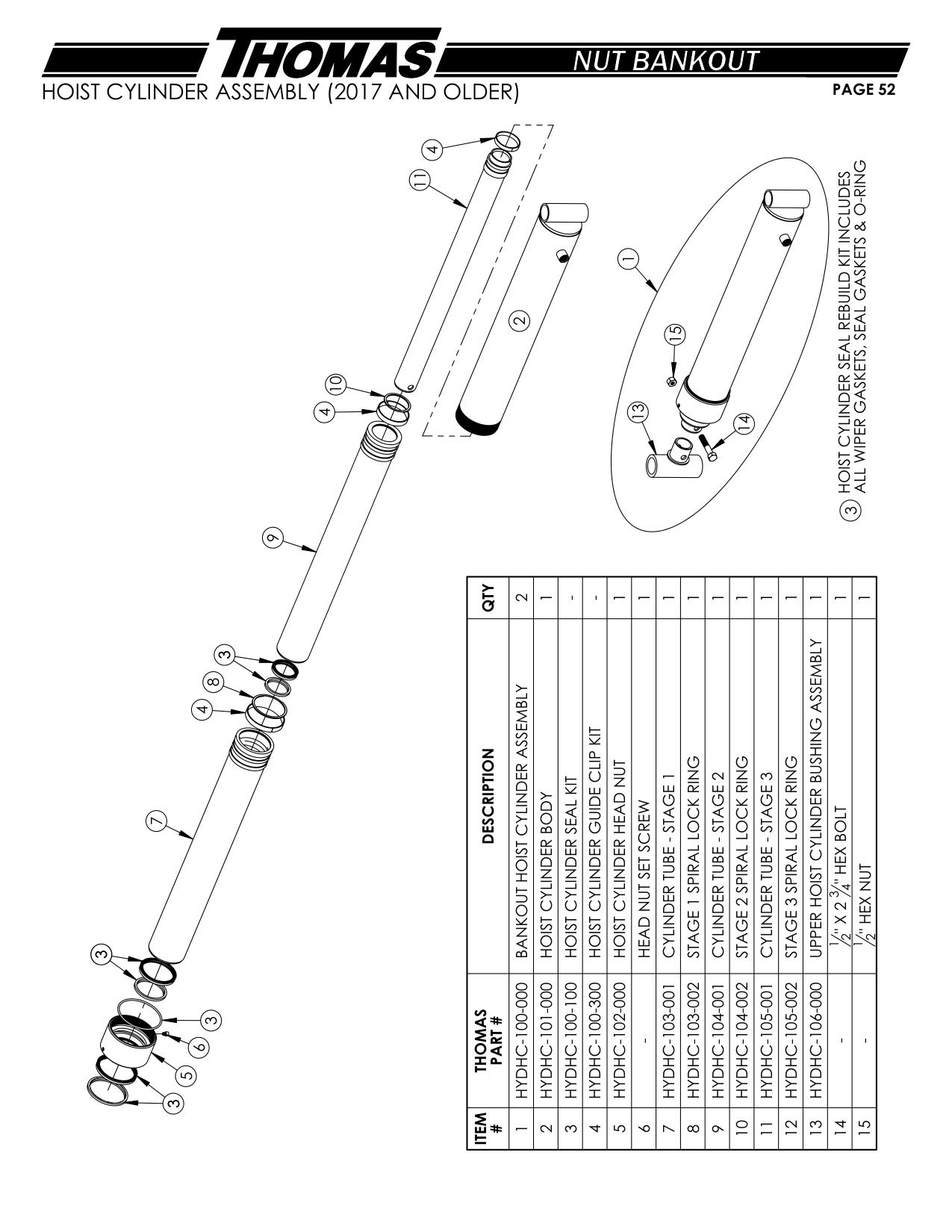

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | HYDHC-100-000 | BANKOUT HOIST CYLINDER ASSEMBLY | 2 |
| 2 | HYDHC-101-000 | HOIST CYLINDER BODY | 1 |
| 3 | HYDHC-100-100 | HOIST CYLINDER SEAL KIT | |
| 4 | HYDHC-100-300 | HOIST CYLINDER GUIDE CLIP KIT | |
| 5 | HYDHC-102-000 | HOIST CYLINDER HEAD NUT | 1 |
| 7 | HYDHC-103-001 | CYLINDER TUBE - STAGE 1 | 1 |
| 8 | HYDHC-103-002 | STAGE 1 SPIRAL LOCK RING | 1 |
| 9 | HYDHC-104-001 | CYLINDER TUBE - STAGE | 2 |
| 10 | HYDHC-104-002 | STAGE 2 SPIRAL LOCK RING | 1 |
| 11 | HYDHC-105-001 | CYLINDER TUBE - STAGE | 3 |
| 12 | HYDHC-105-002 | STAGE 3 SPIRAL LOCK RING | 1 |
| 13 | HYDHC-106-000 | UPPER HOIST CYLINDER BUSHING ASSEMBLY | 1 |
