Hydraulic Control Valve Assembly · Thomas Thomas Nut Bankout (2023)

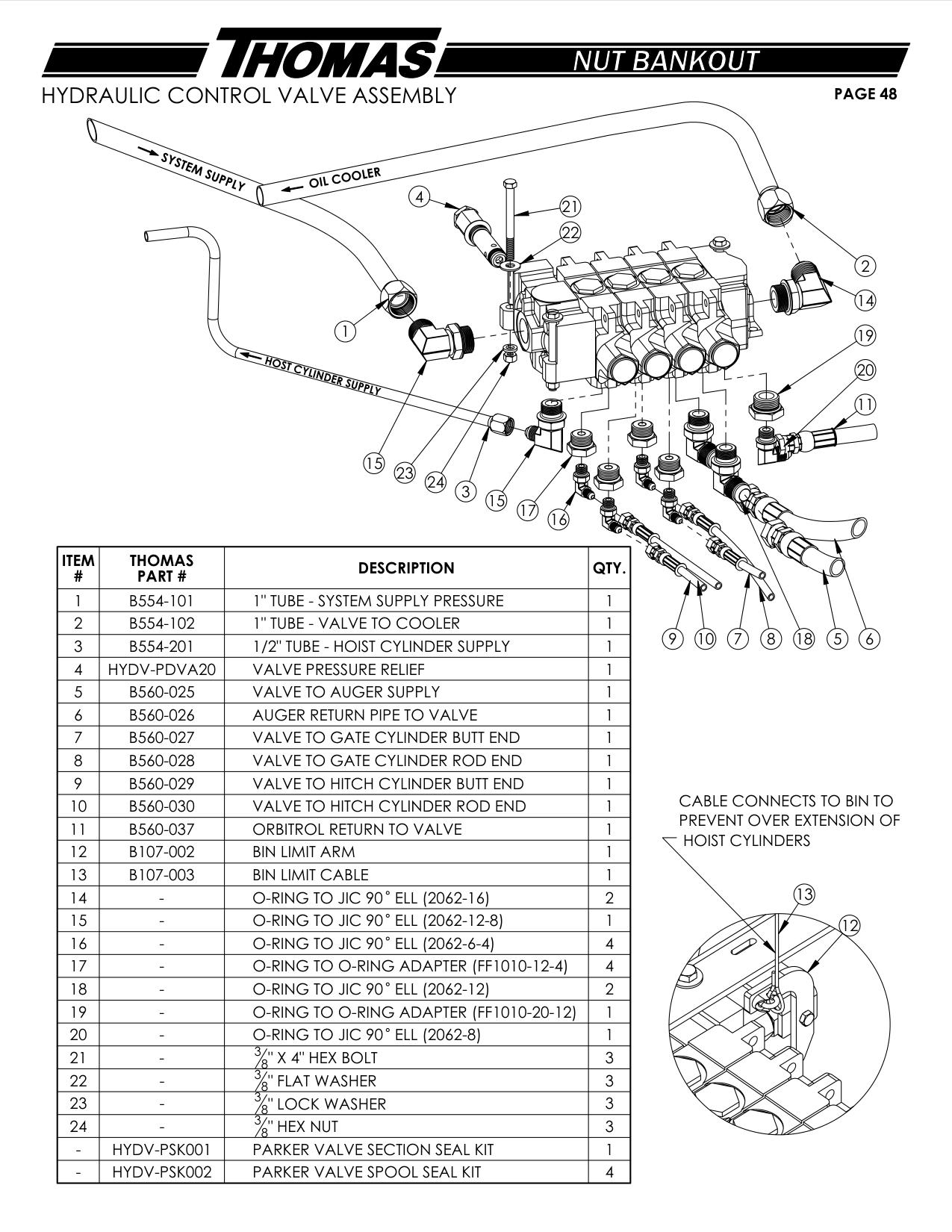

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| - | HYDV-PSK001 | PARKER VALVE SECTION SEAL KIT | 1 |
| - | HYDV-PSK002 | PARKER VALVE SPOOL SEAL KIT | 4 |
| 1 | B554-101 | 1" TUBE - SYSTEM SUPPLY PRESSURE | 1 |
| 2 | B554-102 | 1" TUBE - VALVE TO COOLER | 1 |
| 3 | B554-201 | 1/2" TUBE - HOIST CYLINDER SUPPLY 1 9 10 7 8 18 | 5 |
| 4 | HYDV-PDVA20 | VALVE PRESSURE RELIEF | 1 |
| 5 | B560-025 | VALVE TO AUGER SUPPLY | 1 |
| 6 | B560-026 | AUGER RETURN PIPE TO VALVE | 1 |
| 7 | B560-027 | VALVE TO GATE CYLINDER BUTT END | 1 |
| 8 | B560-028 | VALVE TO GATE CYLINDER ROD END | 1 |
| 9 | B560-029 | VALVE TO HITCH CYLINDER BUTT END | 1 |
| 10 | B560-030 | VALVE TO HITCH CYLINDER ROD END 1 CABLE CONNECTS TO BIN TO | |
| 11 | B560-037 | ORBITROL RETURN TO VALVE | 1 |
| 12 | B107-002 | BIN LIMIT ARM | 1 |
| 13 | B107-003 | BIN LIMIT CABLE | 1 |
