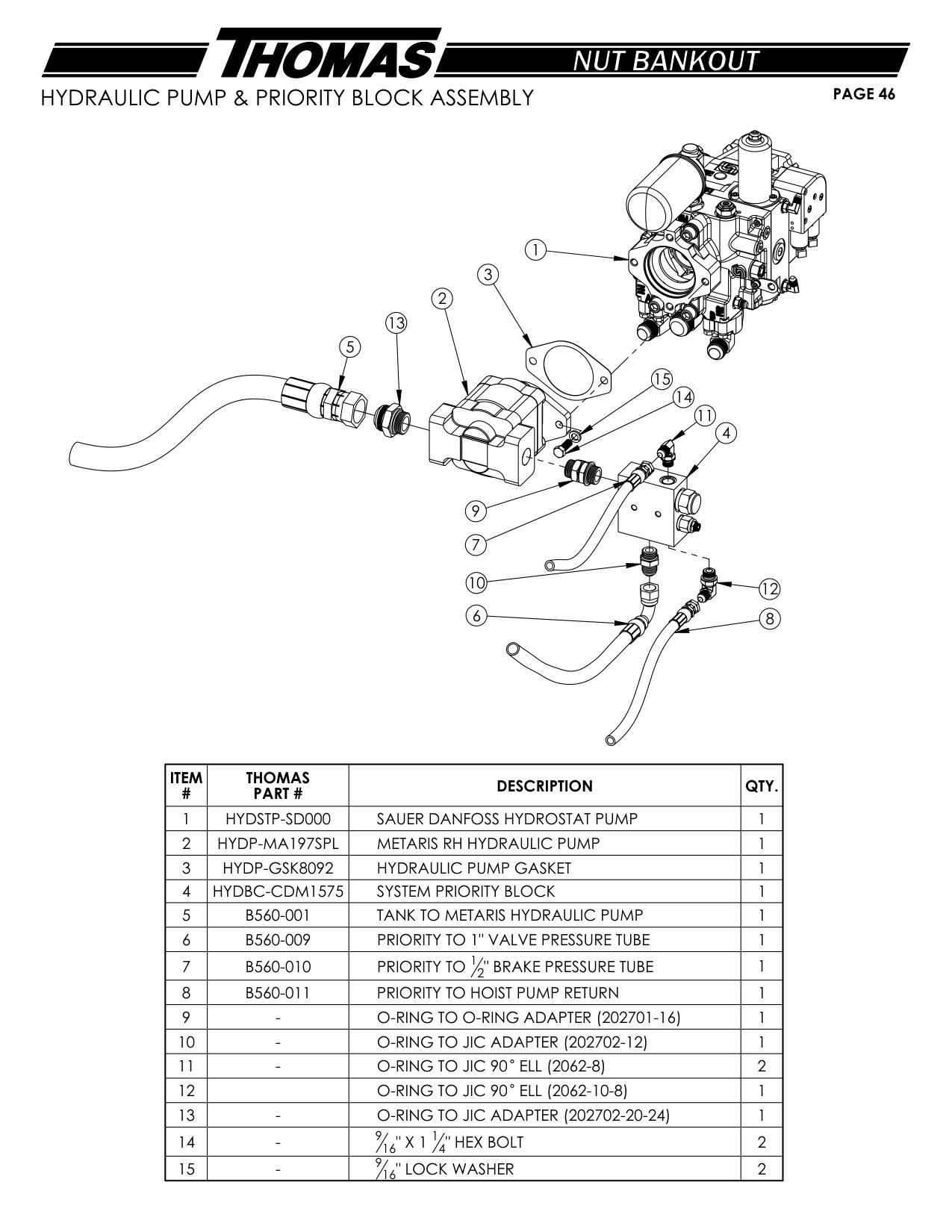

Hydraulic Pump & Priority Block Assembly · Thomas Thomas Nut Bankout (2023)
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | HYDSTP-SD000 | SAUER DANFOSS HYDROSTAT PUMP | 1 |
| 2 | HYDP-MA197SPL | METARIS RH HYDRAULIC PUMP | 1 |
| 3 | HYDP-GSK8092 | HYDRAULIC PUMP GASKET | 1 |
| 4 | HYDBC-CDM1575 | SYSTEM PRIORITY BLOCK | 1 |
| 5 | B560-001 | TANK TO METARIS HYDRAULIC PUMP | 1 |
| 6 | B560-009 | PRIORITY TO 1" VALVE PRESSURE TUBE | 1 |
| 7 | B560-010 | PRIORITY TO 12" BRAKE PRESSURE TUBE | 1 |
| 8 | B560-011 | PRIORITY TO HOIST PUMP RETURN | 1 |
