Donaldson Engine Air Filter · Thomas Thomas Nut Bankout (2023)

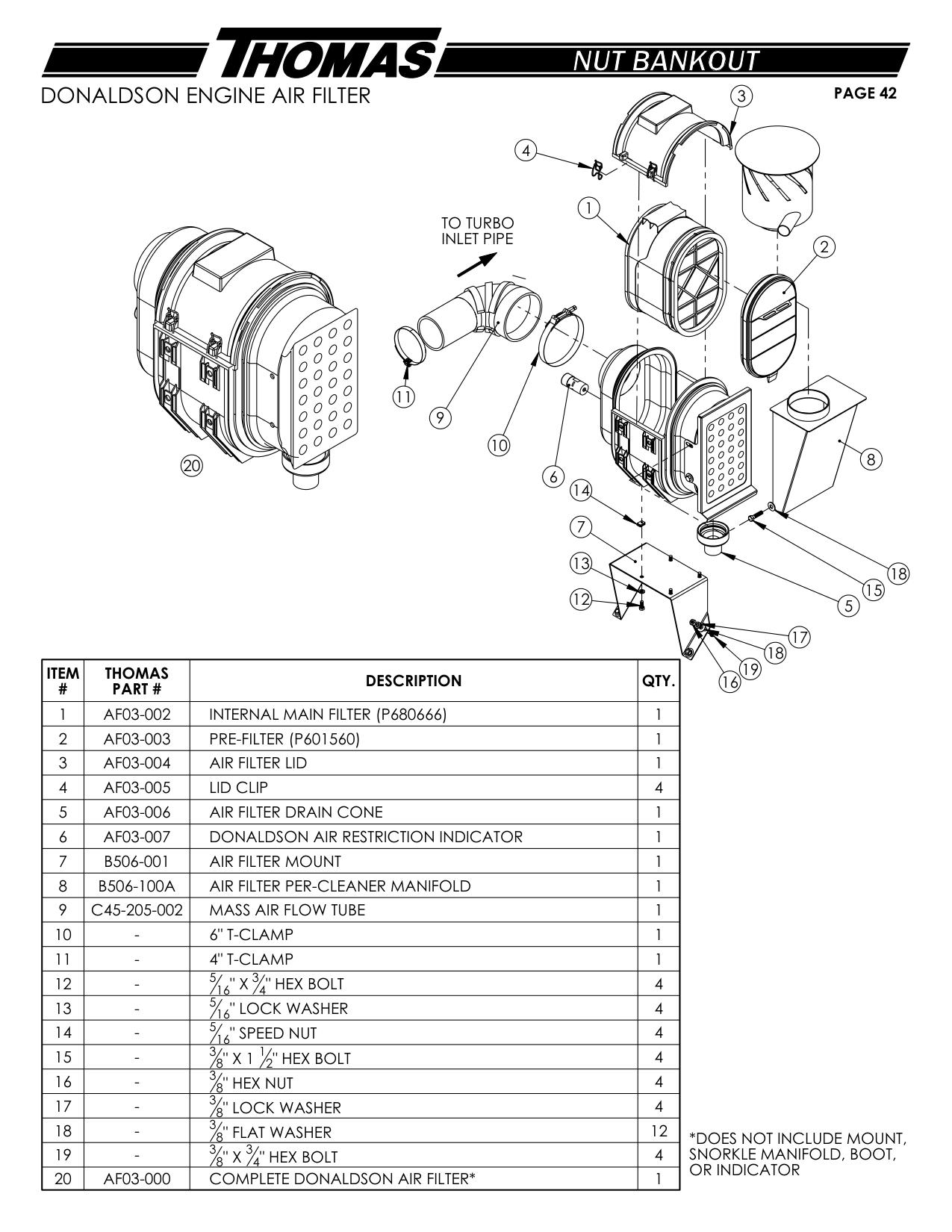

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | AF03-002 | INTERNAL MAIN FILTER (P680666) | 1 |
| 2 | AF03-003 | PRE-FILTER (P601560) | 1 |
| 3 | AF03-004 | AIR FILTER LID | 1 |
| 4 | AF03-005 | LID CLIP | 4 |
| 5 | AF03-006 | AIR FILTER DRAIN CONE | 1 |
| 6 | AF03-007 | DONALDSON AIR RESTRICTION INDICATOR | 1 |
| 7 | B506-001 | AIR FILTER MOUNT | 1 |
| 8 | B506-100A | AIR FILTER PER-CLEANER MANIFOLD | 1 |
| 9 | C45-205-002 | MASS AIR FLOW TUBE | 1 |
| 20 | AF03-000 | COMPLETE DONALDSON AIR FILTER* | 1 |
