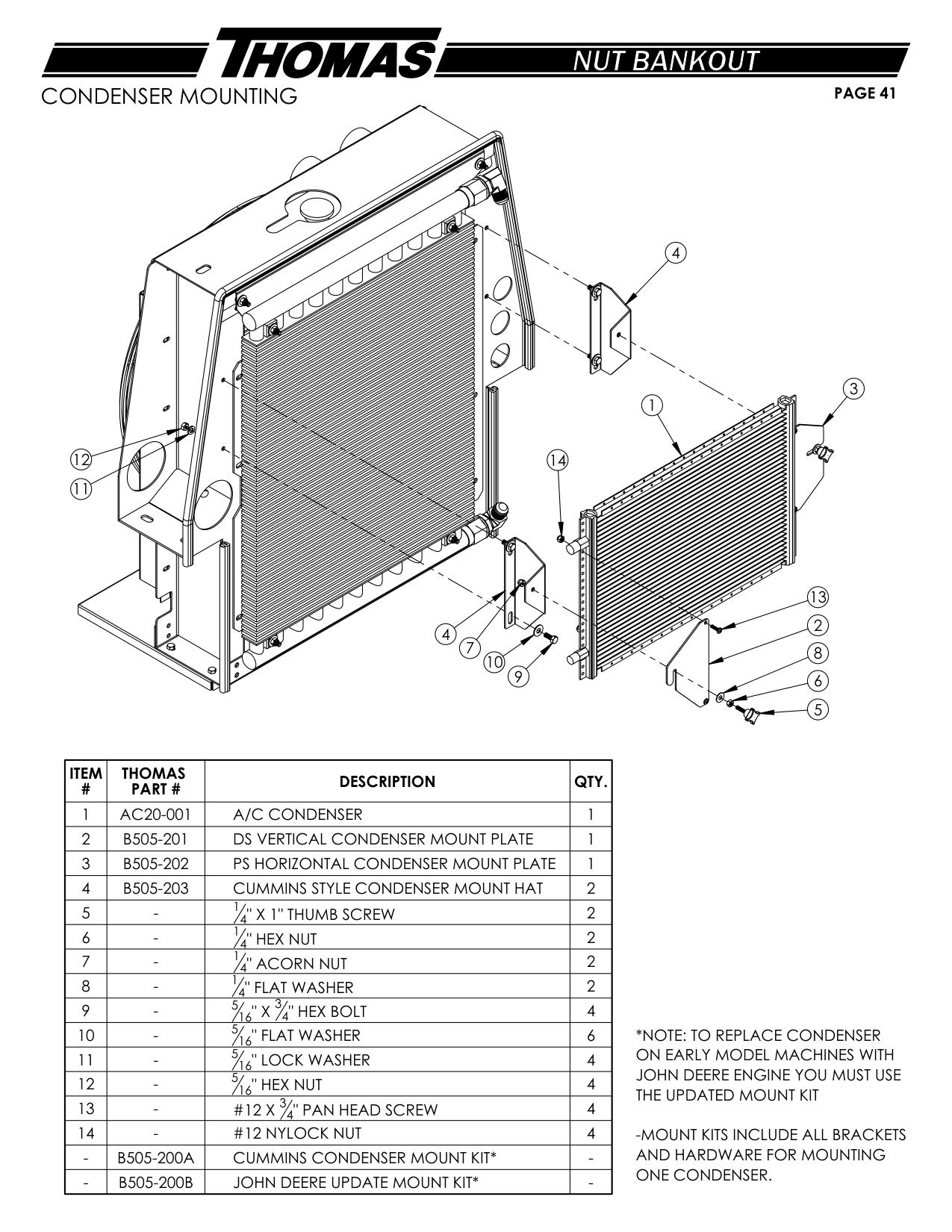

Condenser Mounting · Thomas Thomas Nut Bankout (2023)
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| - | B505-200A | CUMMINS CONDENSER MOUNT KIT* - AND HARDWARE FOR MOUNTING | |
| - | B505-200B | JOHN DEERE UPDATE MOUNT KIT* - ONE CONDENSER. | |
| 1 | AC20-001 | A/C CONDENSER | 1 |
| 2 | B505-201 | DS VERTICAL CONDENSER MOUNT PLATE | 1 |
| 3 | B505-202 | PS HORIZONTAL CONDENSER MOUNT PLATE | 1 |
| 4 | B505-203 | CUMMINS STYLE CONDENSER MOUNT HAT | 2 |
