Cat 3.6 Oil Cooler Assembly · Thomas Thomas Nut Bankout (2023)

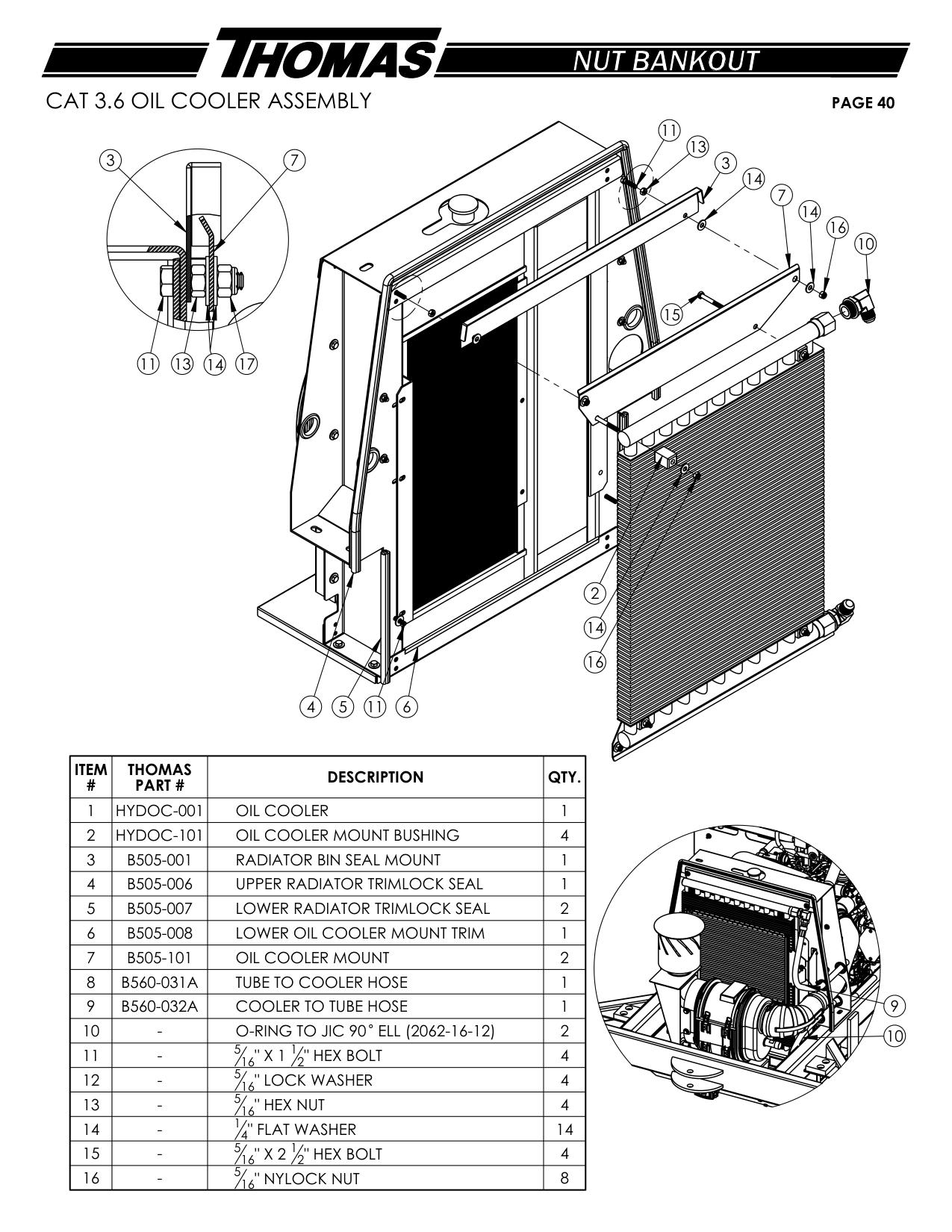

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | HYDOC-001 | OIL COOLER | 1 |
| 2 | HYDOC-101 | OIL COOLER MOUNT BUSHING | 4 |
| 3 | B505-001 | RADIATOR BIN SEAL MOUNT | 1 |
| 4 | B505-006 | UPPER RADIATOR TRIMLOCK SEAL | 1 |
| 5 | B505-007 | LOWER RADIATOR TRIMLOCK SEAL | 2 |
| 6 | B505-008 | LOWER OIL COOLER MOUNT TRIM | 1 |
| 7 | B505-101 | OIL COOLER MOUNT | 2 |
| 8 | B560-031A | TUBE TO COOLER HOSE | 1 |
| 9 | B560-032A | COOLER TO TUBE HOSE | 1 |
