11 B505-300 Air Filter Vacuum Kit 1 · Thomas Thomas Nut Bankout (2023)

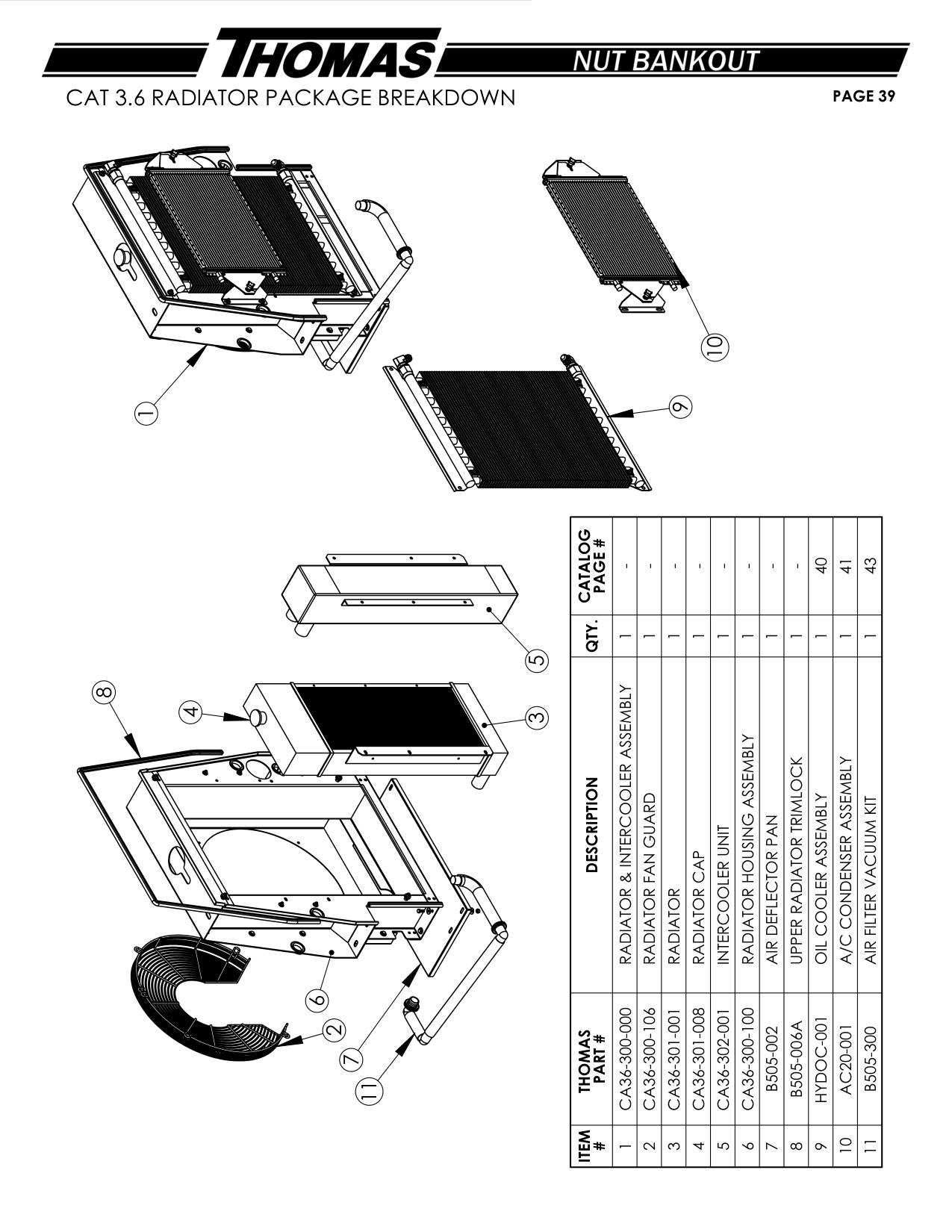

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | CA36-300-000 | RADIATOR & INTERCOOLER ASSEMBLY | 1 |
| 2 | CA36-300-106 | RADIATOR FAN GUARD | 1 |
| 3 | CA36-301-001 | RADIATOR | 1 |
| 4 | CA36-301-008 | RADIATOR CAP | 1 |
| 5 | CA36-302-001 | INTERCOOLER UNIT 1 - | 10 |
| 6 | CA36-300-100 | RADIATOR HOUSING ASSEMBLY | 1 |
| 7 | B505-002 | AIR DEFLECTOR PAN | 1 |
| 8 | B505-006A | UPPER RADIATOR TRIMLOCK | 1 |
| 9 | HYDOC-001 | OIL COOLER ASSEMBLY | 1 |
| 10 | AC20-001 | A/C CONDENSER ASSEMBLY | 1 |
| 11 | B505-300 | AIR FILTER VACUUM KIT 1 43 PAGE | 39 |
