10 Ac20-001 A/C Condenser Assembly 1 · Thomas Thomas Nut Bankout (2023)

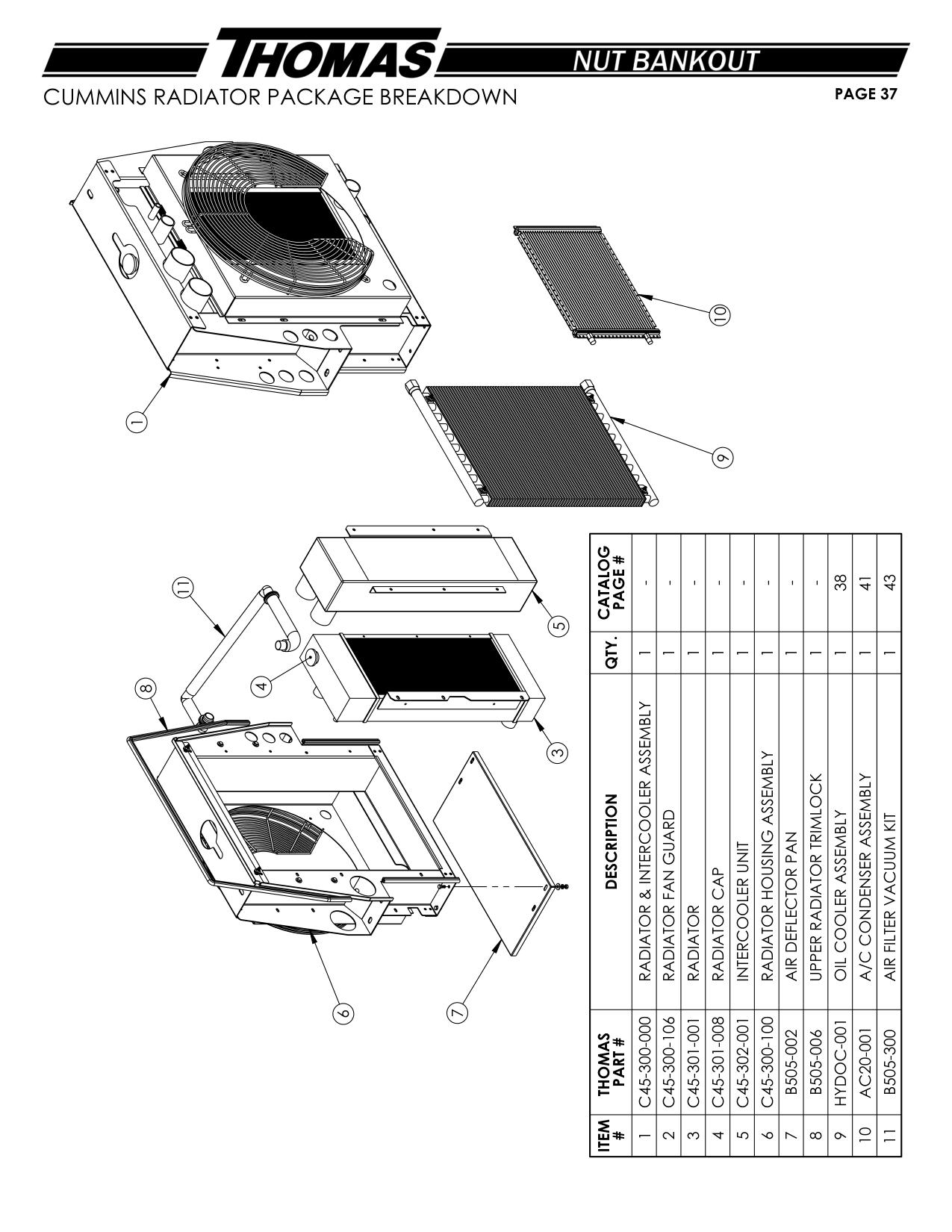

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | C45-300-000 | RADIATOR & INTERCOOLER ASSEMBLY | 1 |
| 2 | C45-300-106 | RADIATOR FAN GUARD | 1 |
| 3 | C45-301-001 | RADIATOR | 1 |
| 4 | C45-301-008 | RADIATOR CAP 1 - | 9 |
| 5 | C45-302-001 | INTERCOOLER UNIT | 1 |
| 6 | C45-300-100 | RADIATOR HOUSING ASSEMBLY | 1 |
| 7 | B505-002 | AIR DEFLECTOR PAN | 1 |
| 8 | B505-006 | UPPER RADIATOR TRIMLOCK | 1 |
| 9 | HYDOC-001 | OIL COOLER ASSEMBLY | 1 |
| 10 | AC20-001 | A/C CONDENSER ASSEMBLY | 1 |
