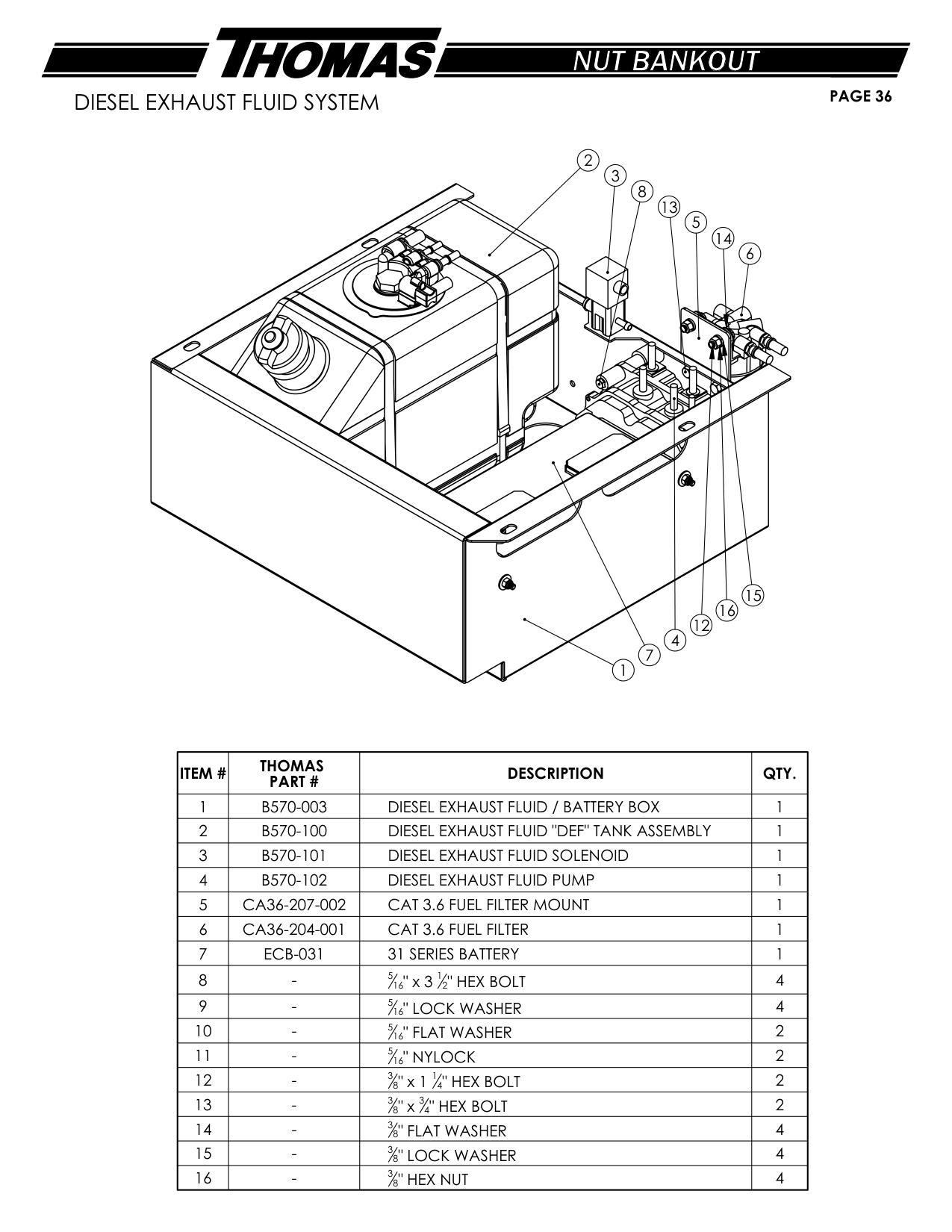

Diagram · Thomas Thomas Nut Bankout (2023)
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | B570-003 | DIESEL EXHAUST FLUID / BATTERY BOX | 1 |
| 2 | B570-100 | DIESEL EXHAUST FLUID "DEF" TANK ASSEMBLY | 1 |
| 3 | B570-101 | DIESEL EXHAUST FLUID SOLENOID | 1 |
| 4 | B570-102 | DIESEL EXHAUST FLUID PUMP | 1 |
| 5 | CA36-207-002 | CAT 3.6 FUEL FILTER MOUNT | 1 |
| 6 | CA36-204-001 | CAT 3.6 FUEL FILTER | 1 |
| 7 | ECB-031 | 31 SERIES BATTERY | 1 |
