Cat 3.6 Exhaust Breakdown · Thomas Thomas Nut Bankout (2023)

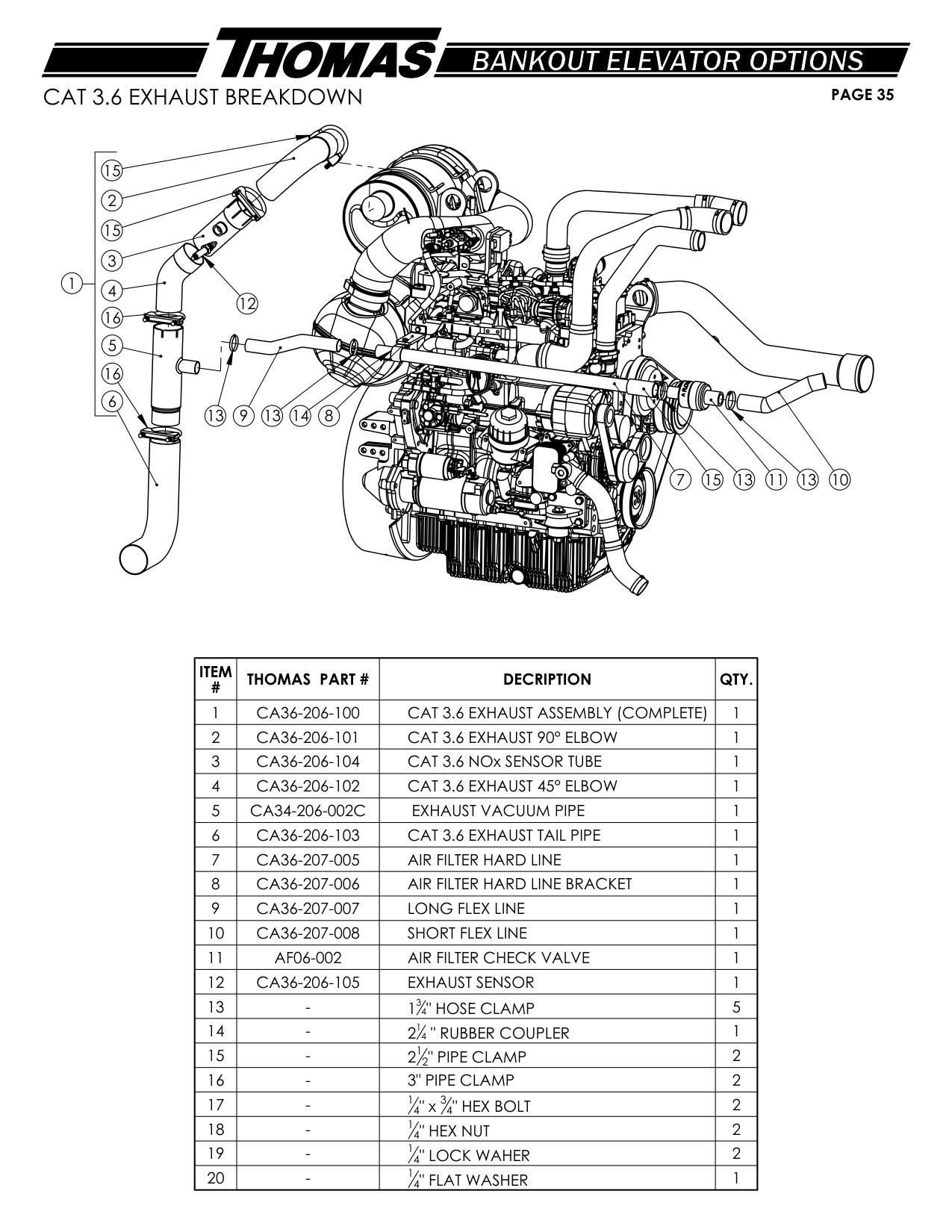

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | CA36-206-100 | CAT 3.6 EXHAUST ASSEMBLY (COMPLETE) | 1 |
| 2 | CA36-206-101 | CAT 3.6 EXHAUST 90° ELBOW | 1 |
| 3 | CA36-206-104 | CAT 3.6 NOx SENSOR TUBE | 1 |
| 4 | CA36-206-102 | CAT 3.6 EXHAUST 45° ELBOW | 1 |
| 5 | CA34-206-002C | EXHAUST VACUUM PIPE | 1 |
| 6 | CA36-206-103 | CAT 3.6 EXHAUST TAIL PIPE | 1 |
| 7 | CA36-207-005 | AIR FILTER HARD LINE | 1 |
| 8 | CA36-207-006 | AIR FILTER HARD LINE BRACKET | 1 |
| 9 | CA36-207-007 | LONG FLEX LINE | 1 |
| 10 | CA36-207-008 | SHORT FLEX LINE | 1 |
| 11 | AF06-002 | AIR FILTER CHECK VALVE | 1 |
| 12 | CA36-206-105 | EXHAUST SENSOR | 1 |
