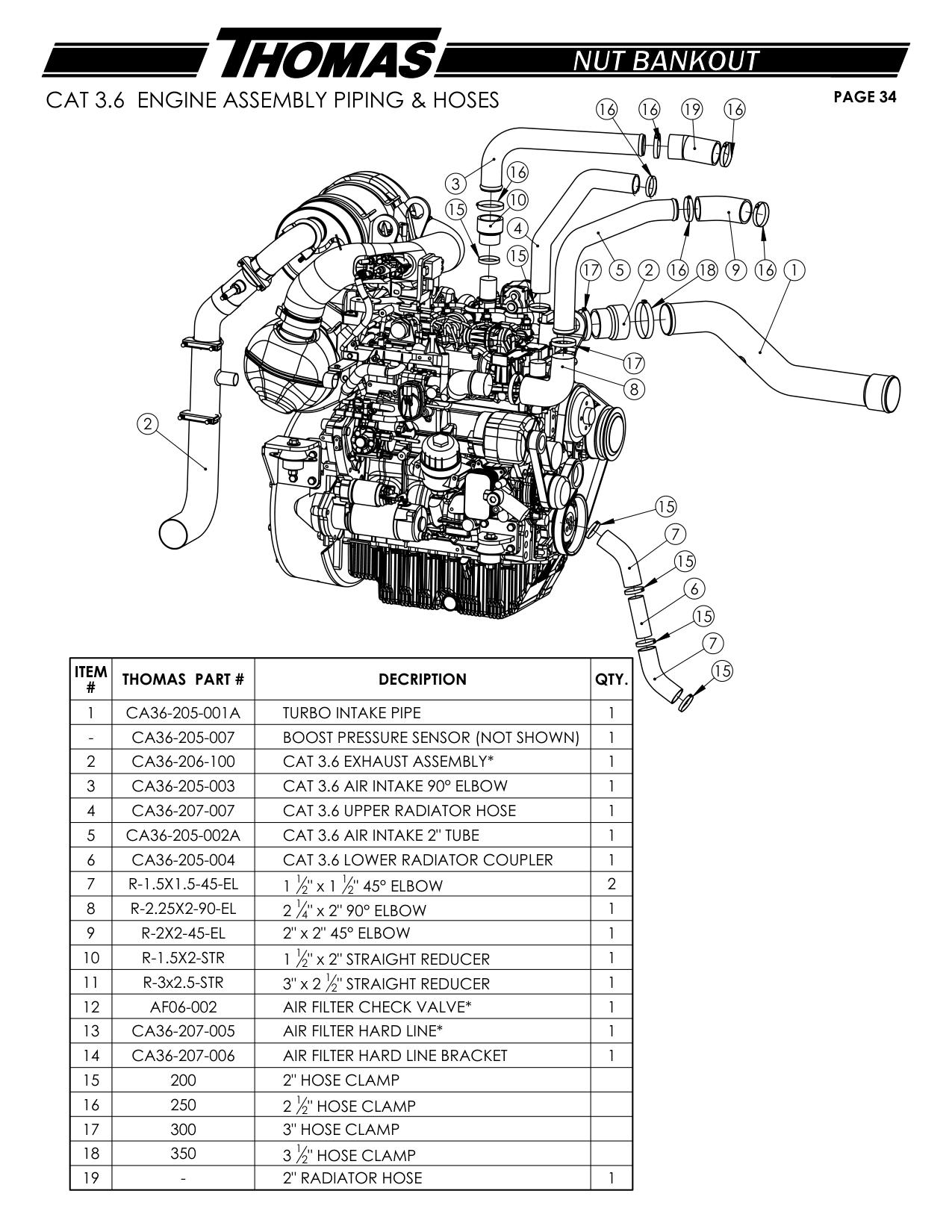

Diagram · Thomas Thomas Nut Bankout (2023)
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| - | CA36-205-007 | BOOST PRESSURE SENSOR (NOT SHOWN) | 1 |
| 1 | CA36-205-001A | TURBO INTAKE PIPE | 1 |
| 2 | CA36-206-100 | CAT 3.6 EXHAUST ASSEMBLY* | 1 |
| 3 | CA36-205-003 | CAT 3.6 AIR INTAKE 90° ELBOW | 1 |
| 4 | CA36-207-007 | CAT 3.6 UPPER RADIATOR HOSE | 1 |
| 5 | CA36-205-002A | CAT 3.6 AIR INTAKE 2" TUBE | 1 |
| 6 | CA36-205-004 | CAT 3.6 LOWER RADIATOR COUPLER | 1 |
| 7 | R-1.5X1.5-45-EL | 1 2" x 1 2" 45° ELBOW | 2 |
| 8 | R-2.25X2-90-EL | 2 4" x 2" 90° ELBOW | 1 |
| 9 | R-2X2-45-EL | 2" x 2" 45° ELBOW | 1 |
| 10 | R-1.5X2-STR | 1 2" x 2" STRAIGHT REDUCER | 1 |
| 12 | AF06-002 | AIR FILTER CHECK VALVE* | 1 |
| 13 | CA36-207-005 | AIR FILTER HARD LINE* | 1 |
| 14 | CA36-207-006 | AIR FILTER HARD LINE BRACKET | 1 |
