- C45-401-003 Engine Position Sensor · Thomas Thomas Nut Bankout (2023)

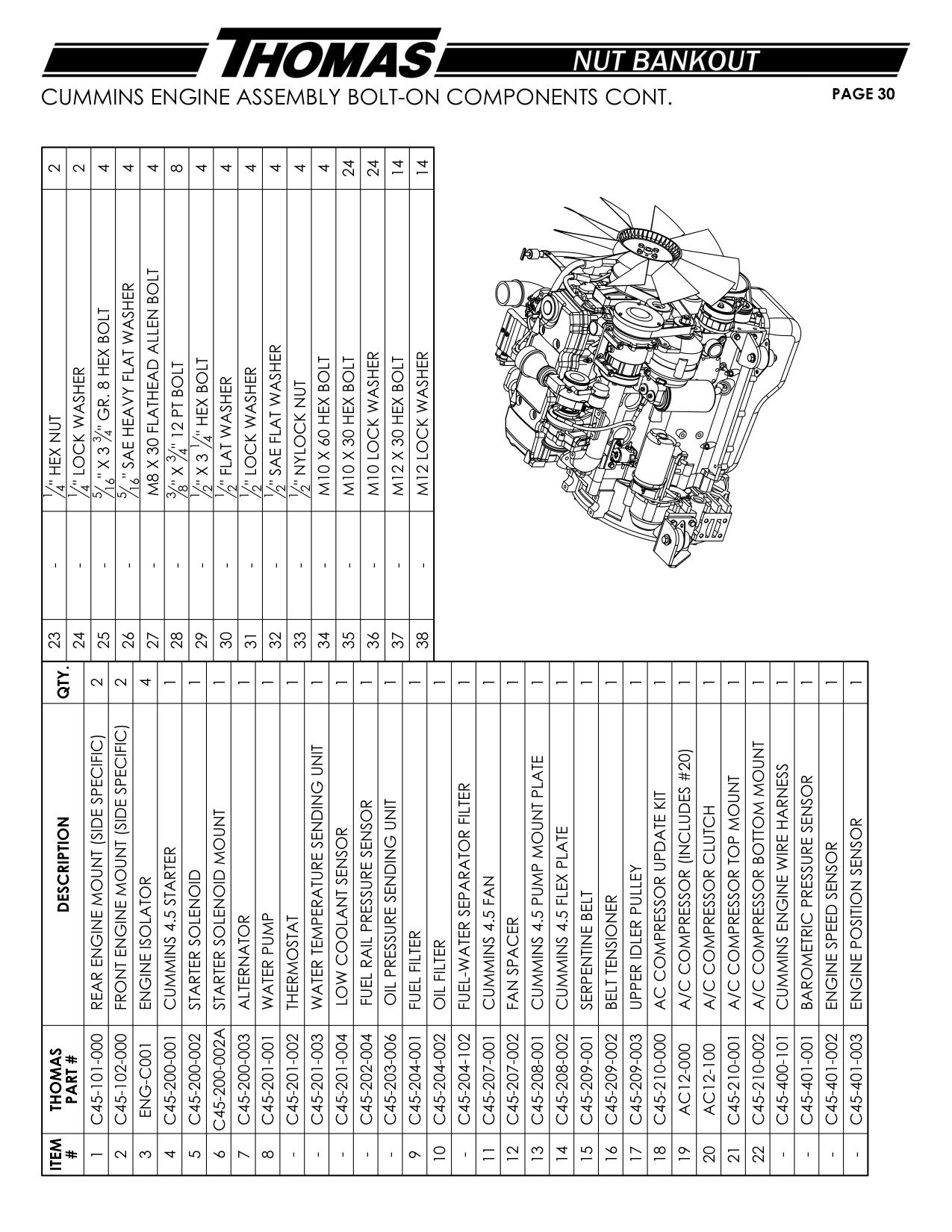

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| - | C45-201-002 | THERMOSTAT | 1 |
| - | C45-201-003 | WATER TEMPERATURE SENDING UNIT 1 34 - M10 X 60 HEX BOLT | 4 |
| - | C45-201-004 | LOW COOLANT SENSOR 1 35 - M10 X 30 HEX BOLT | 24 |
| - | C45-202-004 | FUEL RAIL PRESSURE SENSOR 1 36 - M10 LOCK WASHER | 24 |
| - | C45-203-006 | OIL PRESSURE SENDING UNIT 1 37 - M12 X 30 HEX BOLT | 14 |
| - | C45-204-102 | FUEL-WATER SEPARATOR FILTER | 1 |
| - | C45-400-101 | CUMMINS ENGINE WIRE HARNESS | 1 |
| - | C45-401-001 | BAROMETRIC PRESSURE SENSOR | 1 |
| - | C45-401-002 | ENGINE SPEED SENSOR | 1 |
| - | C45-401-003 | ENGINE POSITION SENSOR | 1 |
| 1 | C45-101-000 | REAR ENGINE MOUNT (SIDE SPECIFIC) 2 | 5 |
| 2 | C45-102-000 | FRONT ENGINE MOUNT (SIDE SPECIFIC) | 2 |
| 3 | ENG-C001 | ENGINE ISOLATOR 4 27 - M8 X 30 FLATHEAD ALLEN BOLT | 4 |
| 4 | C45-200-001 | CUMMINS 4.5 STARTER 1 | 3 |
| 5 | C45-200-002 | STARTER SOLENOID 1 | 1 |
| 6 | C45-200-002A | STARTER SOLENOID MOUNT | 1 |
| 7 | C45-200-003 | ALTERNATOR | 1 |
| 8 | C45-201-001 | WATER PUMP | 1 |
| 9 | C45-204-001 | FUEL FILTER 1 38 - M12 LOCK WASHER | 14 |
| 10 | C45-204-002 | OIL FILTER | 1 |
| 11 | C45-207-001 | CUMMINS 4.5 FAN | 1 |
| 12 | C45-207-002 | FAN SPACER | 1 |
| 13 | C45-208-001 | CUMMINS 4.5 PUMP MOUNT PLATE | 1 |
| 14 | C45-208-002 | CUMMINS 4.5 FLEX PLATE | 1 |
| 15 | C45-209-001 | SERPENTINE BELT | 1 |
| 16 | C45-209-002 | BELT TENSIONER | 1 |
| 17 | C45-209-003 | UPPER IDLER PULLEY | 1 |
| 18 | C45-210-000 | AC COMPRESSOR UPDATE KIT | 1 |
| 19 | AC12-000 | A/C COMPRESSOR (INCLUDES #20) | 1 |
| 20 | AC12-100 | A/C COMPRESSOR CLUTCH | 1 |
| 21 | C45-210-001 | A/C COMPRESSOR TOP MOUNT | 1 |
| 22 | C45-210-002 | A/C COMPRESSOR BOTTOM MOUNT | 1 |
