Chassis Components Breakdown · Thomas Thomas Nut Bankout (2023)

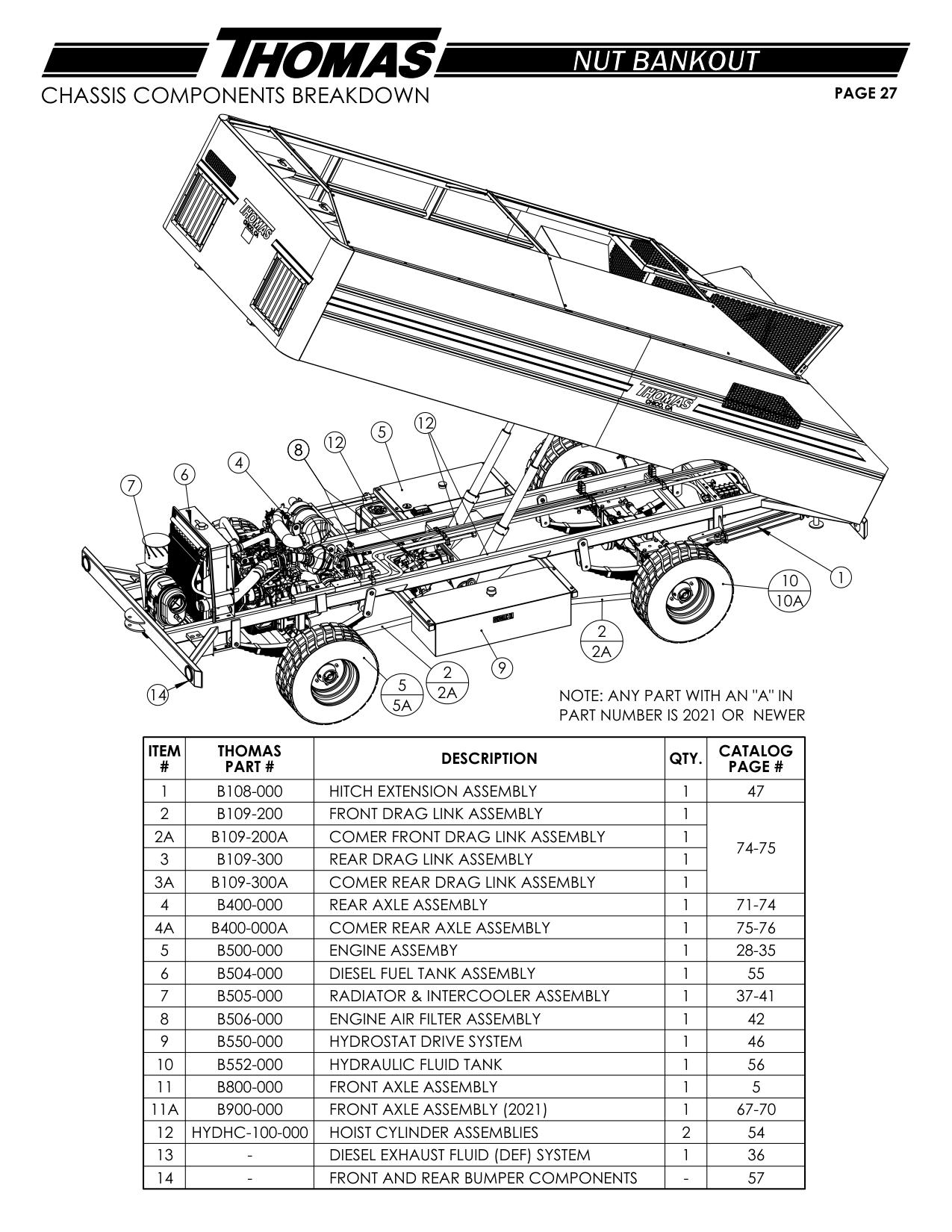

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | B108-000 | HITCH EXTENSION ASSEMBLY | 1 |
| 2 | B109-200 | FRONT DRAG LINK ASSEMBLY | 1 |
| 2A | B109-200A | COMER FRONT DRAG LINK ASSEMBLY | 1 |
| 3 | B109-300 | REAR DRAG LINK ASSEMBLY | 1 |
| 3A | B109-300A | COMER REAR DRAG LINK ASSEMBLY | 1 |
| 4 | B400-000 | REAR AXLE ASSEMBLY 1 71-74 | |
| 4A | B400-000A | COMER REAR AXLE ASSEMBLY 1 75-76 | |
| 5 | B500-000 | ENGINE ASSEMBY 1 28-35 | |
| 6 | B504-000 | DIESEL FUEL TANK ASSEMBLY | 1 |
| 7 | B505-000 | RADIATOR & INTERCOOLER ASSEMBLY 1 37-41 | |
| 8 | B506-000 | ENGINE AIR FILTER ASSEMBLY | 1 |
| 9 | B550-000 | HYDROSTAT DRIVE SYSTEM | 1 |
| 10 | B552-000 | HYDRAULIC FLUID TANK | 1 |
| 11 | B800-000 | FRONT AXLE ASSEMBLY | 1 |
| 11A | B900-000 | FRONT AXLE ASSEMBLY (2021) 1 67-70 | |
| 12 | HYDHC-100-000 | HOIST CYLINDER ASSEMBLIES | 2 |
