Auger Motor Assembly Hoses And Fittings · Thomas Thomas Nut Bankout (2023)

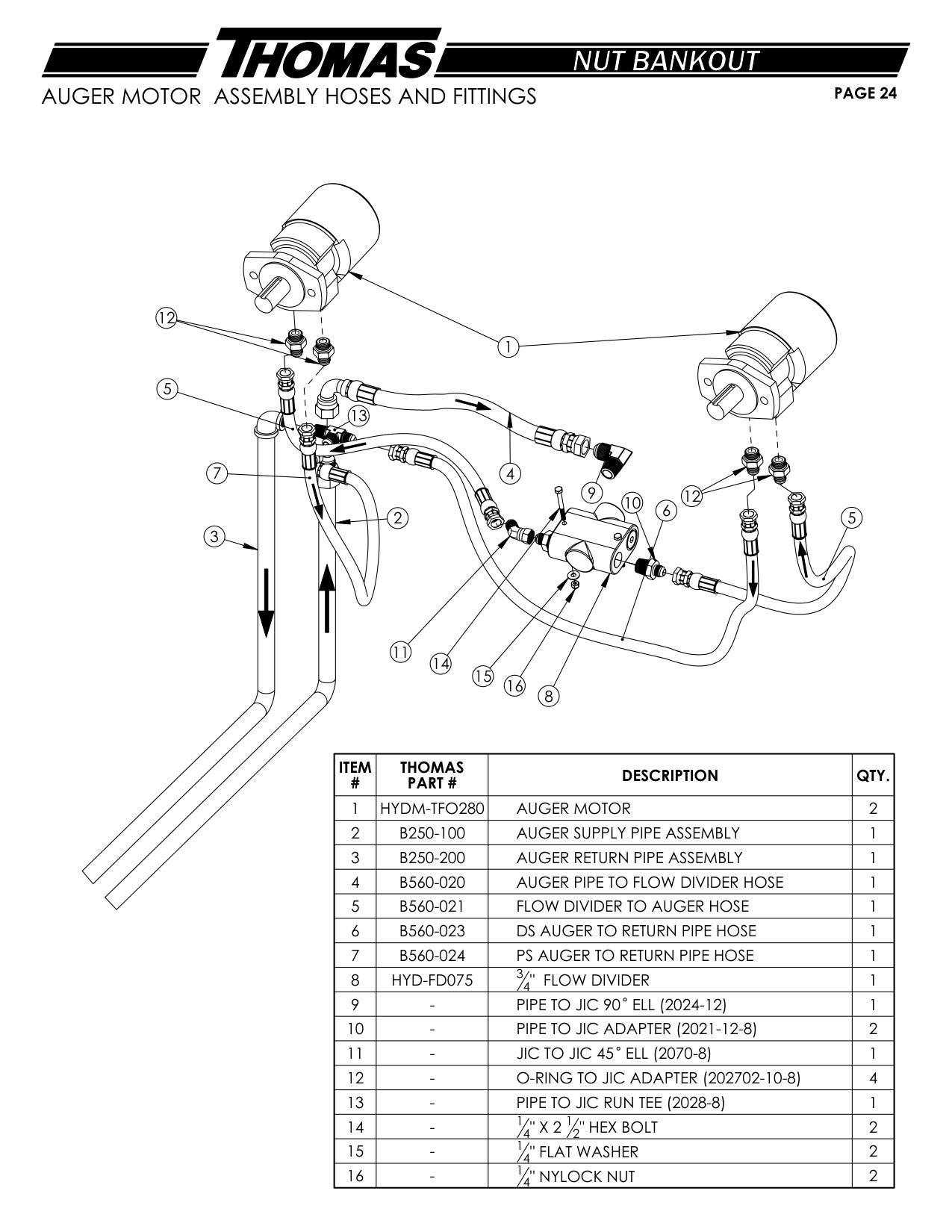

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | HYDM-TFO280 | AUGER MOTOR | 2 |
| 2 | B250-100 | AUGER SUPPLY PIPE ASSEMBLY | 1 |
| 3 | B250-200 | AUGER RETURN PIPE ASSEMBLY | 1 |
| 4 | B560-020 | AUGER PIPE TO FLOW DIVIDER HOSE | 1 |
| 5 | B560-021 | FLOW DIVIDER TO AUGER HOSE | 1 |
| 6 | B560-023 | DS AUGER TO RETURN PIPE HOSE | 1 |
| 7 | B560-024 | PS AUGER TO RETURN PIPE HOSE | 1 |
| 8 | HYD-FD075 | 4" FLOW DIVIDER | 1 |
