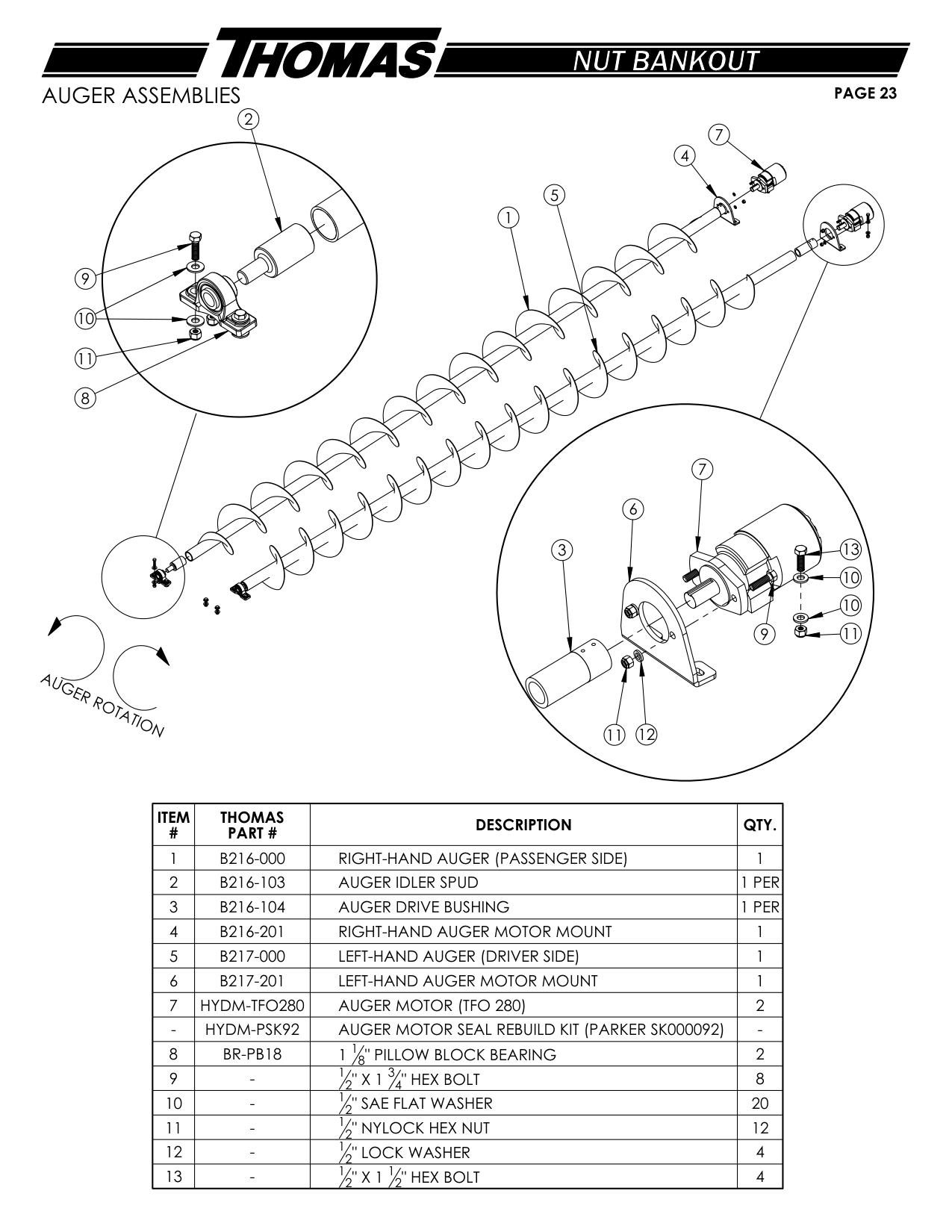

Auger Assemblies · Thomas Thomas Nut Bankout (2023)
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| - | HYDM-PSK92 | AUGER MOTOR SEAL REBUILD KIT (PARKER SK000092) | |
| 1 | B216-000 | RIGHT-HAND AUGER (PASSENGER SIDE) | 1 |
| 2 | B216-103 | AUGER IDLER SPUD 1 PER | |
| 3 | B216-104 | AUGER DRIVE BUSHING 1 PER | |
| 4 | B216-201 | RIGHT-HAND AUGER MOTOR MOUNT | 1 |
| 5 | B217-000 | LEFT-HAND AUGER (DRIVER SIDE) | 1 |
| 6 | B217-201 | LEFT-HAND AUGER MOTOR MOUNT | 1 |
| 7 | HYDM-TFO280 | AUGER MOTOR (TFO 280) | 2 |
| 8 | BR-PB18 | 1 18" PILLOW BLOCK BEARING | 2 |
