Engine Air Intake Snorkle Tube Assembly · Thomas Thomas Nut Bankout (2023)

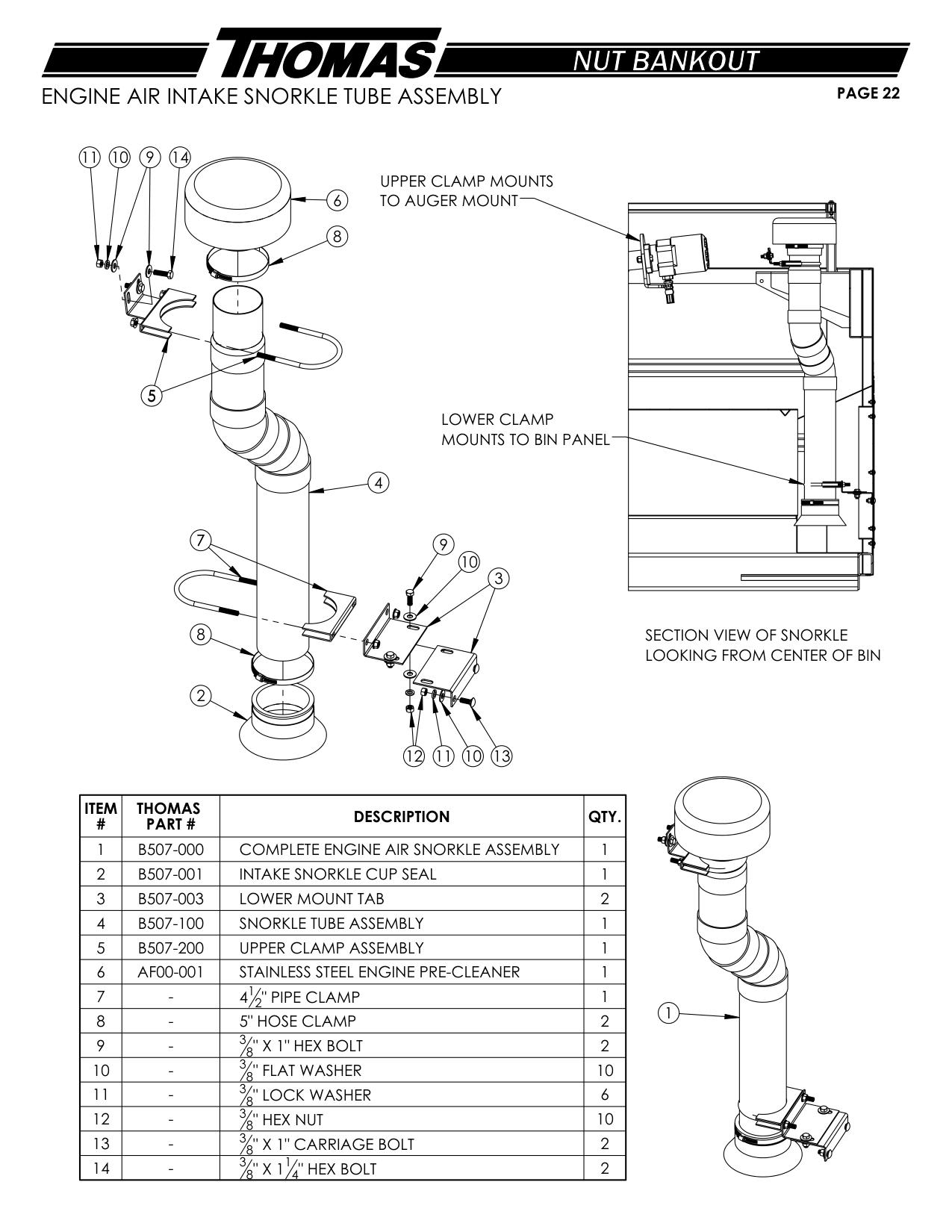

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | B507-000 | COMPLETE ENGINE AIR SNORKLE ASSEMBLY | 1 |
| 2 | B507-001 | INTAKE SNORKLE CUP SEAL | 1 |
| 3 | B507-003 | LOWER MOUNT TAB | 2 |
| 4 | B507-100 | SNORKLE TUBE ASSEMBLY | 1 |
| 5 | B507-200 | UPPER CLAMP ASSEMBLY | 1 |
| 6 | AF00-001 | STAINLESS STEEL ENGINE PRE-CLEANER | 1 |
