Bin Assembly Breakdown · Thomas Thomas Nut Bankout (2023)

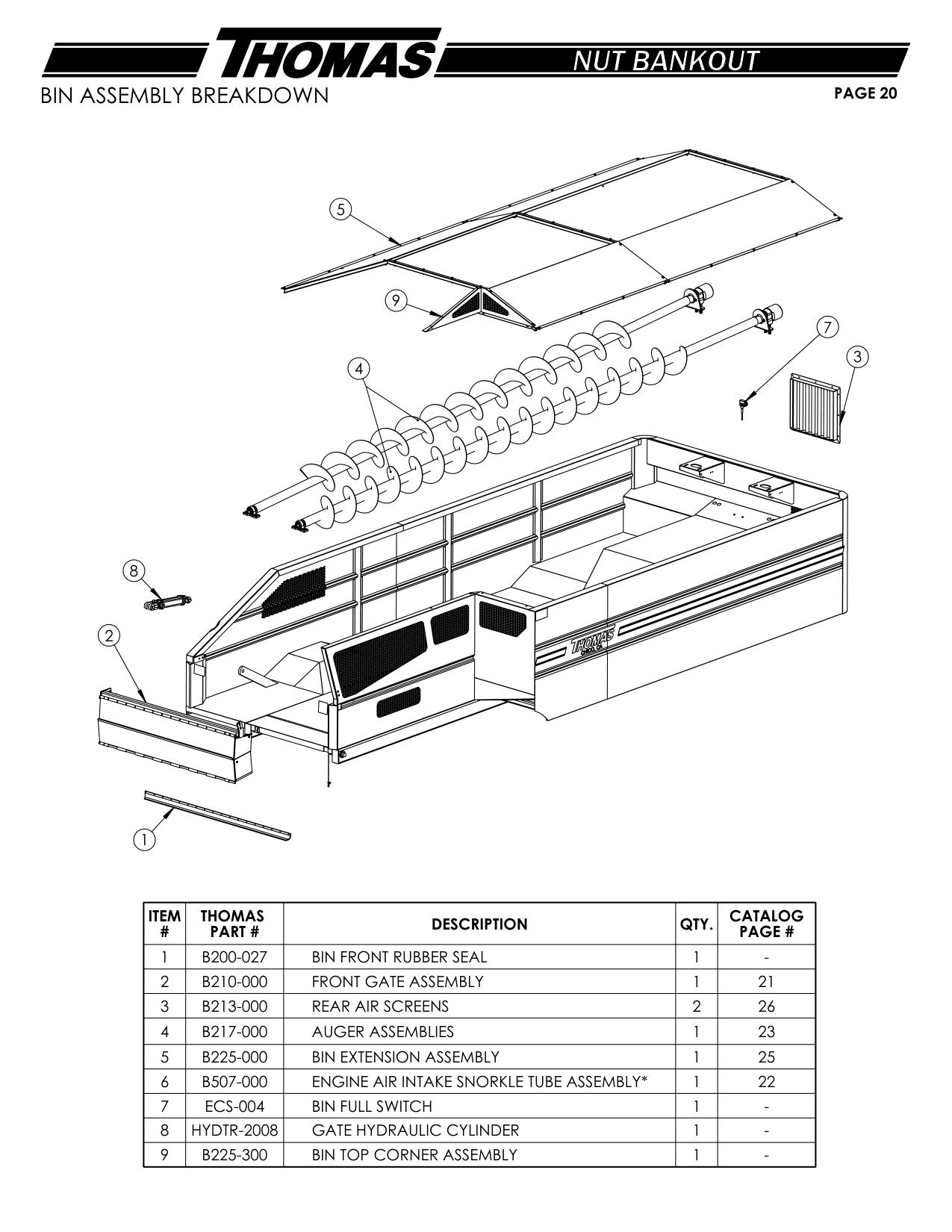

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | B200-027 | BIN FRONT RUBBER SEAL | 1 |
| 2 | B210-000 | FRONT GATE ASSEMBLY | 1 |
| 3 | B213-000 | REAR AIR SCREENS | 2 |
| 4 | B217-000 | AUGER ASSEMBLIES | 1 |
| 5 | B225-000 | BIN EXTENSION ASSEMBLY | 1 |
| 6 | B507-000 | ENGINE AIR INTAKE SNORKLE TUBE ASSEMBLY* | 1 |
| 7 | ECS-004 | BIN FULL SWITCH | 1 |
| 8 | HYDTR-2008 | GATE HYDRAULIC CYLINDER | 1 |
| 9 | B225-300 | BIN TOP CORNER ASSEMBLY | 1 |
