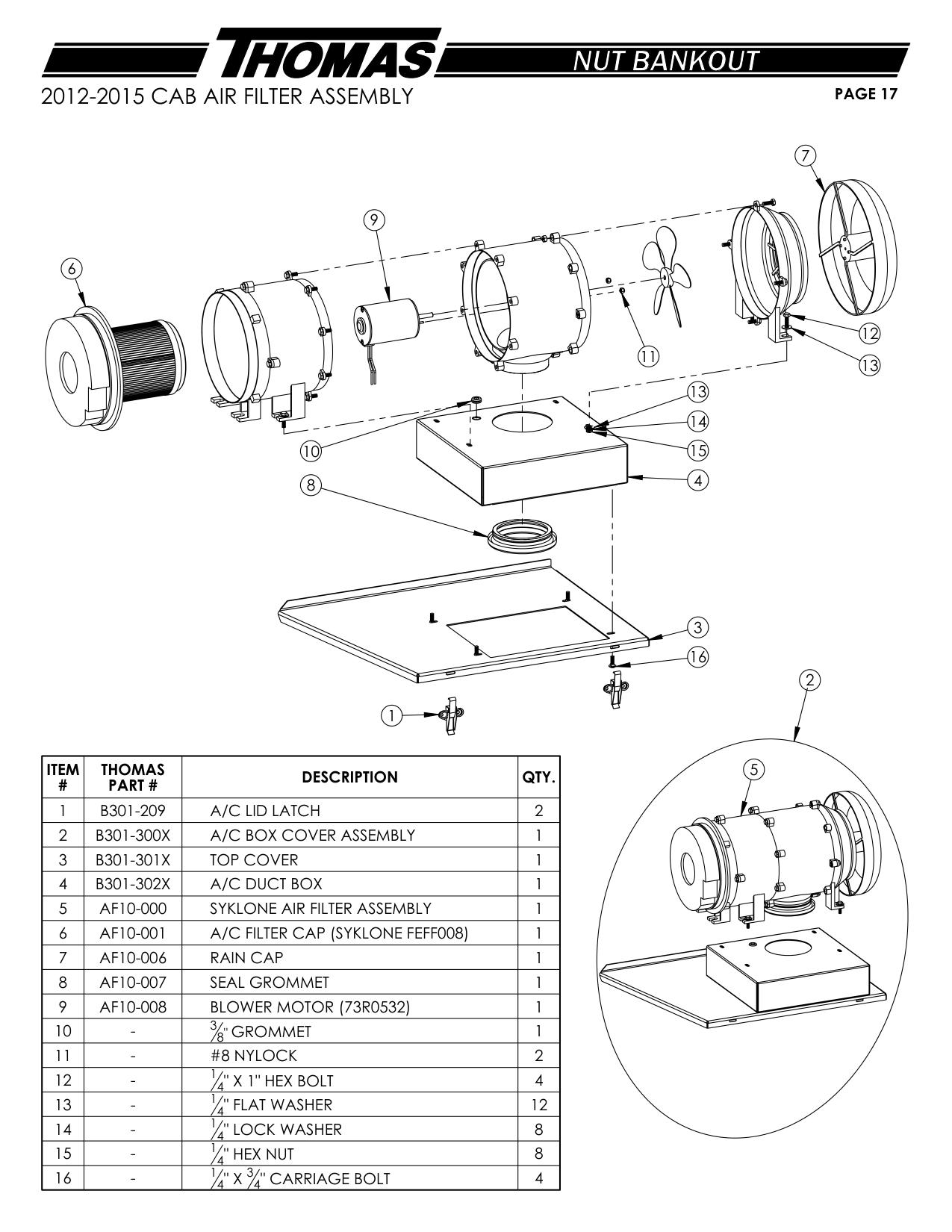

2012-2015 Cab Air Filter Assembly · Thomas Thomas Nut Bankout (2023)
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | B301-209 | A/C LID LATCH | 2 |
| 2 | B301-300X | A/C BOX COVER ASSEMBLY | 1 |
| 3 | B301-301X | TOP COVER | 1 |
| 4 | B301-302X | A/C DUCT BOX | 1 |
| 5 | AF10-000 | SYKLONE AIR FILTER ASSEMBLY | 1 |
| 6 | AF10-001 | A/C FILTER CAP (SYKLONE FEFF008) | 1 |
| 7 | AF10-006 | RAIN CAP | 1 |
| 8 | AF10-007 | SEAL GROMMET | 1 |
| 9 | AF10-008 | BLOWER MOTOR (73R0532) | 1 |
