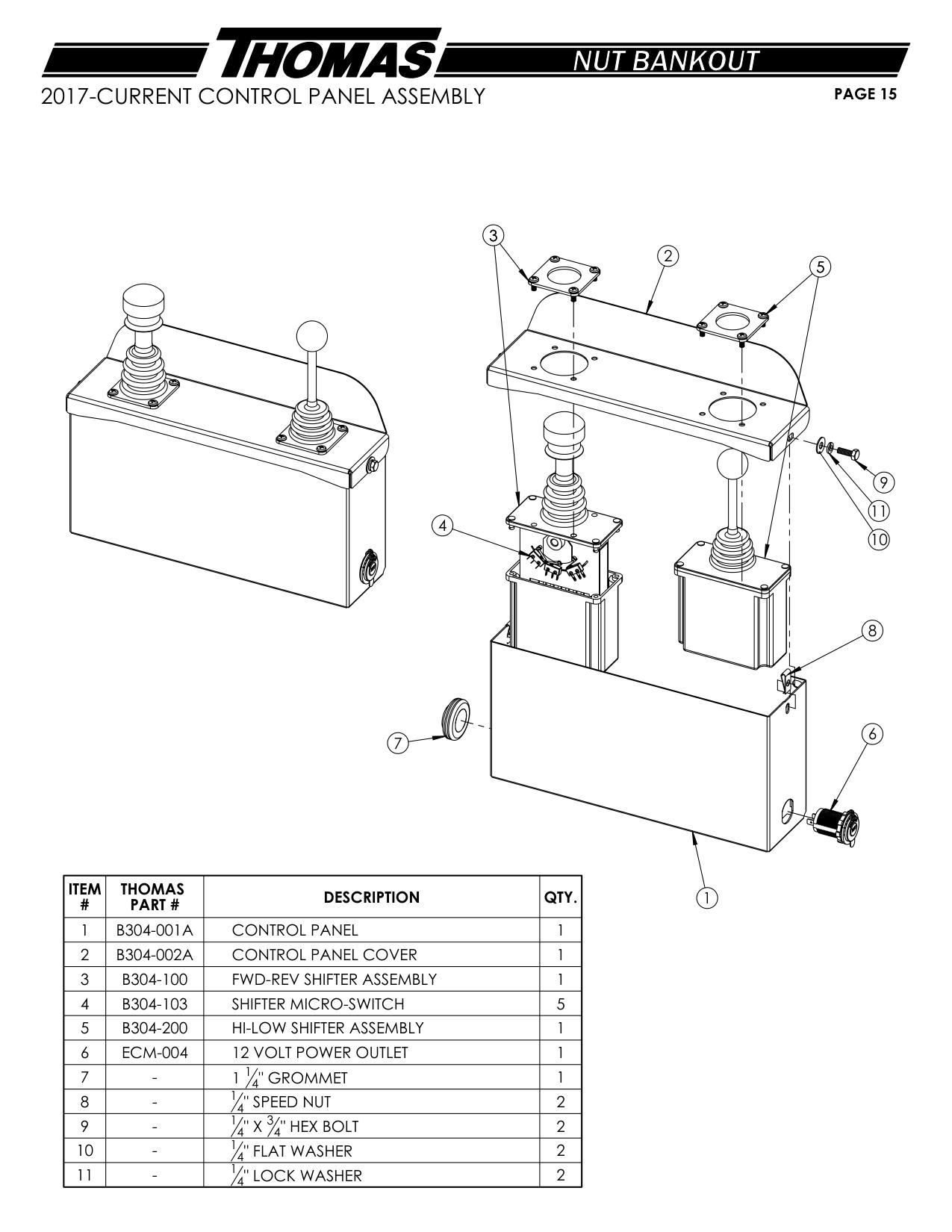

2017-Current Control Panel Assembly · Thomas Thomas Nut Bankout (2023)
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | B304-001A | CONTROL PANEL | 1 |
| 2 | B304-002A | CONTROL PANEL COVER | 1 |
| 3 | B304-100 | FWD-REV SHIFTER ASSEMBLY | 1 |
| 4 | B304-103 | SHIFTER MICRO-SWITCH | 5 |
| 5 | B304-200 | HI-LOW SHIFTER ASSEMBLY | 1 |
| 6 | ECM-004 | 12 VOLT POWER OUTLET | 1 |
