2017-Current Air Conditioning Unit · Thomas Thomas Nut Bankout (2023)

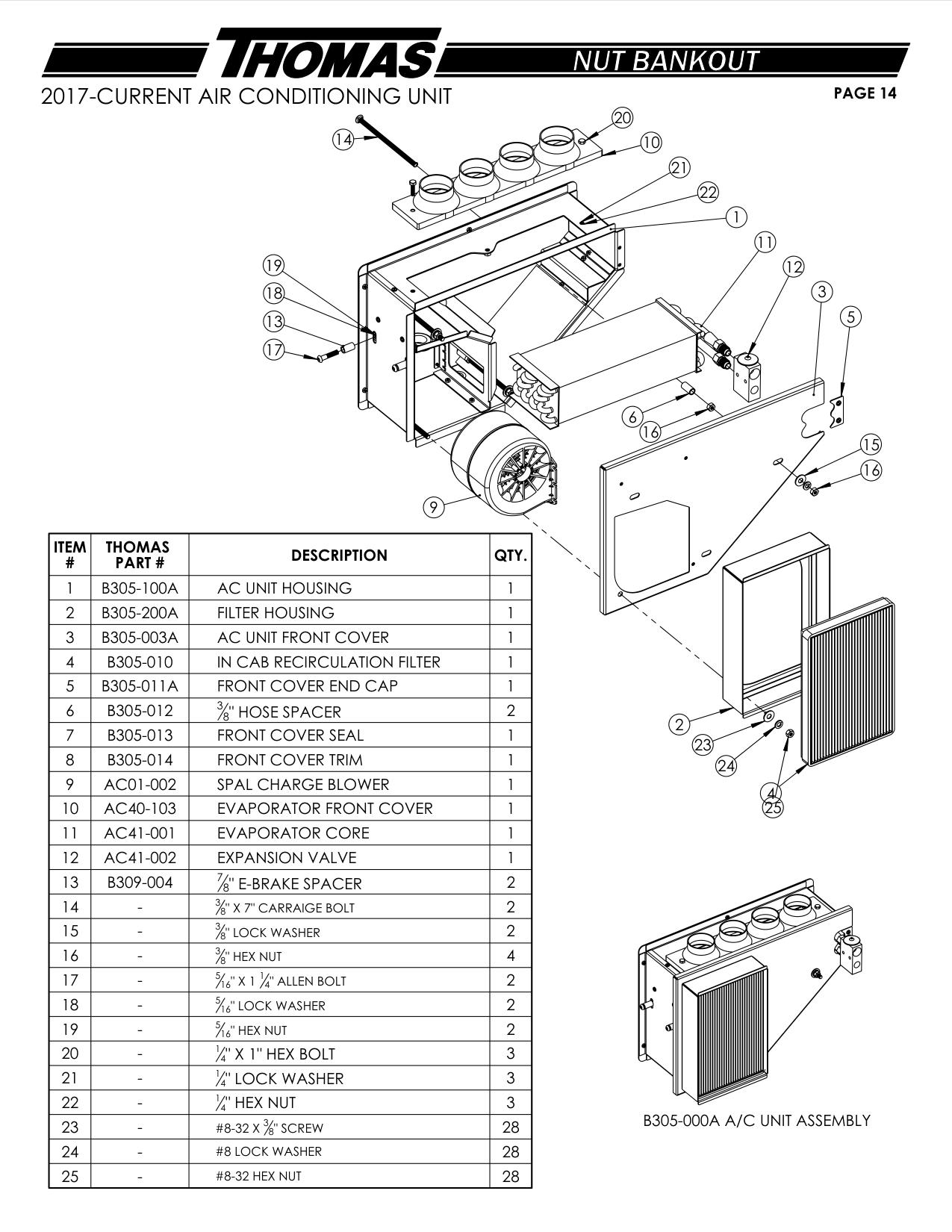

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | B305-100A | AC UNIT HOUSING | 1 |
| 2 | B305-200A | FILTER HOUSING | 1 |
| 3 | B305-003A | AC UNIT FRONT COVER | 1 |
| 4 | B305-010 | IN CAB RECIRCULATION FILTER | 1 |
| 5 | B305-011A | FRONT COVER END CAP | 1 |
| 6 | B305-012 | 8" HOSE SPACER | 2 |
| 7 | B305-013 | FRONT COVER SEAL | 1 |
| 8 | B305-014 | FRONT COVER TRIM | 1 |
| 9 | AC01-002 | SPAL CHARGE BLOWER | 1 |
| 10 | AC40-103 | EVAPORATOR FRONT COVER | 1 |
| 11 | AC41-001 | EVAPORATOR CORE | 1 |
| 12 | AC41-002 | EXPANSION VALVE | 1 |
| 13 | B309-004 | 8" E-BRAKE SPACER | 2 |
