Old Style Brake Configuration · Thomas Thomas Nut Bankout (2023)

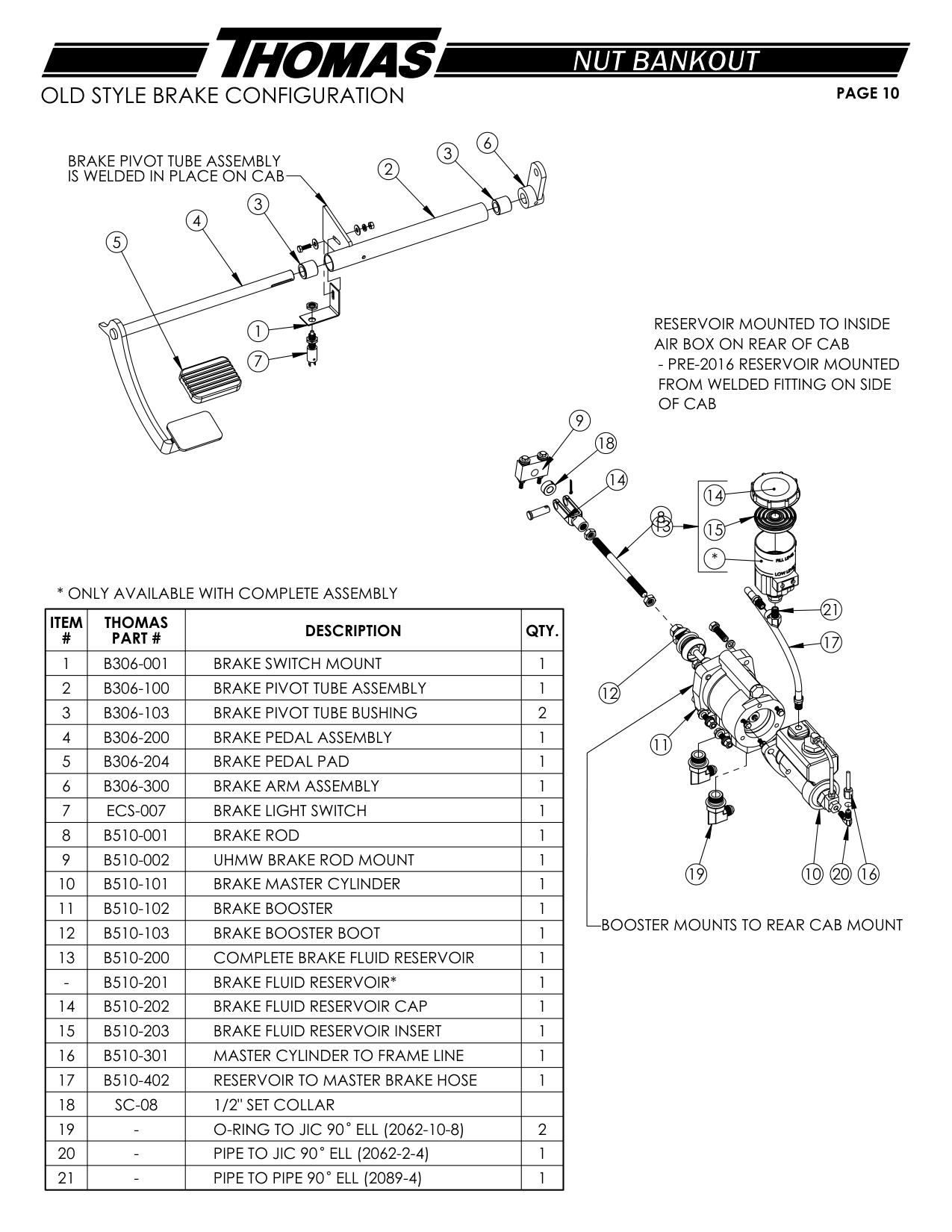

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| - | B510-201 | BRAKE FLUID RESERVOIR* | 1 |
| 1 | B306-001 | BRAKE SWITCH MOUNT | 1 |
| 2 | B306-100 | BRAKE PIVOT TUBE ASSEMBLY | 1 |
| 3 | B306-103 | BRAKE PIVOT TUBE BUSHING | 2 |
| 4 | B306-200 | BRAKE PEDAL ASSEMBLY | 1 |
| 5 | B306-204 | BRAKE PEDAL PAD | 1 |
| 6 | B306-300 | BRAKE ARM ASSEMBLY | 1 |
| 7 | ECS-007 | BRAKE LIGHT SWITCH | 1 |
| 8 | B510-001 | BRAKE ROD | 1 |
| 9 | B510-002 | UHMW BRAKE ROD MOUNT | 1 |
| 10 | B510-101 | BRAKE MASTER CYLINDER | 1 |
| 11 | B510-102 | BRAKE BOOSTER | 1 |
| 12 | B510-103 | BRAKE BOOSTER BOOT | 1 |
| 13 | B510-200 | COMPLETE BRAKE FLUID RESERVOIR | 1 |
| 14 | B510-202 | BRAKE FLUID RESERVOIR CAP | 1 |
| 15 | B510-203 | BRAKE FLUID RESERVOIR INSERT | 1 |
| 16 | B510-301 | MASTER CYLINDER TO FRAME LINE | 1 |
| 17 | B510-402 | RESERVOIR TO MASTER BRAKE HOSE | 1 |
| 18 | SC-08 | 1/2" SET COLLAR |
