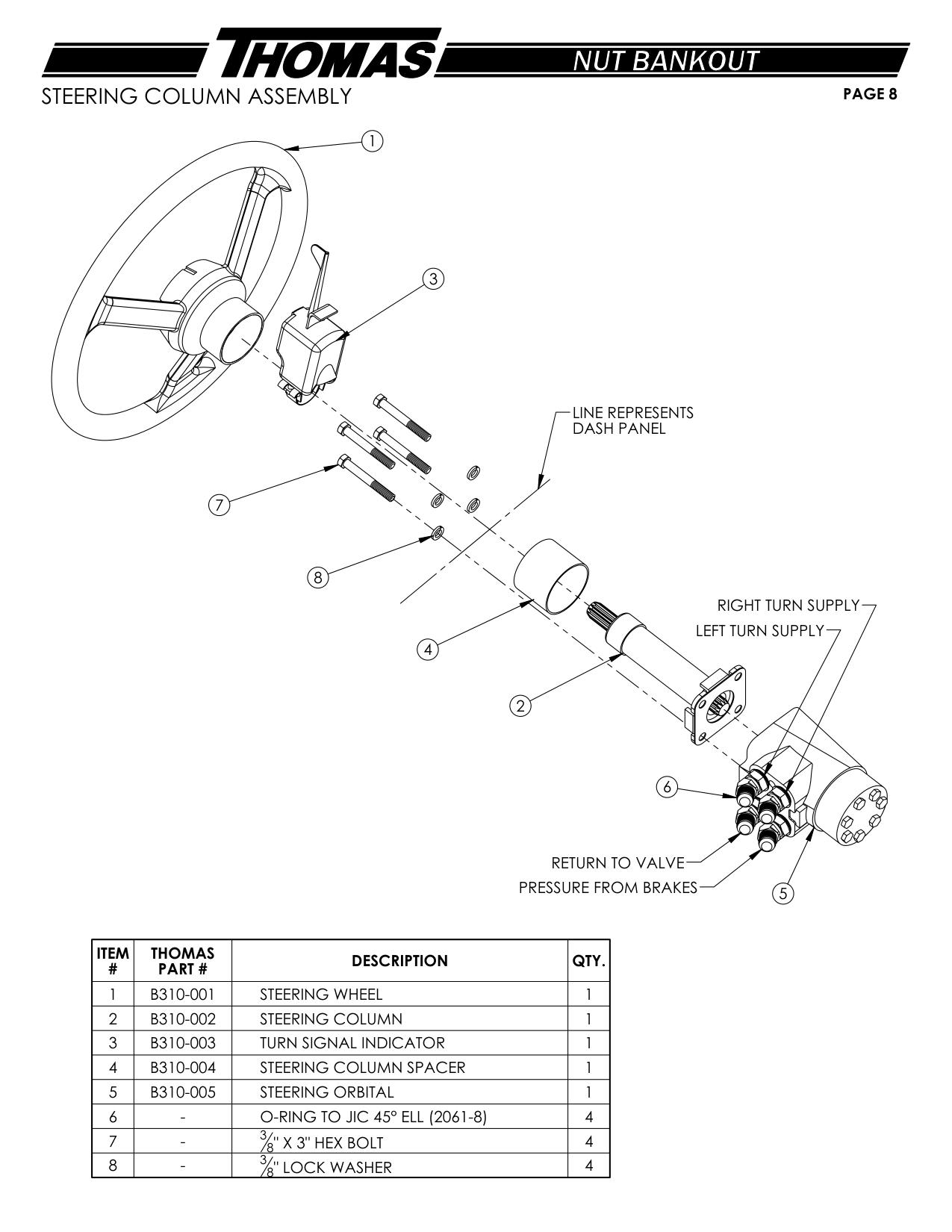

Steering Column Assembly · Thomas Thomas Nut Bankout (2023)
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | B310-001 | STEERING WHEEL | 1 |
| 2 | B310-002 | STEERING COLUMN | 1 |
| 3 | B310-003 | TURN SIGNAL INDICATOR | 1 |
| 4 | B310-004 | STEERING COLUMN SPACER | 1 |
| 5 | B310-005 | STEERING ORBITAL | 1 |
