Old Style Dash Panel Controls & Components · Thomas Thomas Nut Bankout (2023)

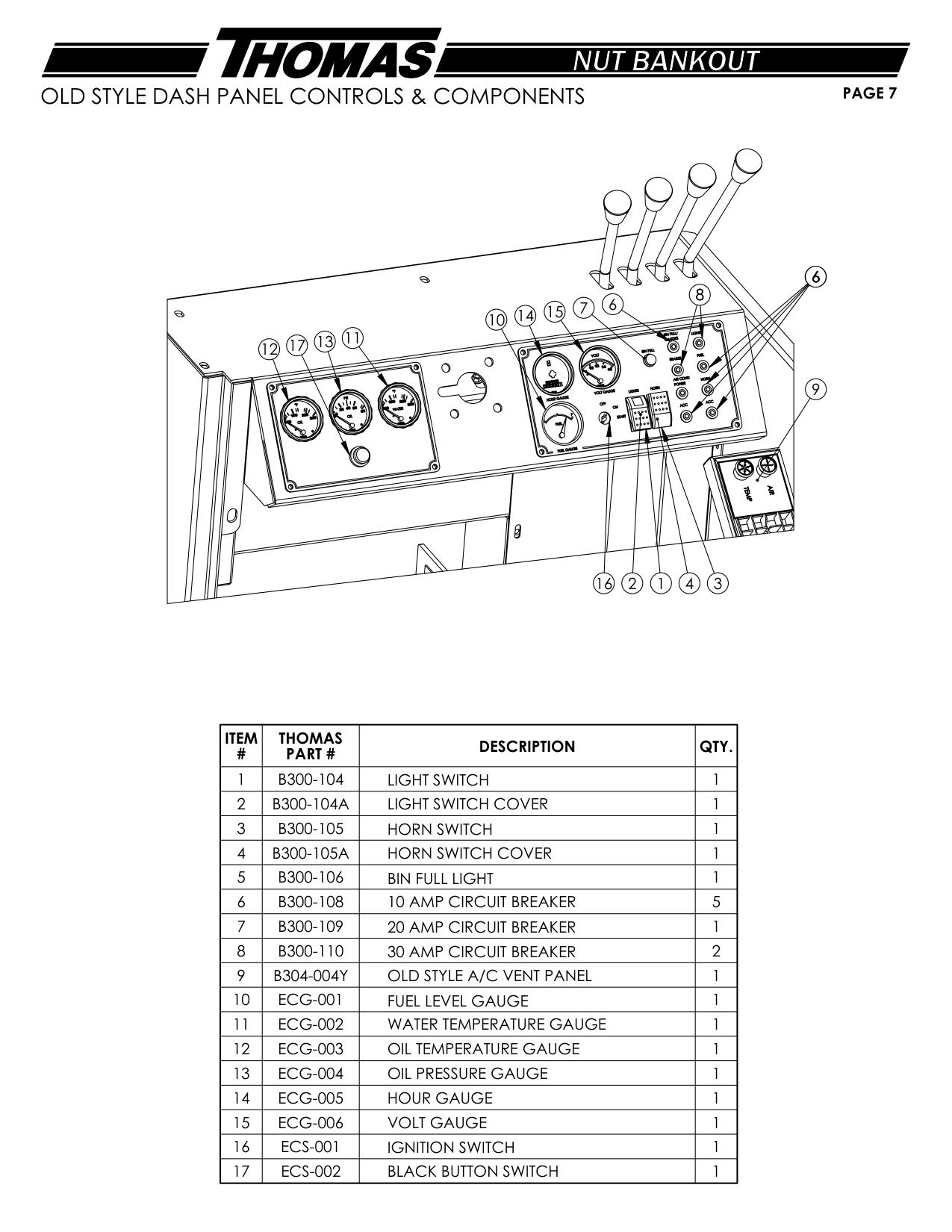

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | B300-104 | LIGHT SWITCH | 1 |
| 2 | B300-104A | LIGHT SWITCH COVER | 1 |
| 3 | B300-105 | HORN SWITCH | 1 |
| 4 | B300-105A | HORN SWITCH COVER | 1 |
| 5 | B300-106 | BIN FULL LIGHT | 1 |
| 6 | B300-108 | 10 AMP CIRCUIT BREAKER | 5 |
| 7 | B300-109 | 20 AMP CIRCUIT BREAKER | 1 |
| 8 | B300-110 | 30 AMP CIRCUIT BREAKER | 2 |
| 9 | B304-004Y | OLD STYLE A/C VENT PANEL | 1 |
| 10 | ECG-001 | FUEL LEVEL GAUGE | 1 |
| 11 | ECG-002 | WATER TEMPERATURE GAUGE | 1 |
| 12 | ECG-003 | OIL TEMPERATURE GAUGE | 1 |
| 13 | ECG-004 | OIL PRESSURE GAUGE | 1 |
| 14 | ECG-005 | HOUR GAUGE | 1 |
| 15 | ECG-006 | VOLT GAUGE | 1 |
| 16 | ECS-001 | IGNITION SWITCH | 1 |
| 17 | ECS-002 | BLACK BUTTON SWITCH | 1 |
