Cab Top Assembly · Thomas Thomas Nut Bankout (2023)

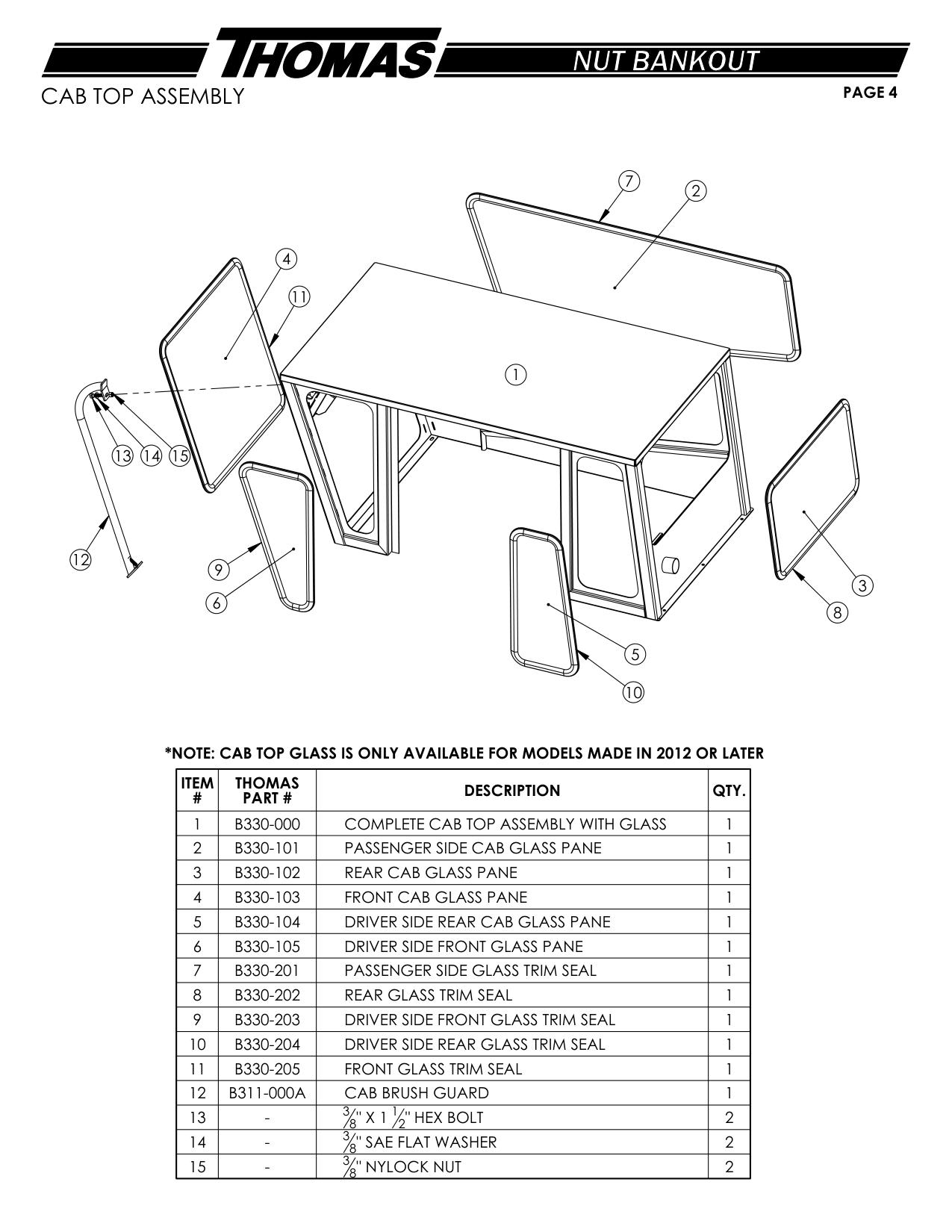

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | B330-000 | COMPLETE CAB TOP ASSEMBLY WITH GLASS | 1 |
| 2 | B330-101 | PASSENGER SIDE CAB GLASS PANE | 1 |
| 3 | B330-102 | REAR CAB GLASS PANE | 1 |
| 4 | B330-103 | FRONT CAB GLASS PANE | 1 |
| 5 | B330-104 | DRIVER SIDE REAR CAB GLASS PANE | 1 |
| 6 | B330-105 | DRIVER SIDE FRONT GLASS PANE | 1 |
| 7 | B330-201 | PASSENGER SIDE GLASS TRIM SEAL | 1 |
| 8 | B330-202 | REAR GLASS TRIM SEAL | 1 |
| 9 | B330-203 | DRIVER SIDE FRONT GLASS TRIM SEAL | 1 |
| 10 | B330-204 | DRIVER SIDE REAR GLASS TRIM SEAL | 1 |
| 11 | B330-205 | FRONT GLASS TRIM SEAL | 1 |
| 12 | B311-000A | CAB BRUSH GUARD | 1 |
