Tie Rods And Drag Links · Thomas Thomas Bankout

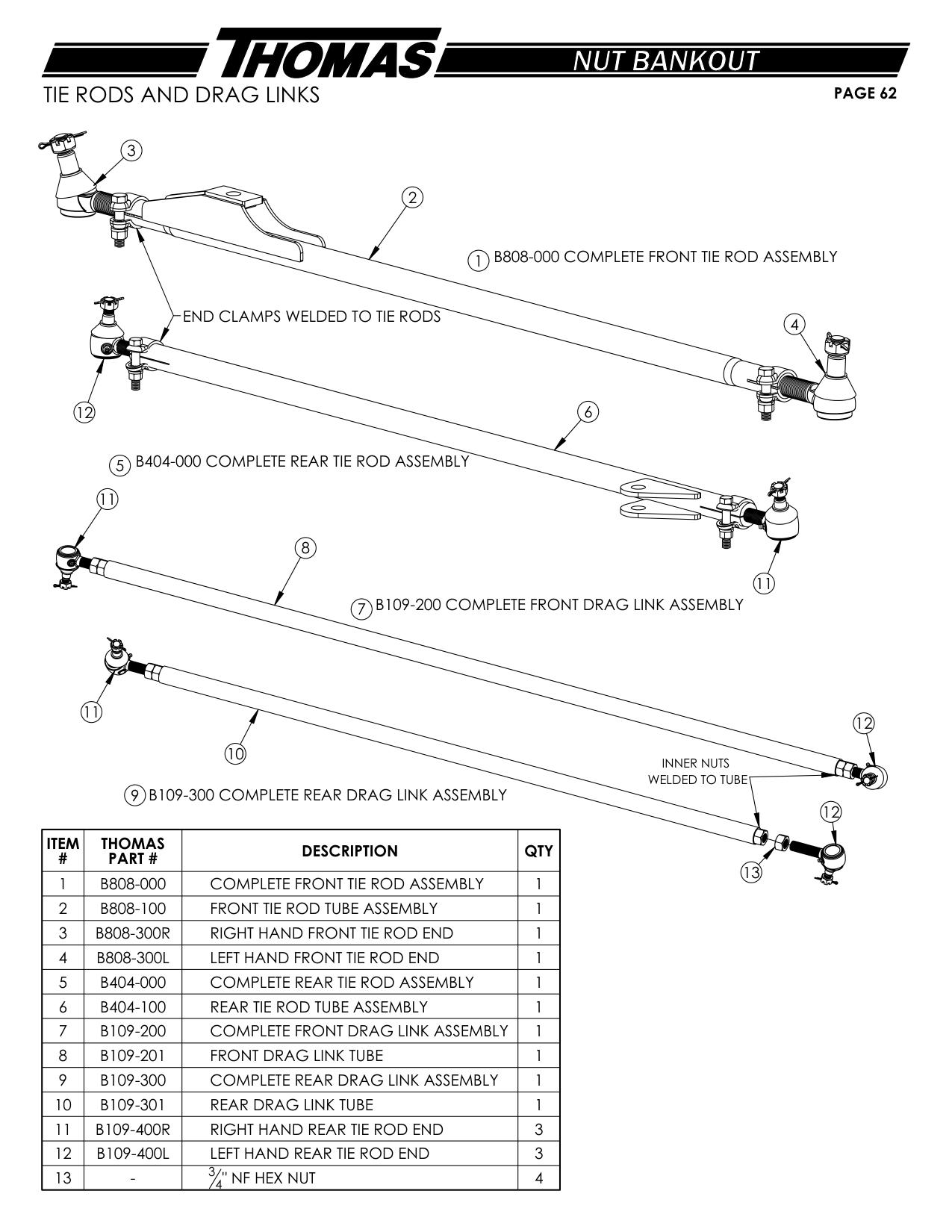

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | B808-000 | COMPLETE FRONT TIE ROD ASSEMBLY | 1 |
| 2 | B808-100 | FRONT TIE ROD TUBE ASSEMBLY | 1 |
| 3 | B808-300R | RIGHT HAND FRONT TIE ROD END | 1 |
| 4 | B808-300L | LEFT HAND FRONT TIE ROD END | 1 |
| 5 | B404-000 | COMPLETE REAR TIE ROD ASSEMBLY | 1 |
| 6 | B404-100 | REAR TIE ROD TUBE ASSEMBLY | 1 |
| 7 | B109-200 | COMPLETE FRONT DRAG LINK ASSEMBLY | 1 |
| 8 | B109-201 | FRONT DRAG LINK TUBE | 1 |
| 9 | B109-300 | COMPLETE REAR DRAG LINK ASSEMBLY | |
| 9 | B109-300 | COMPLETE REAR DRAG LINK ASSEMBLY | 1 |
| 10 | B109-301 | REAR DRAG LINK TUBE | 1 |
| 11 | B109-400R | RIGHT HAND REAR TIE ROD END | 3 |
| 12 | B109-400L | LEFT HAND REAR TIE ROD END | 3 |
