Drag Link Pivot Assembly · Thomas Thomas Bankout

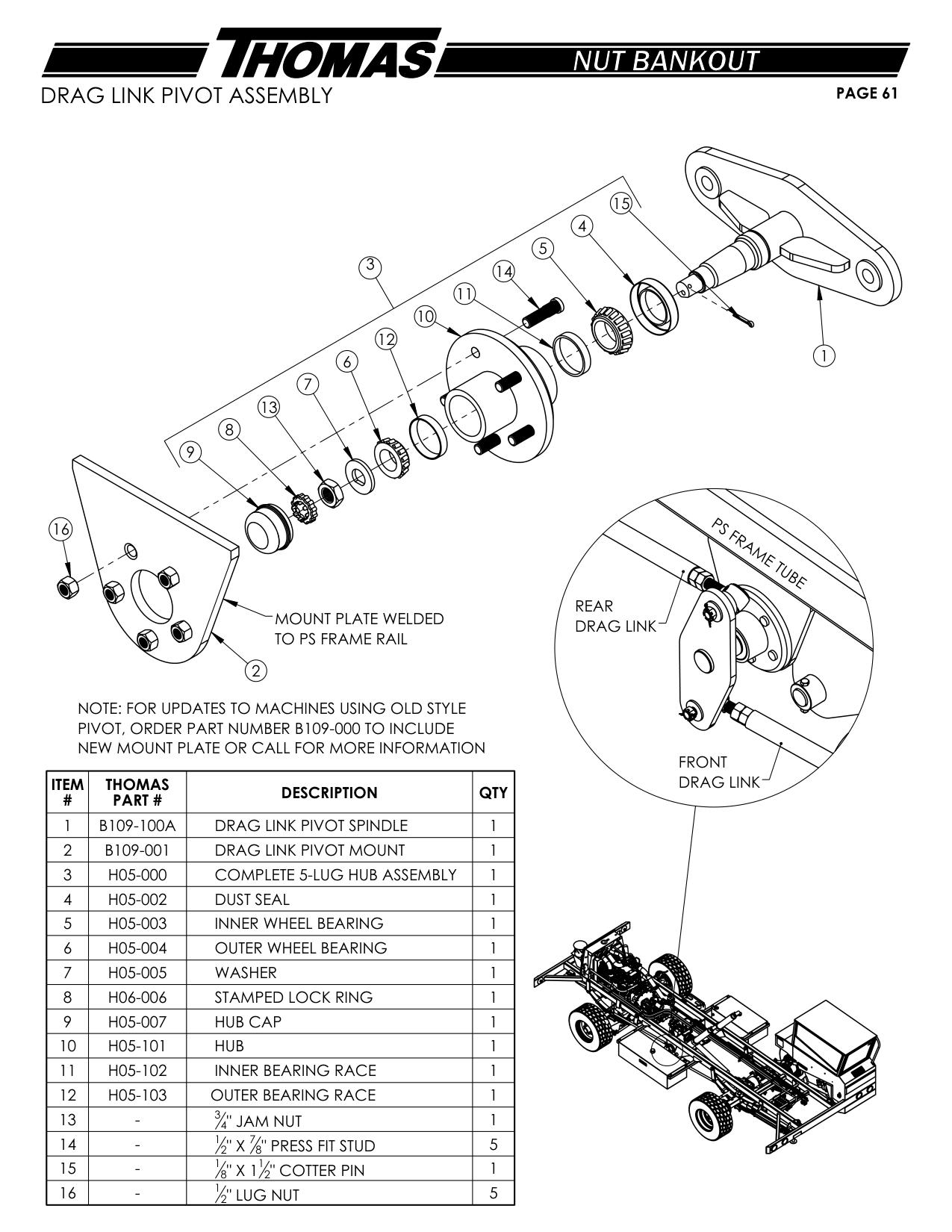

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | B109-100A | DRAG LINK PIVOT SPINDLE | 1 |
| 2 | B109-001 | DRAG LINK PIVOT MOUNT | 1 |
| 3 | H05-000 | COMPLETE 5-LUG HUB ASSEMBLY | 1 |
| 4 | H05-002 | DUST SEAL | 1 |
| 5 | H05-003 | INNER WHEEL BEARING | 1 |
| 6 | H05-004 | OUTER WHEEL BEARING | 1 |
| 7 | H05-005 | WASHER | 1 |
| 8 | H06-006 | STAMPED LOCK RING | 1 |
| 9 | H05-007 | HUB CAP | 1 |
| 10 | H05-101 | HUB | 1 |
| 11 | H05-102 | INNER BEARING RACE | 1 |
| 12 | H05-103 | OUTER BEARING RACE | 1 |
