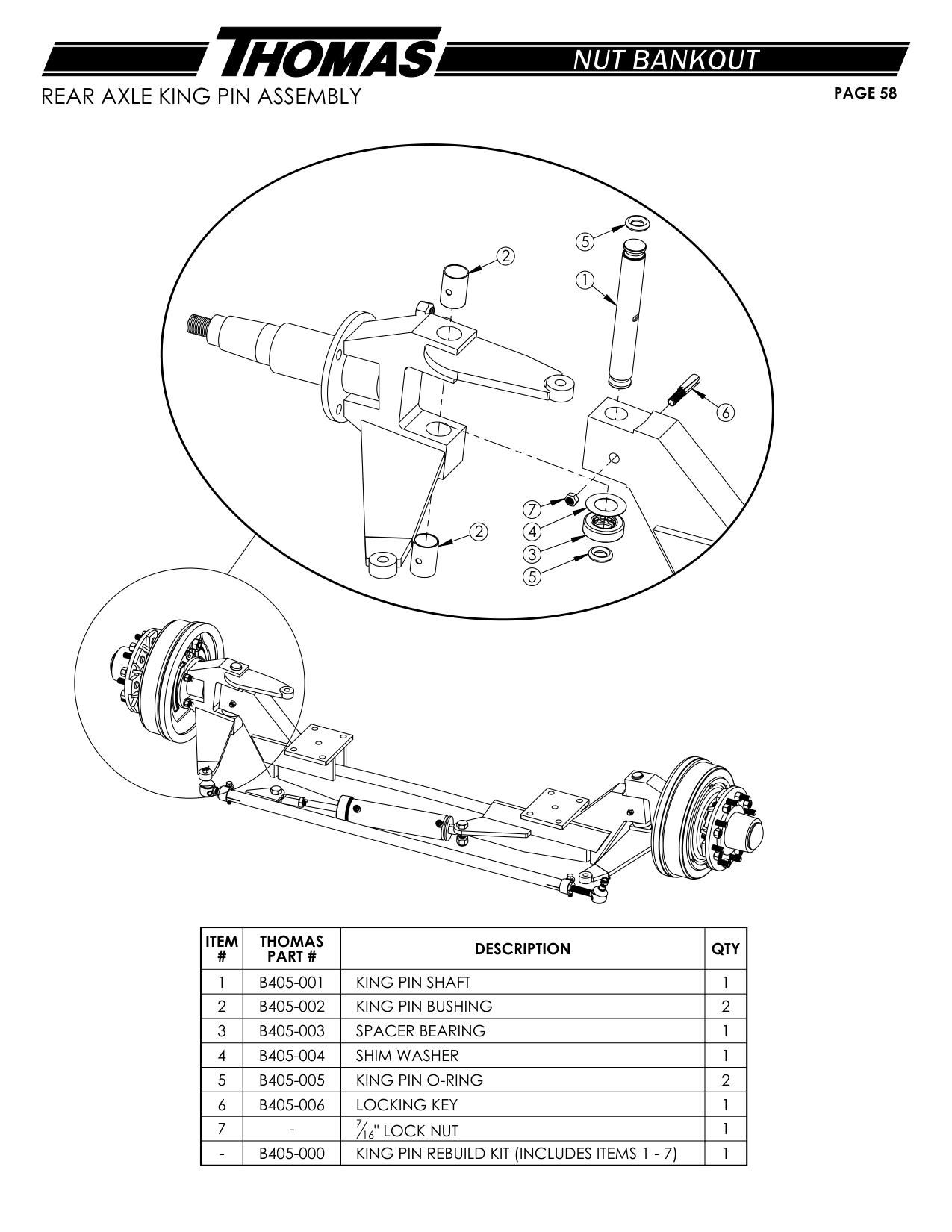

Rear Axle King Pin Assembly · Thomas Thomas Bankout
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| - | B405-000 | KING PIN REBUILD KIT (INCLUDES ITEMS 1 - 7) | 1 |
| 1 | B405-001 | KING PIN SHAFT | 1 |
| 2 | B405-002 | KING PIN BUSHING | 2 |
| 3 | B405-003 | SPACER BEARING | 1 |
| 4 | B405-004 | SHIM WASHER | 1 |
| 5 | B405-005 | KING PIN O-RING | 2 |
| 6 | B405-006 | LOCKING KEY | 1 |
