5 1 · Thomas Thomas Bankout

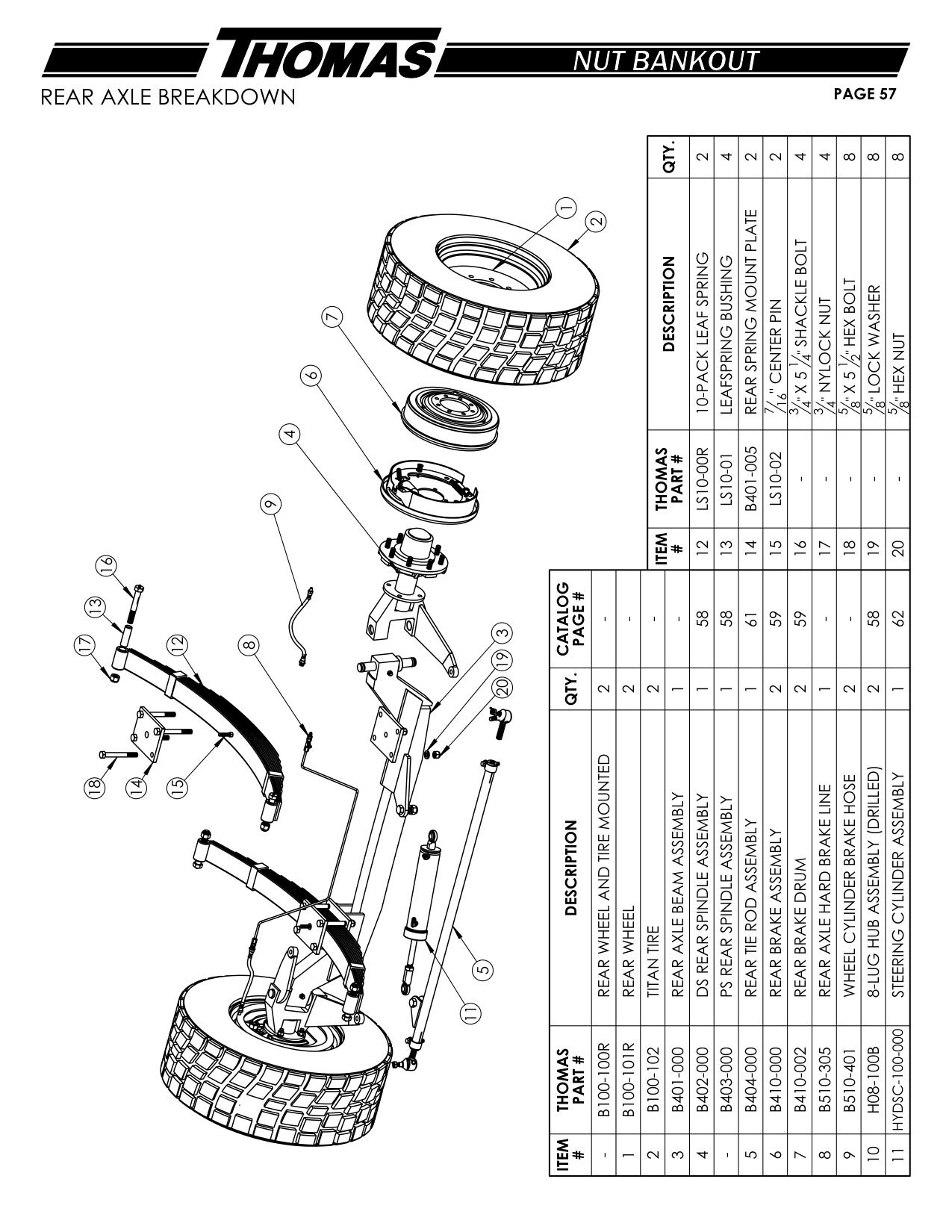

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| - | B100-100R | REAR WHEEL AND TIRE MOUNTED | 2 |
| - | B403-000 | PS REAR SPINDLE ASSEMBLY 1 58 13 LS10-01 LEAFSPRING BUSHING | 4 |
| 1 | B100-101R | REAR WHEEL | 2 |
| 2 | B100-102 | TITAN TIRE | 2 |
| 3 | B401-000 | REAR AXLE BEAM ASSEMBLY 1 - # PART # | |
| 4 | B402-000 | DS REAR SPINDLE ASSEMBLY 1 58 12 LS10-00R 10-PACK LEAF SPRING | 2 |
| 5 | B404-000 | REAR TIE ROD ASSEMBLY 1 61 14 B401-005 REAR SPRING MOUNT PLATE | 2 |
| 6 | B410-000 | REAR BRAKE ASSEMBLY 2 59 15 LS10-02 " CENTER PIN | 2 |
| 7 | B410-002 | REAR BRAKE DRUM 2 59 16 - " X 5 " SHACKLE BOLT | 4 |
| 8 | B510-305 | REAR AXLE HARD BRAKE LINE 1 - 17 - " NYLOCK NUT | 4 |
| 9 | B510-401 | WHEEL CYLINDER BRAKE HOSE 2 - 18 - " X 5 " HEX BOLT | 8 |
| 10 | H08-100B | 8-LUG HUB ASSEMBLY (DRILLED) 2 58 19 - " LOCK WASHER | 8 |
| 11 | HYDSC-100-000 | STEERING CYLINDER ASSEMBLY 1 62 20 - " HEX NUT | 8 |
