Front Axle Shaft Assembly · Thomas Thomas Bankout

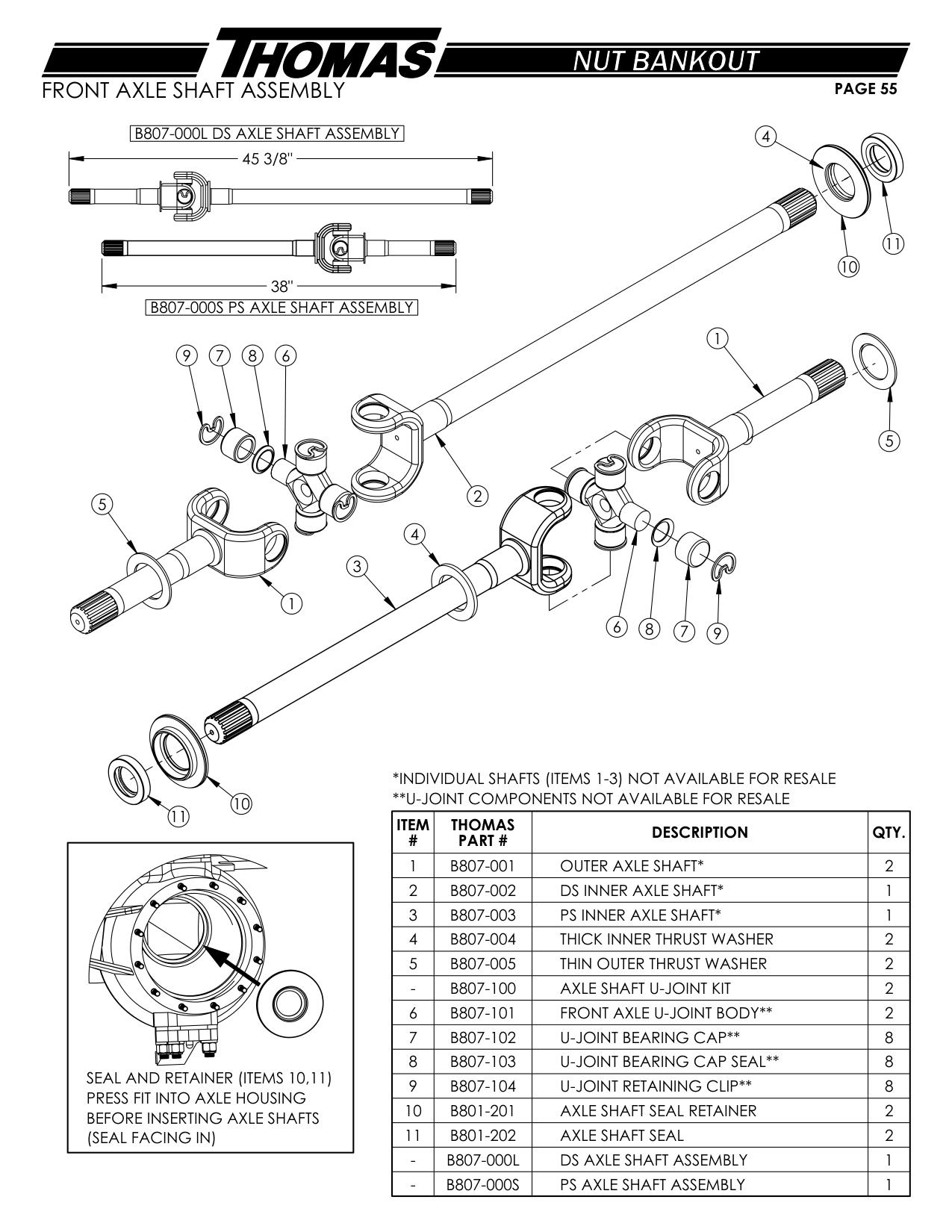

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| - | B807-100 | AXLE SHAFT U-JOINT KIT | 2 |
| - | B807-000L | DS AXLE SHAFT ASSEMBLY | 1 |
| - | B807-000S | PS AXLE SHAFT ASSEMBLY | 1 |
| 1 | B807-001 | OUTER AXLE SHAFT* | 2 |
| 1 | B807-001X | OUTER BALL STYLE AXLE SHAFT* 1 EA. | |
| 2 | B807-002 | DS INNER AXLE SHAFT* | 1 |
| 2 | B807-002X | DS INNER BALL STYLE SHAFT* | 1 |
| 3 | B807-003 | PS INNER AXLE SHAFT* | 1 |
| 3 | B807-003X | PS INNER BALL STYLE SHAFT* 1 A BALL STYLE AXLE SHAFT YOU MUST ORDER | |
| 4 | B807-004 | THICK INNER THRUST WASHER | 2 |
| 4 | B807-004 | INNER THRUST WASHER (THICK) 1 EA. THE STANDARD U-JOINT STYLE AXLE SHAFTS | |
| 5 | B807-005 | THIN OUTER THRUST WASHER | 2 |
| 5 | B807-005 | OUTER THRUST WASHER (THIN) 1 EA. | |
| 6 | B807-101 | FRONT AXLE U-JOINT BODY** | 2 |
| 6 | B807-101X | INNER BALL CENTER PIN* 1 EA. | |
| 7 | B807-102 | U-JOINT BEARING CAP** | 8 |
| 7 | B807-102X | INNER JOINT BALL* 1 EA. | |
| 8 | B807-103 | U-JOINT BEARING CAP SEAL** | 8 |
| 8 | B807-103X | OUTER JOINT BALL* 4 EA. | |
| 9 | B807-104 | U-JOINT RETAINING CLIP** | 8 |
| 9 | B801-201X | BALL STYLE SEAL RETAINER 1 EA | |
| 10 | B801-201 | AXLE SHAFT SEAL RETAINER | 2 |
| 10 | B801-202 | INNER AXLE SHAFT SEAL 1 EA | |
| 11 | B801-203X | BALL STYLE SEAL RETAINER THRUST WASHER 1 EA |
