Front Axle Brake Assembly · Thomas Thomas Bankout

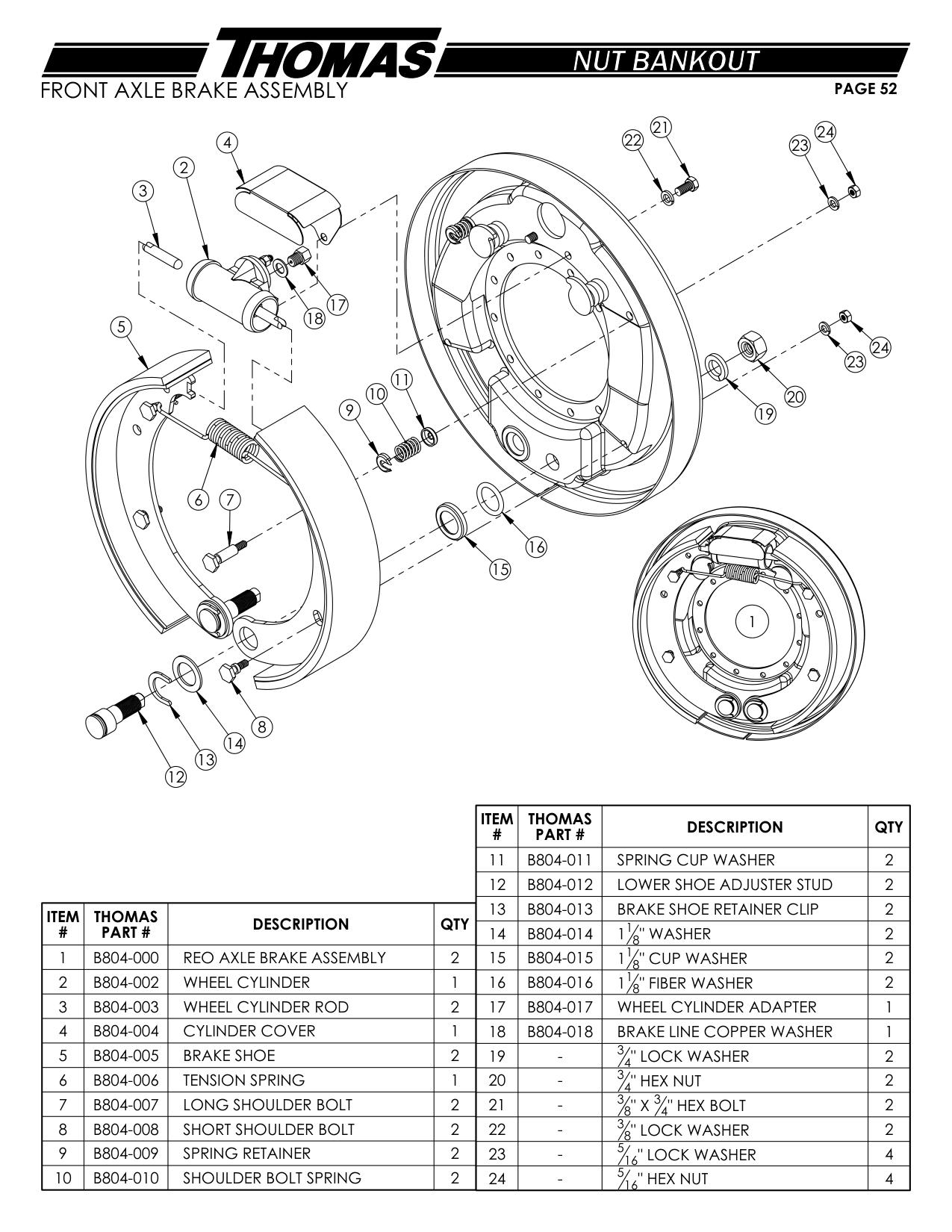

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | B804-000 | REO AXLE BRAKE ASSEMBLY 2 15 B804-015 1 1 " CUP WASHER | 2 |
| 2 | B804-002 | WHEEL CYLINDER 1 16 B804-016 1 1 " FIBER WASHER | 2 |
| 3 | B804-003 | WHEEL CYLINDER ROD 2 17 B804-017 WHEEL CYLINDER ADAPTER | 1 |
| 4 | B804-004 | CYLINDER COVER 1 18 B804-018 BRAKE LINE COPPER WASHER | 1 |
| 5 | B804-005 | BRAKE SHOE 2 19 - " LOCK WASHER | 2 |
| 6 | B804-006 | TENSION SPRING 1 20 - " HEX NUT | 2 |
| 7 | B804-007 | LONG SHOULDER BOLT 2 21 - " X " HEX BOLT | 2 |
| 8 | B804-008 | SHORT SHOULDER BOLT 2 22 - " LOCK WASHER | 2 |
| 9 | B804-009 | SPRING RETAINER 2 23 - " LOCK WASHER | 4 |
| 10 | B804-010 | SHOULDER BOLT SPRING 2 24 - " HEX NUT | 4 |
| 11 | B804-011 | SPRING CUP WASHER | 2 |
| 12 | B804-012 | LOWER SHOE ADJUSTER STUD | 2 |
| 13 | B804-013 | BRAKE SHOE RETAINER CLIP | 2 |
