31 - 1 " Nylock Nut 2 · Thomas Thomas Bankout

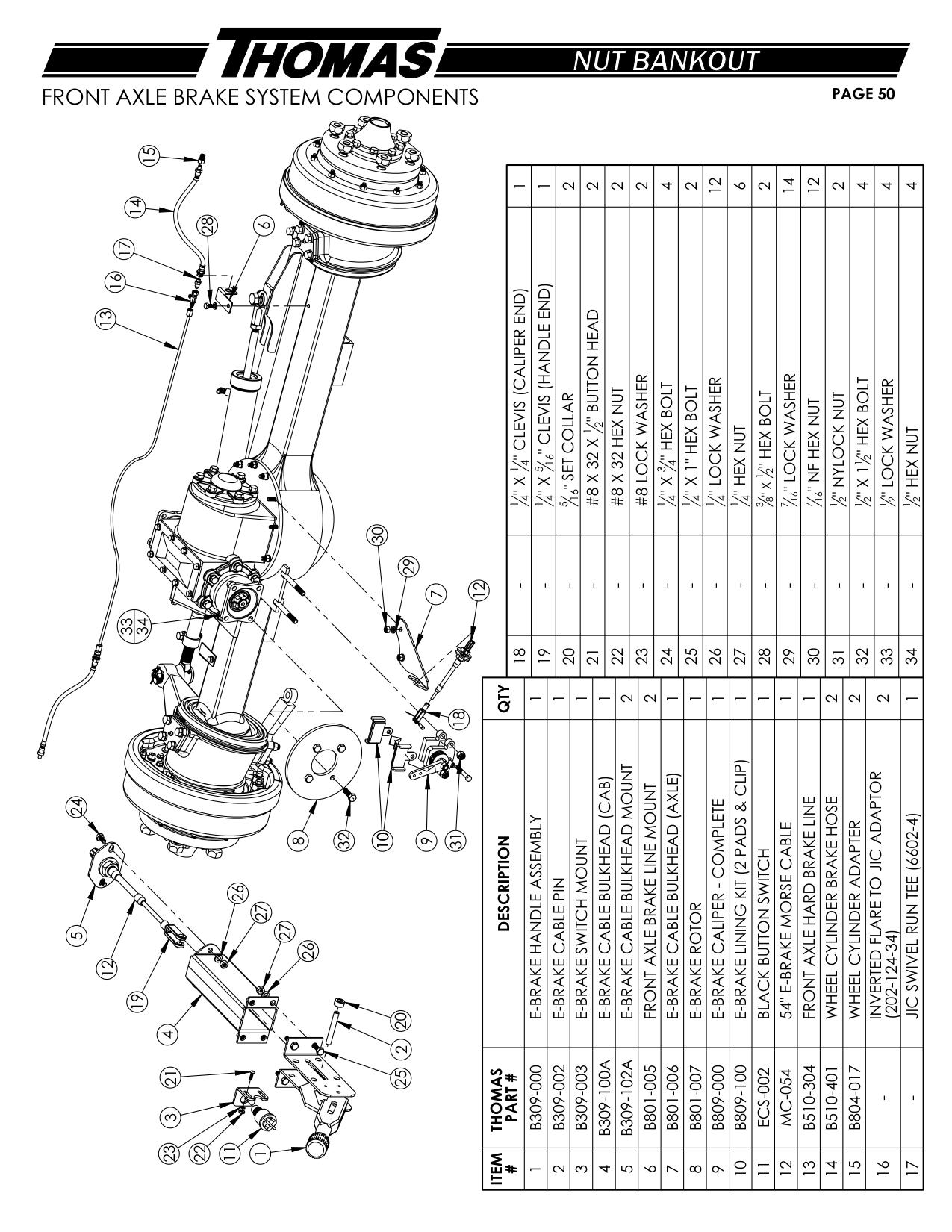

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | B309-000 | E-BRAKE HANDLE ASSEMBLY | 1 |
| 1 | B803-001 | INNER HUB BEARING 1 18 B804-000 FRONT BRAKE ASSEMBLY | 1 |
| 2 | B309-002 | E-BRAKE CABLE PIN | 1 |
| 2 | B803-002 | OUTER HUB BEARING 1 19 - " X 1 " GRADE 8 HEX BOLT | 8 |
| 3 | B309-003 | E-BRAKE SWITCH MOUNT | 1 |
| 3 | B803-003 | BEARING RACE 2 20 - " LOCK WASHER | 8 |
| 4 | B309-100A | E-BRAKE CABLE BULKHEAD (CAB) | 1 |
| 4 | B803-004 | SPINDLE JAM NUT 2 21 - " HEX NUT | 10 |
| 5 | B309-102A | E-BRAKE CABLE BULKHEAD MOUNT | 2 |
| 5 | B803-005 | SPINDLE LOCK RING 1 22 - " LOCK WASHER | 12 |
| 6 | B801-005 | FRONT AXLE BRAKE LINE MOUNT | 2 |
| 6 | B803-006 | SLINGER SEAL 1 23 - " HEX NUT | 12 |
| 7 | B801-006 | E-BRAKE CABLE BULKHEAD (AXLE) | 1 |
| 7 | B803-101 | HUB | 1 |
| 8 | B801-007 | E-BRAKE ROTOR | 1 |
| 8 | B803-102 | BRAKE DRUM ADAPTER PLATE | 1 |
| 9 | B809-000 | E-BRAKE CALIPER - COMPLETE | 1 |
| 9 | B803-103 | 3 " DRUM ADAPTER STUD | 12 |
| 10 | B809-100 | E-BRAKE LINING KIT (2 PADS & CLIP) 1 27 - 1 " HEX NUT | 6 |
| 10 | B803-104 | BRAKE DRUM | 1 |
| 11 | ECS-002 | BLACK BUTTON SWITCH 1 28 - 3 1 " HEX BOLT | 2 |
| 11 | B803-105 | WHEEL STUD | 6 |
| 12 | MC-054 | 54" E-BRAKE MORSE CABLE 1 29 - 7 " LOCK WASHER | 14 |
| 12 | B803-106 | LUG NUT | 6 |
| 13 | B510-304 | FRONT AXLE HARD BRAKE LINE | 1 |
| 14 | B510-401 | WHEEL CYLINDER BRAKE HOSE | 2 |
| 14 | B803-202 | SPINDLE BUSHING | 1 |
| 15 | B804-017 | WHEEL CYLINDER ADAPTER | 2 |
| 15 | B803-203 | HUB SEAL | 1 |
| 16 | B803-301 | HUB DRIVE CAP | 1 |
