Front Axle Third Member And Spider Gear Assembly · Thomas Thomas Bankout

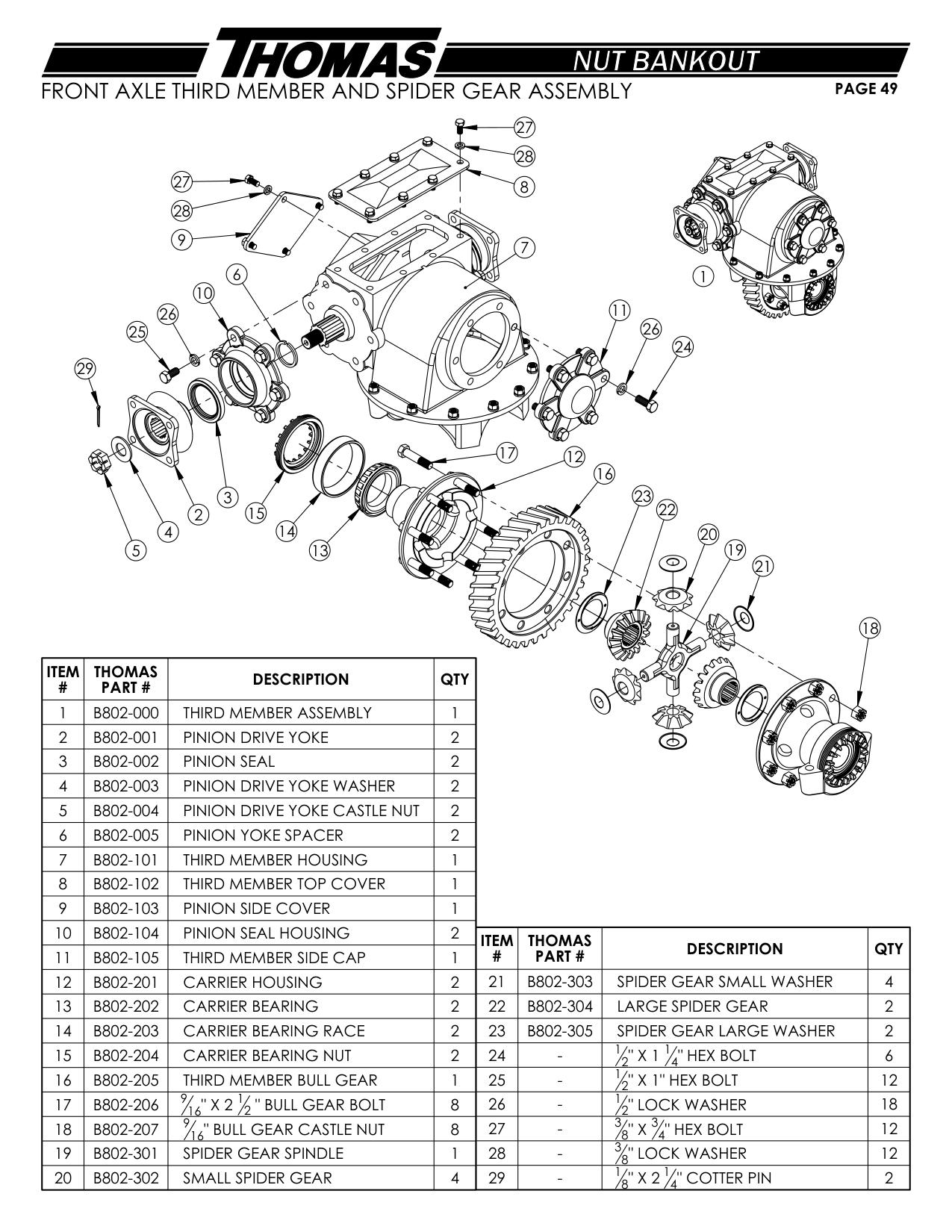

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | B802-000 | THIRD MEMBER ASSEMBLY | 1 |
| 2 | B802-001 | PINION DRIVE YOKE | 2 |
| 3 | B802-002 | PINION SEAL | 2 |
| 4 | B802-003 | PINION DRIVE YOKE WASHER | 2 |
| 5 | B802-004 | PINION DRIVE YOKE CASTLE NUT | 2 |
| 6 | B802-005 | PINION YOKE SPACER | 2 |
| 7 | B802-101 | THIRD MEMBER HOUSING | 1 |
| 8 | B802-102 | THIRD MEMBER TOP COVER | 1 |
| 9 | B802-103 | PINION SIDE COVER | 1 |
| 10 | B802-104 | PINION SEAL HOUSING | 2 |
| 11 | B802-105 | THIRD MEMBER SIDE CAP 1 # PART # | |
| 12 | B802-201 | CARRIER HOUSING 2 21 B802-303 SPIDER GEAR SMALL WASHER | 4 |
| 13 | B802-202 | CARRIER BEARING 2 22 B802-304 LARGE SPIDER GEAR | 2 |
| 14 | B802-203 | CARRIER BEARING RACE 2 23 B802-305 SPIDER GEAR LARGE WASHER | 2 |
| 15 | B802-204 | CARRIER BEARING NUT 2 24 - " X 1 " HEX BOLT | 6 |
| 16 | B802-205 | THIRD MEMBER BULL GEAR 1 25 - " X 1" HEX BOLT | 12 |
| 17 | B802-206 | " X 2 " BULL GEAR BOLT 8 26 - " LOCK WASHER | 18 |
| 18 | B802-207 | " BULL GEAR CASTLE NUT 8 27 - " X " HEX BOLT | 12 |
| 19 | B802-301 | SPIDER GEAR SPINDLE 1 28 - " LOCK WASHER | 12 |
