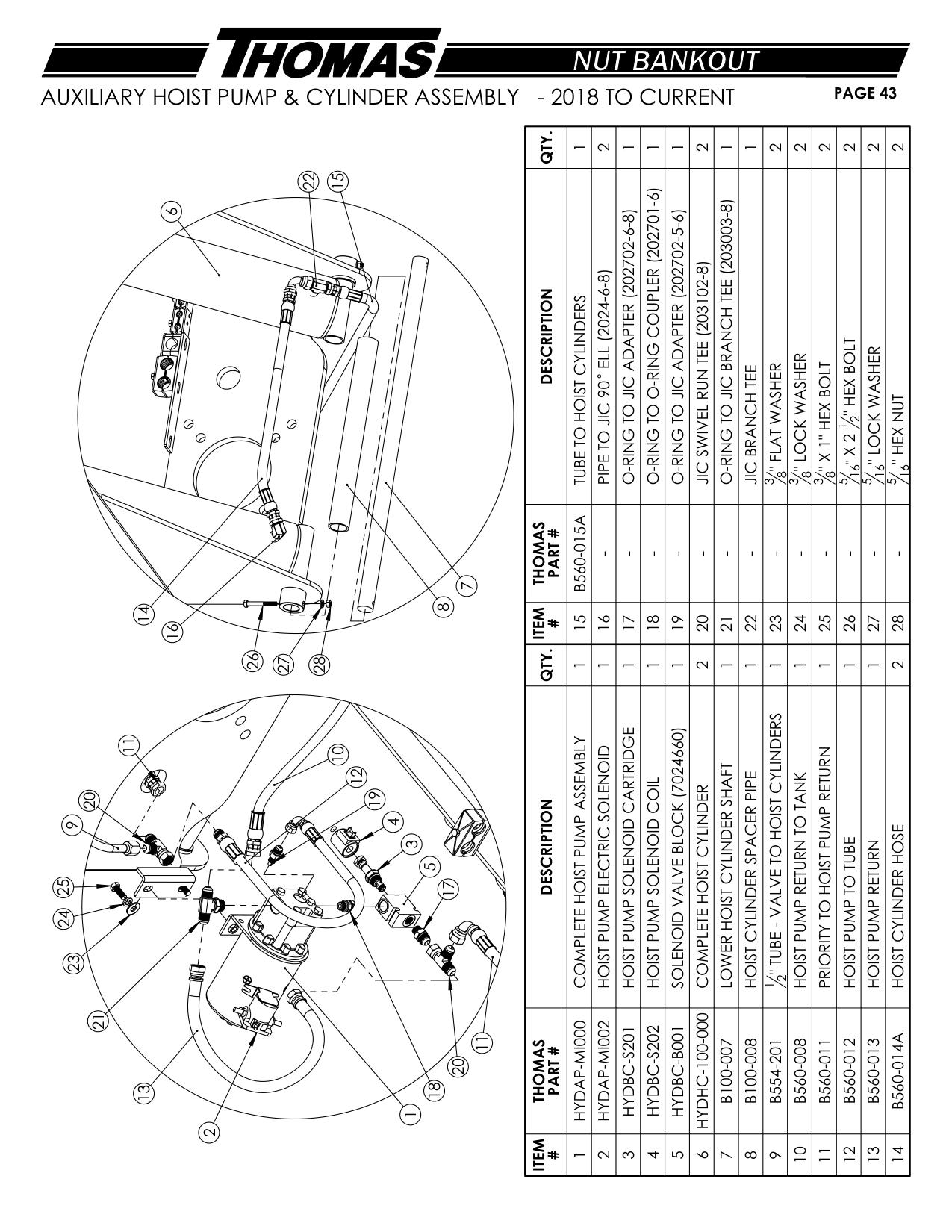

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | HYDAP-MI000 | COMPLETE HOIST PUMP ASSEMBLY 1 15 B560-015A TUBE TO HOIST CYLINDERS | 1 |
| 2 | HYDAP-MI002 | HOIST PUMP ELECTRIC SOLENOID 1 16 - PIPE TO JIC 90 ELL (2024-6-8) | 2 |
| 3 | HYDBC-S201 | HOIST PUMP SOLENOID CARTRIDGE 1 17 - O-RING TO JIC ADAPTER (202702-6-8) | 1 |
| 4 | HYDBC-S202 | HOIST PUMP SOLENOID COIL 1 18 - O-RING TO O-RING COUPLER (202701-6) | 1 |
| 5 | HYDBC-B001 | SOLENOID VALVE BLOCK (7024660) 1 19 - O-RING TO JIC ADAPTER (202702-5-6) | 1 |
| 6 | HYDHC-100-000 | COMPLETE HOIST CYLINDER 2 20 - JIC SWIVEL RUN TEE (203102-8) | 2 |
| 7 | B100-007 | LOWER HOIST CYLINDER SHAFT 1 21 - O-RING TO JIC BRANCH TEE (203003-8) | 1 |
| 8 | B100-008 | HOIST CYLINDER SPACER PIPE 1 22 - JIC BRANCH TEE | 1 |
| 9 | B554-201 | " TUBE - VALVE TO HOIST CYLINDERS 1 23 - " FLAT WASHER | 2 |
| 10 | B560-008 | HOIST PUMP RETURN TO TANK 1 24 - " LOCK WASHER | 2 |
| 11 | B560-011 | PRIORITY TO HOIST PUMP RETURN 1 25 - " X 1" HEX BOLT | 2 |
| 12 | B560-012 | HOIST PUMP TO TUBE 1 26 - " X 2 " HEX BOLT | 2 |
| 13 | B560-013 | HOIST PUMP RETURN 1 27 - " LOCK WASHER | 2 |
| 14 | B560-014A | HOIST CYLINDER HOSE 2 28 - " HEX NUT | 2 |
