Extension Hitch · Thomas Thomas Bankout

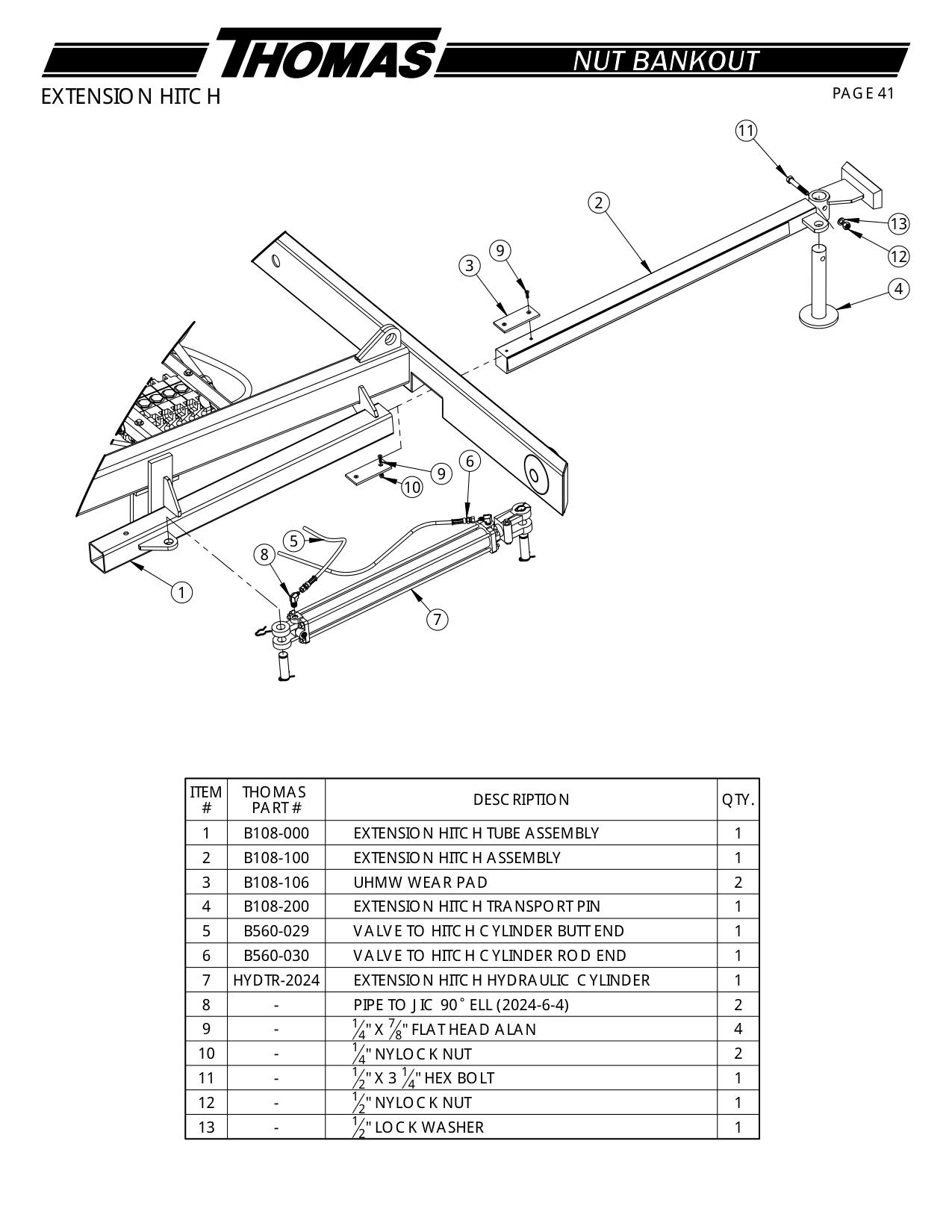

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | B108-000 | EXTENSION HITCH TUBE ASSEMBLY | 1 |
| 2 | B108-100 | EXTENSION HITCH ASSEMBLY | 1 |
| 3 | B108-106 | UHMW WEAR PAD | 2 |
| 4 | B108-200 | EXTENSION HITCH TRANSPORT PIN | 1 |
| 5 | B560-029 | VALVE TO HITCH CYLINDER BUTT END | 1 |
| 6 | B560-030 | VALVE TO HITCH CYLINDER ROD END | 1 |
| 7 | HYDTR-2024 | EXTENSION HITCH HYDRAULIC CYLINDER | 1 |
