Air Filter Vacuum Kit · Thomas Thomas Bankout

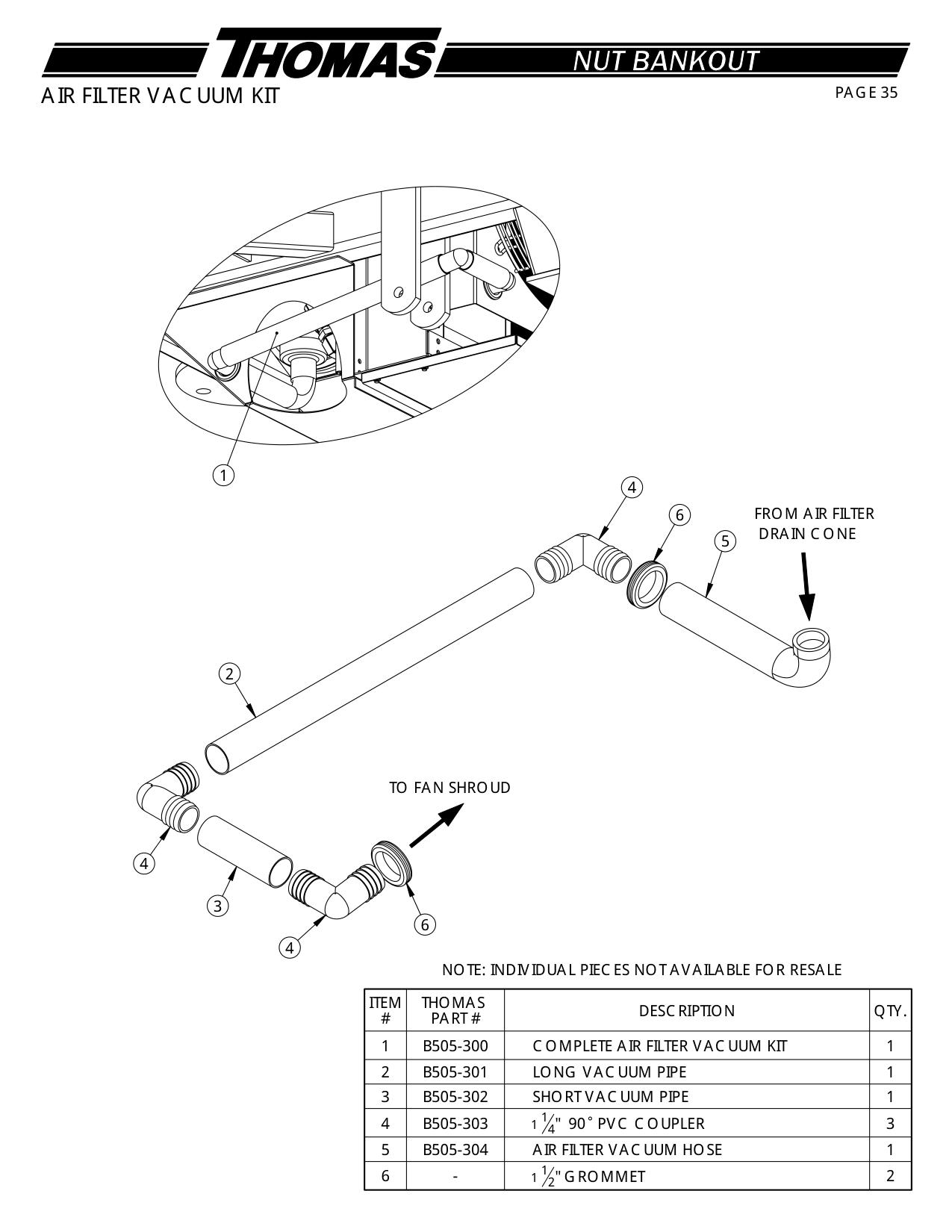

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | B505-300 | COMPLETE AIR FILTER VACUUM KIT | 1 |
| 2 | B505-301 | LONG VACUUM PIPE | 1 |
| 3 | B505-302 | SHORT VACUUM PIPE | 1 |
| 4 | B505-303 | 1 " 90 PVC COUPLER | 3 |
| 5 | B505-304 | AIR FILTER VACUUM HOSE | 1 |
