Cummins Engine Assembly Piping & Hoses · Thomas Thomas Bankout

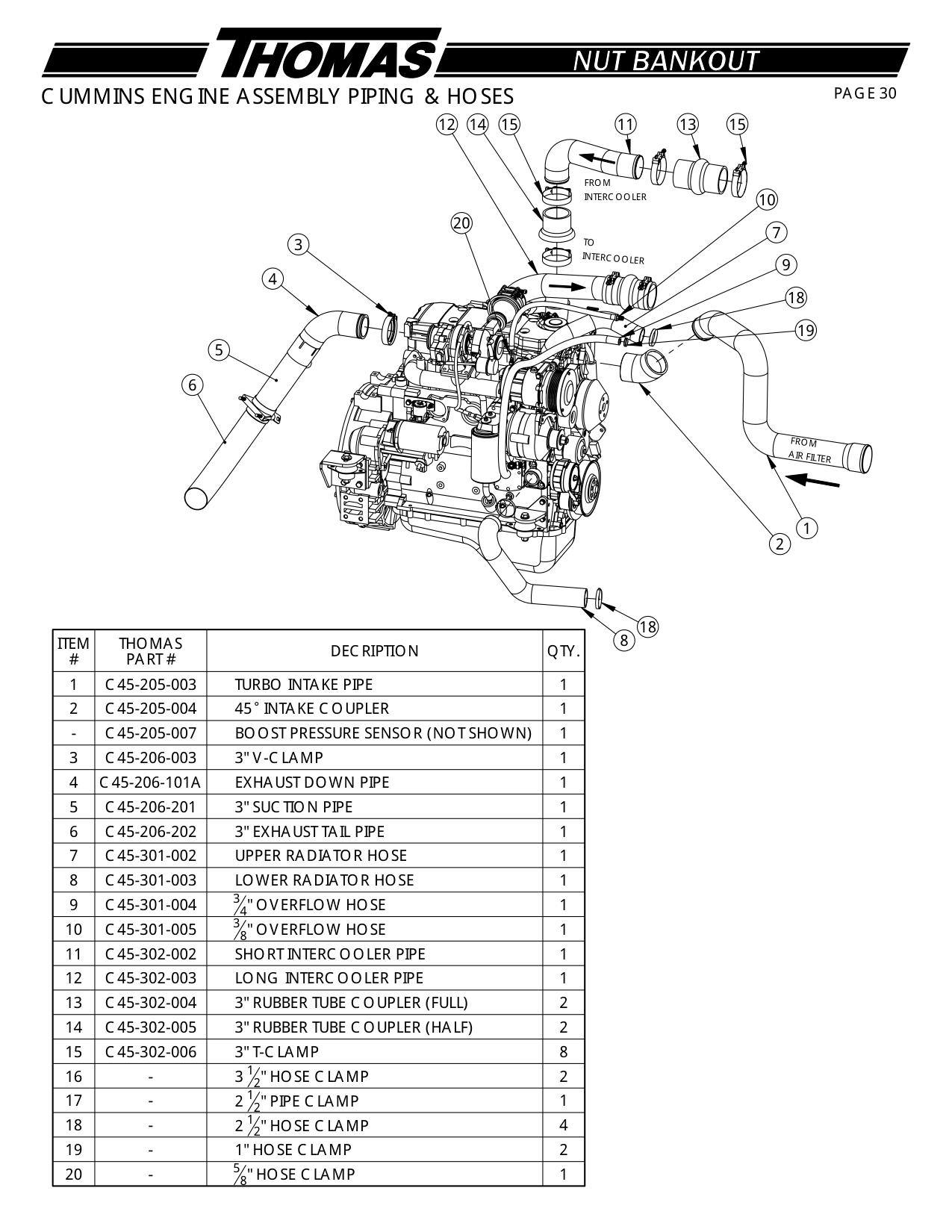

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| - | C45-205-007 | BOOST PRESSURE SENSOR (NOT SHOWN) | 1 |
| 1 | C45-205-003 | TURBO INTAKE PIPE | 1 |
| 2 | C45-205-004 | 45 INTAKE COUPLER | 1 |
| 3 | C45-206-003 | 3" V-CLAMP | 1 |
| 4 | C45-206-101A | EXHAUST DOWN PIPE | 1 |
| 5 | C45-206-201 | 3" SUCTION PIPE | 1 |
| 6 | C45-206-202 | 3" EXHAUST TAIL PIPE | 1 |
| 7 | C45-301-002 | UPPER RADIATOR HOSE | 1 |
| 8 | C45-301-003 | LOWER RADIATOR HOSE | 1 |
| 9 | C45-301-004 | " OVERFLOW HOSE | 1 |
| 10 | C45-301-005 | " OVERFLOW HOSE | 1 |
| 11 | C45-302-002 | SHORT INTERCOOLER PIPE | 1 |
