5 Hydp-Ma197Spl Hydraulic Pump 1 · Thomas Thomas Bankout

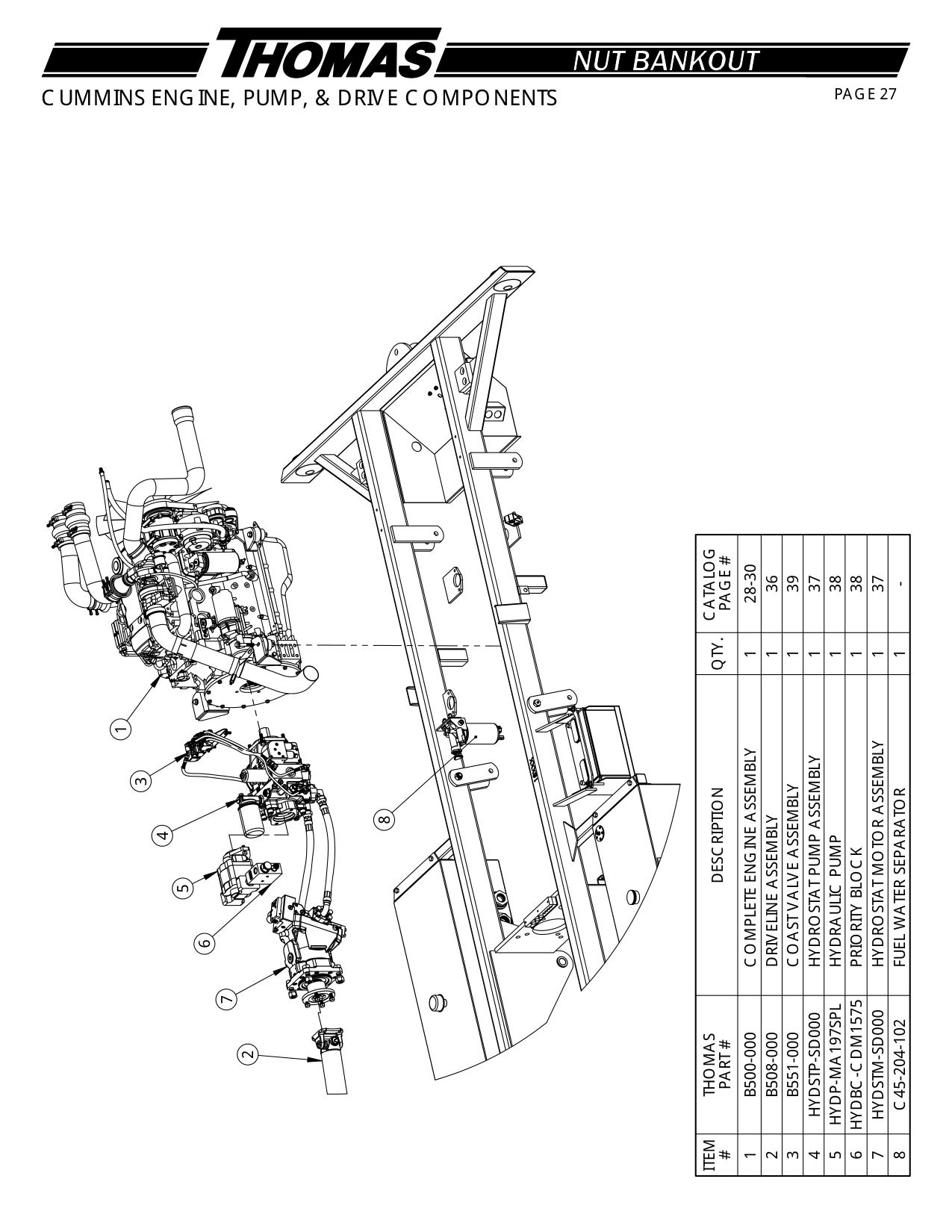

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | B500-000 | COMPLETE ENGINE ASSEMBLY 1 28-30 | |
| 2 | B508-000 | DRIVELINE ASSEMBLY | 1 |
| 3 | B551-000 | COAST VALVE ASSEMBLY | 1 |
| 4 | HYDSTP-SD000 | HYDROSTAT PUMP ASSEMBLY | 1 |
| 5 | HYDP-MA197SPL | HYDRAULIC PUMP | 1 |
| 6 | HYDBC-CDM1575 | PRIORITY BLOCK | 1 |
| 7 | HYDSTM-SD000 | HYDROSTAT MOTOR ASSEMBLY | 1 |
| 8 | C45-204-102 | FUEL WATER SEPARATOR | 1 |
