Chassis Components Breakdown · Thomas Thomas Bankout

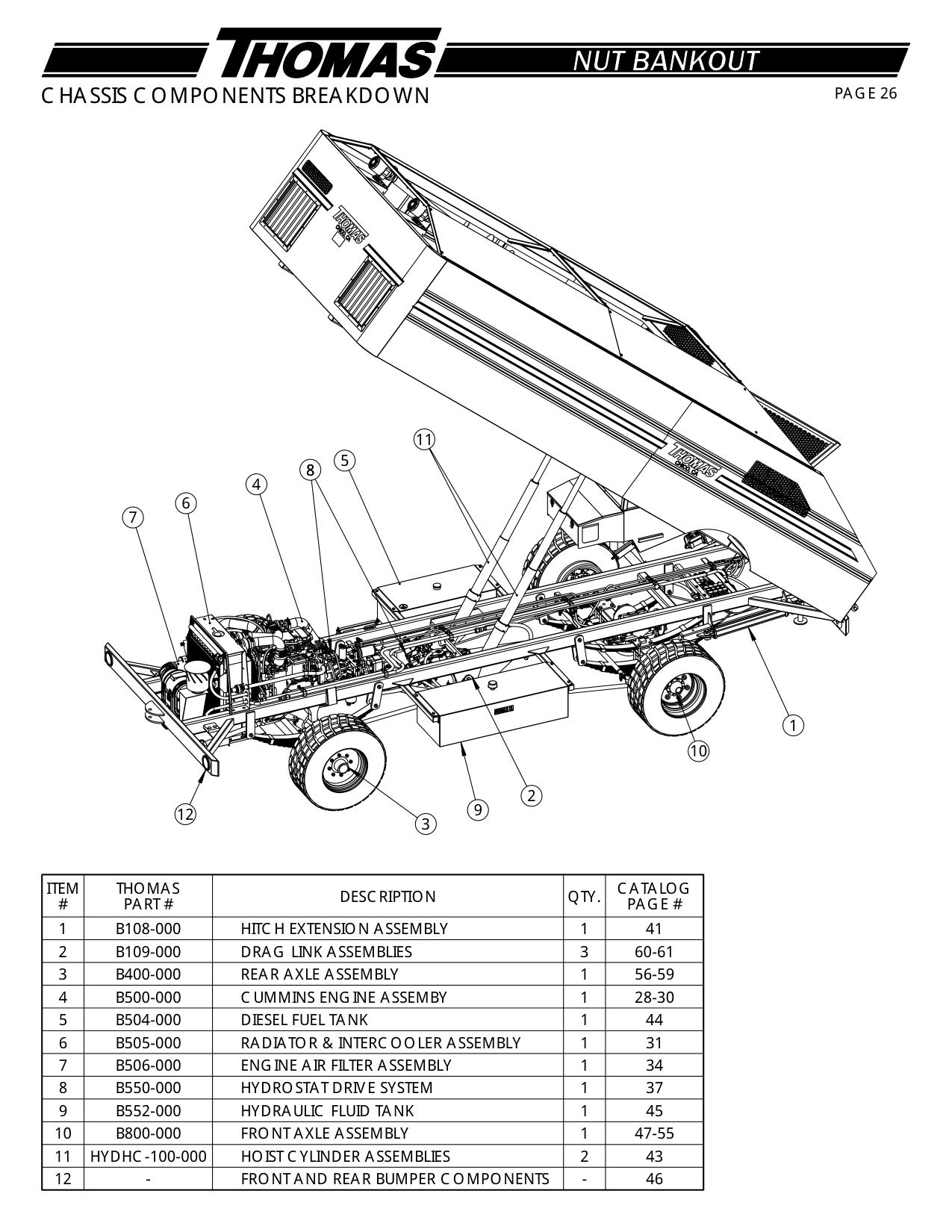

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | B108-000 | HITCH EXTENSION ASSEMBLY | 1 |
| 2 | B109-000 | DRAG LINK ASSEMBLIES 3 60-61 | |
| 3 | B400-000 | REAR AXLE ASSEMBLY 1 56-59 | |
| 4 | B500-000 | CUMMINS ENGINE ASSEMBY 1 28-30 | |
| 5 | B504-000 | DIESEL FUEL TANK | 1 |
| 6 | B505-000 | RADIATOR & INTERCOOLER ASSEMBLY | 1 |
| 7 | B506-000 | ENGINE AIR FILTER ASSEMBLY | 1 |
| 8 | B550-000 | HYDROSTAT DRIVE SYSTEM | 1 |
