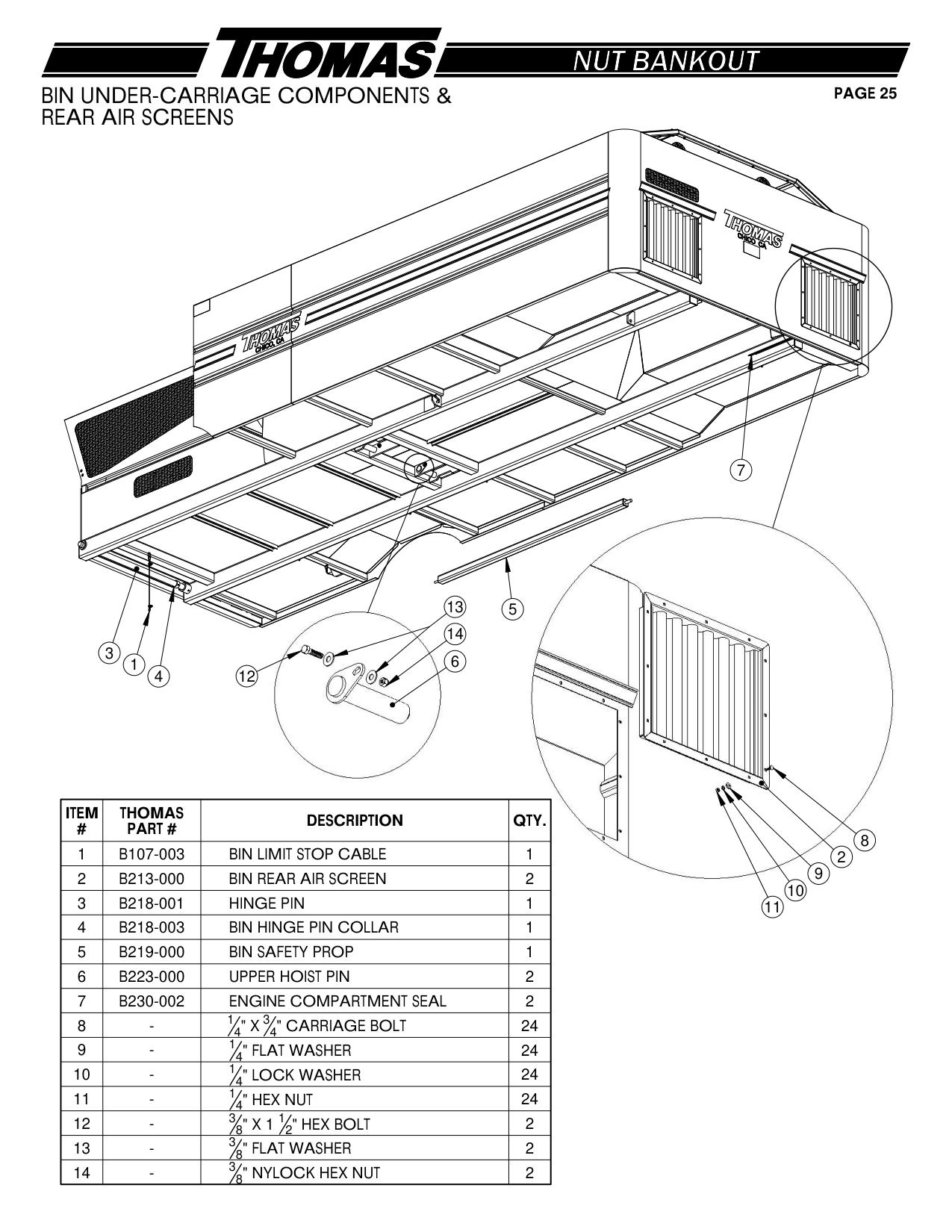

Bin Under-Carriage Components & · Thomas Thomas Bankout
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | B107-003 | BIN LIMIT STOP CABLE | 1 |
| 2 | B213-000 | BIN REAR AIR SCREEN | 2 |
| 3 | B218-001 | HINGE PIN | 1 |
| 4 | B218-003 | BIN HINGE PIN COLLAR | 1 |
| 5 | B219-000 | BIN SAFETY PROP | 1 |
| 6 | B223-000 | UPPER HOIST PIN | 2 |
| 7 | B230-002 | ENGINE COMPARTMENT SEAL | 2 |
