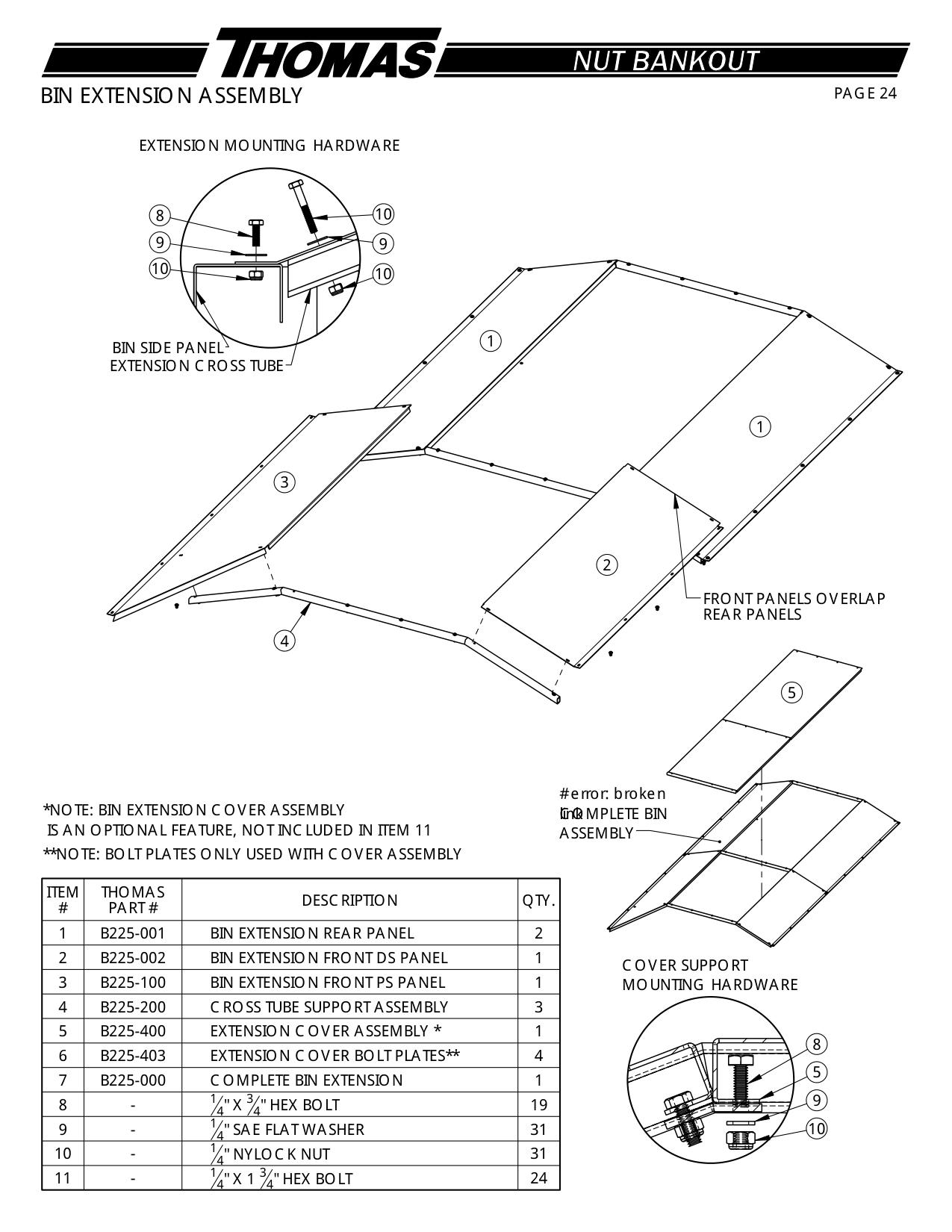

Bin Extension Assembly · Thomas Thomas Bankout
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | B225-001 | BIN EXTENSION REAR PANEL | 2 |
| 2 | B225-002 | BIN EXTENSION FRONT DS PANEL | 1 |
| 3 | B225-100 | BIN EXTENSION FRONT PS PANEL | 1 |
| 4 | B225-200 | CROSS TUBE SUPPORT ASSEMBLY | 3 |
| 5 | B225-400 | EXTENSION COVER ASSEMBLY * | 1 |
| 6 | B225-403 | EXTENSION COVER BOLT PLATES** | 4 |
| 7 | B225-000 | COMPLETE BIN EXTENSION | 1 |
