Front Gate Assembly · Thomas Thomas Bankout

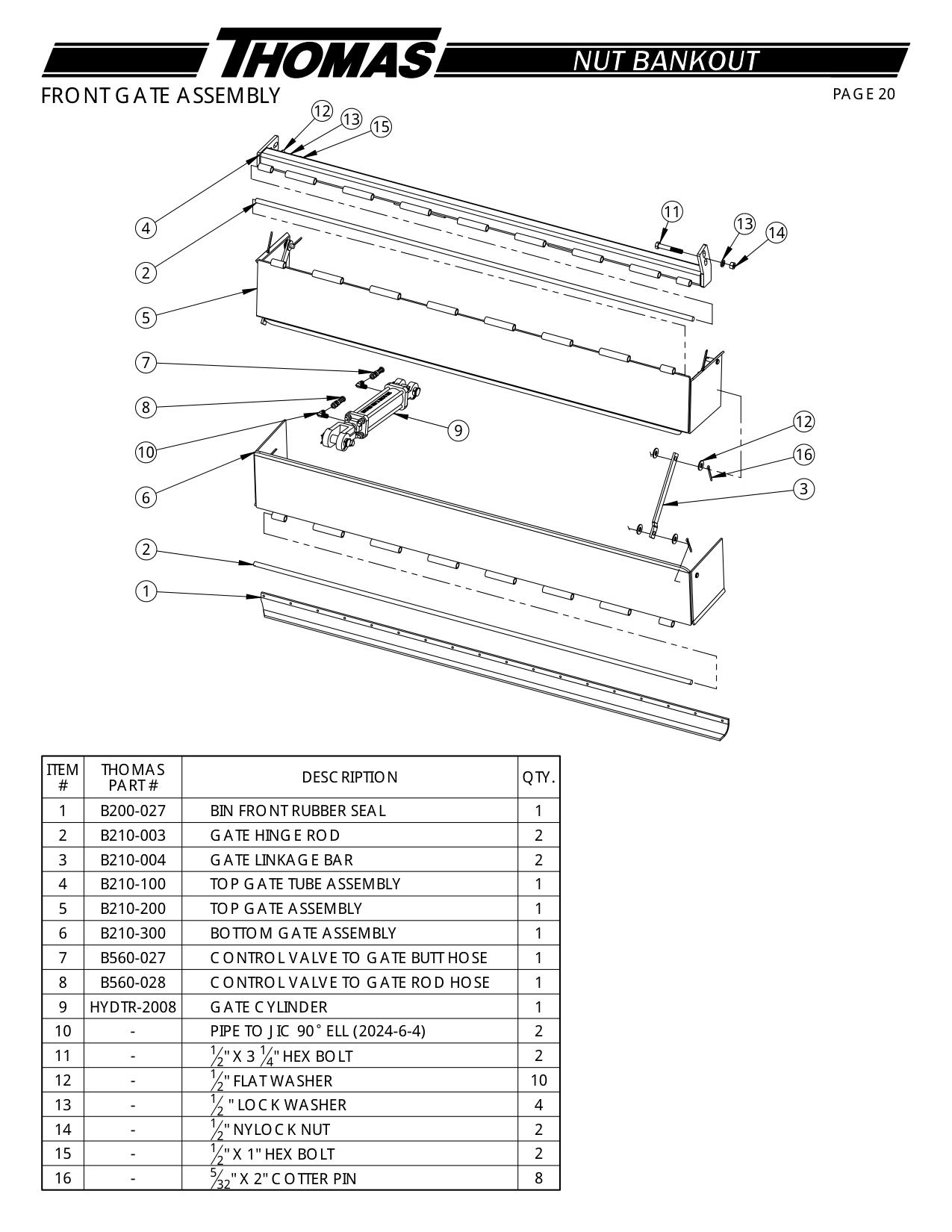

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | B200-027 | BIN FRONT RUBBER SEAL | 1 |
| 2 | B210-003 | GATE HINGE ROD | 2 |
| 3 | B210-004 | GATE LINKAGE BAR | 2 |
| 4 | B210-100 | TOP GATE TUBE ASSEMBLY | 1 |
| 5 | B210-200 | TOP GATE ASSEMBLY | 1 |
| 6 | B210-300 | BOTTOM GATE ASSEMBLY | 1 |
| 7 | B560-027 | CONTROL VALVE TO GATE BUTT HOSE | 1 |
| 8 | B560-028 | CONTROL VALVE TO GATE ROD HOSE | 1 |
| 9 | HYDTR-2008 | GATE CYLINDER | 1 |
