Pre-2012 Cab Air Filter Assembly · Thomas Thomas Bankout

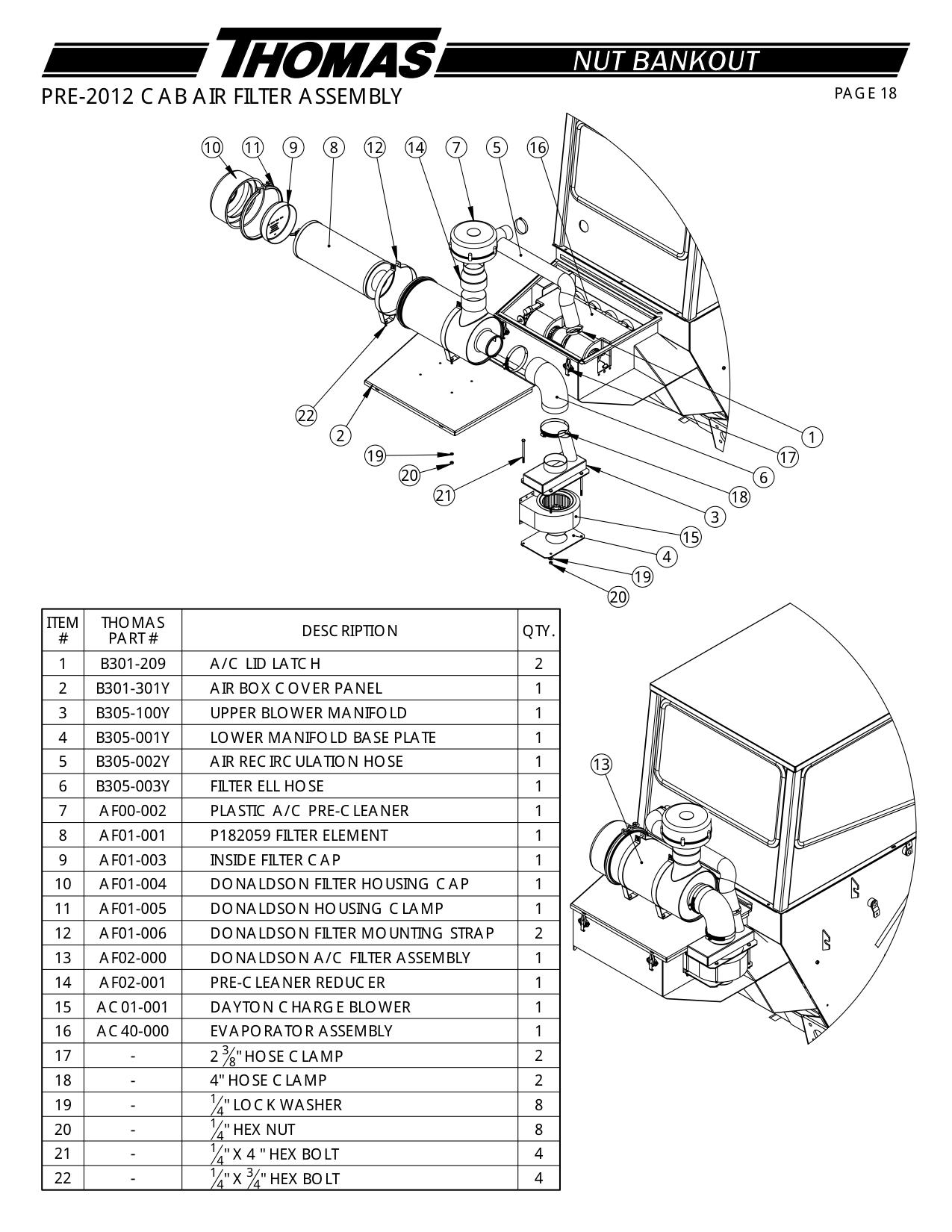

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | B301-209 | A/C LID LATCH | 2 |
| 2 | B301-301Y | AIR BOX COVER PANEL | 1 |
| 3 | B305-100Y | UPPER BLOWER MANIFOLD | 1 |
| 4 | B305-001Y | LOWER MANIFOLD BASE PLATE | 1 |
| 5 | B305-002Y | AIR RECIRCULATION HOSE | 1 |
| 6 | B305-003Y | FILTER ELL HOSE | 1 |
| 7 | AF00-002 | PLASTIC A/C PRE-CLEANER | 1 |
| 8 | AF01-001 | P182059 FILTER ELEMENT | 1 |
| 9 | AF01-003 | INSIDE FILTER CAP | 1 |
| 10 | AF01-004 | DONALDSON FILTER HOUSING CAP | 1 |
| 11 | AF01-005 | DONALDSON HOUSING CLAMP | 1 |
| 12 | AF01-006 | DONALDSON FILTER MOUNTING STRAP | 2 |
| 13 | AF02-000 | DONALDSON A/C FILTER ASSEMBLY | 1 |
| 14 | AF02-001 | PRE-CLEANER REDUCER | 1 |
| 15 | AC01-001 | DAYTON CHARGE BLOWER | 1 |
| 16 | AC40-000 | EVAPORATOR ASSEMBLY | 1 |
