Pre-2016 Evaporator Assembly · Thomas Thomas Bankout

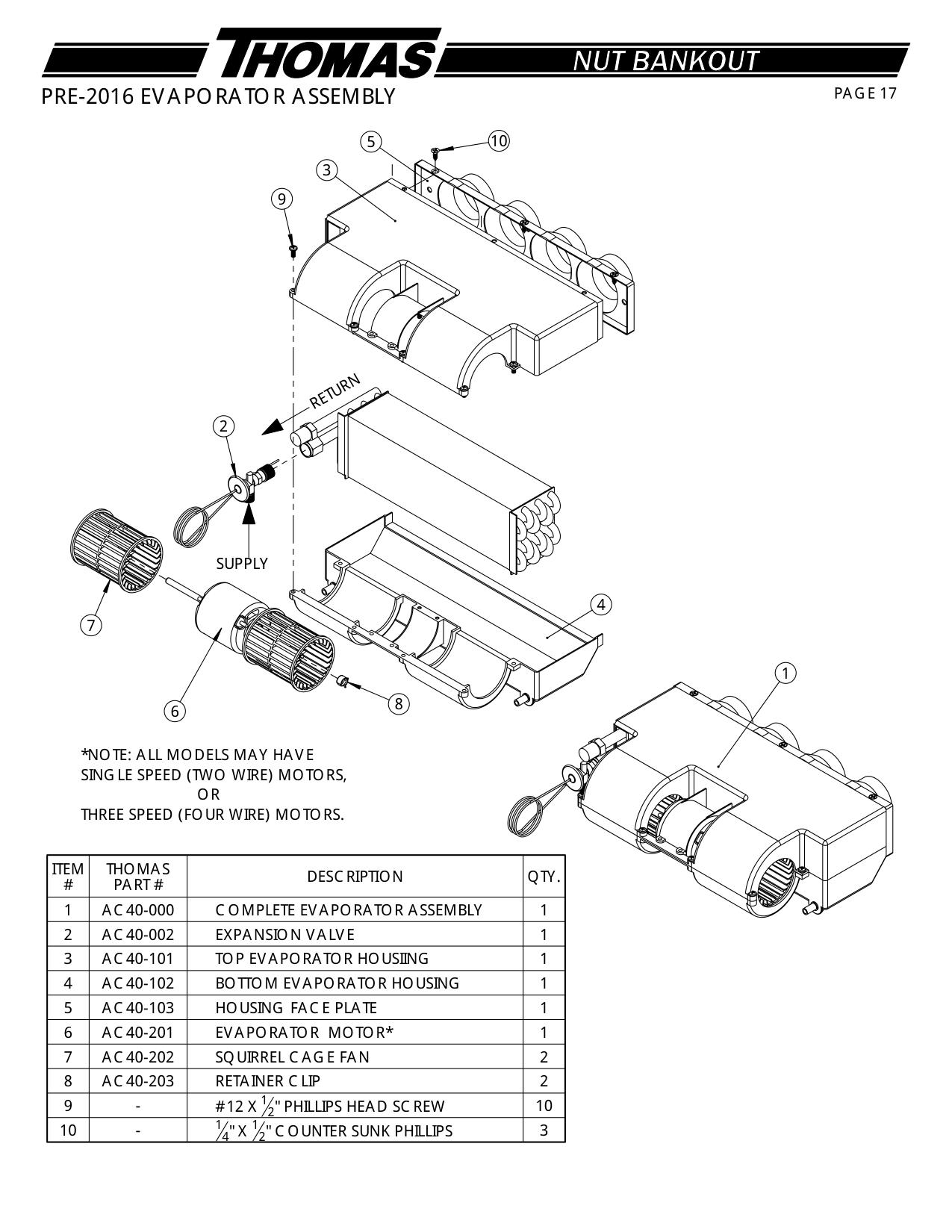

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | AC40-000 | COMPLETE EVAPORATOR ASSEMBLY | 1 |
| 2 | AC40-002 | EXPANSION VALVE | 1 |
| 3 | AC40-101 | TOP EVAPORATOR HOUSIING | 1 |
| 4 | AC40-102 | BOTTOM EVAPORATOR HOUSING | 1 |
| 5 | AC40-103 | HOUSING FACE PLATE | 1 |
| 6 | AC40-201 | EVAPORATOR MOTOR* | 1 |
| 7 | AC40-202 | SQUIRREL CAGE FAN | 2 |
| 8 | AC40-203 | RETAINER CLIP | 2 |
