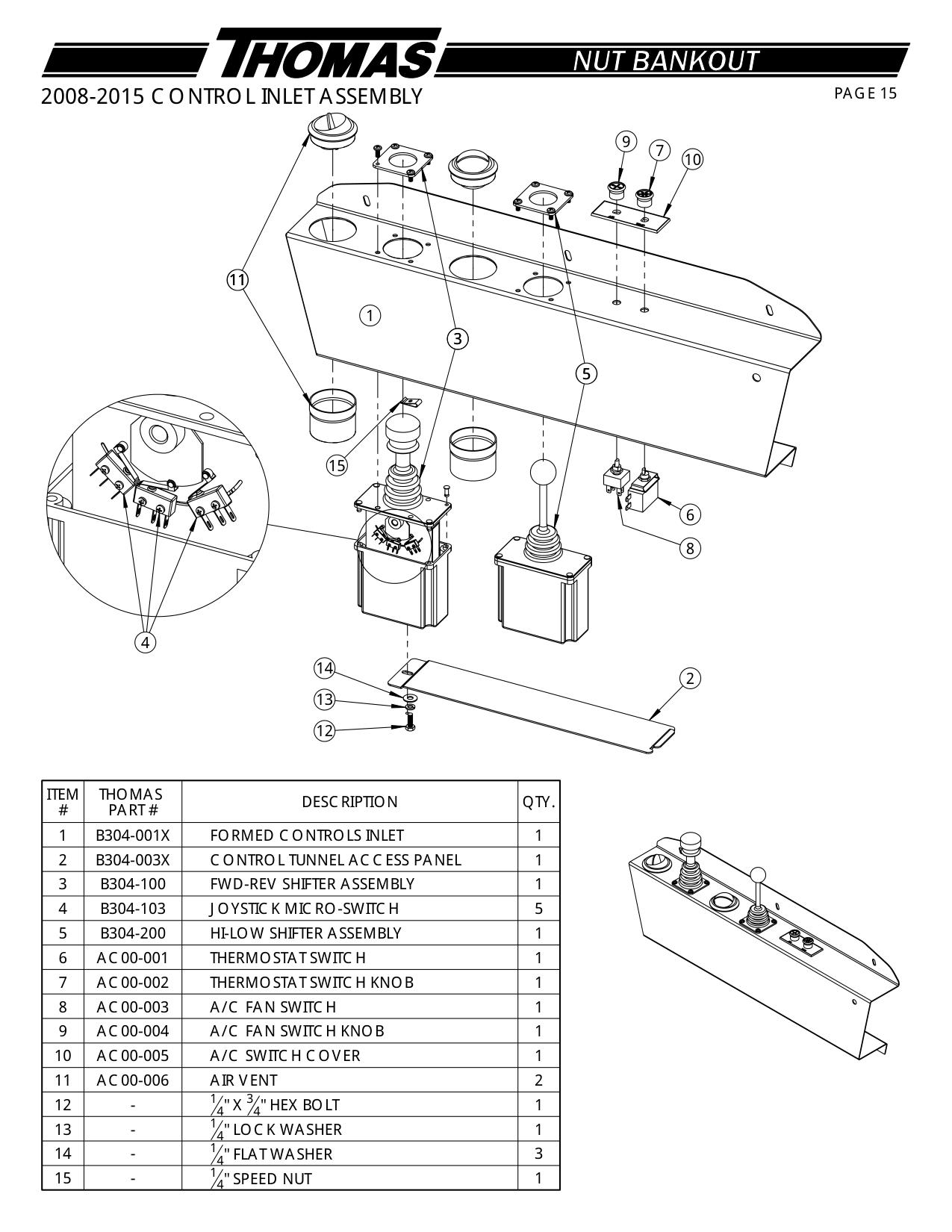

2008-2015 Control Inlet Assembly · Thomas Thomas Bankout
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | B304-001X | FORMED CONTROLS INLET | 1 |
| 2 | B304-003X | CONTROL TUNNEL ACCESS PANEL | 1 |
| 3 | B304-100 | FWD-REV SHIFTER ASSEMBLY | 1 |
| 4 | B304-103 | JOYSTICK MICRO-SWITCH | 5 |
| 5 | B304-200 | HI-LOW SHIFTER ASSEMBLY | 1 |
| 6 | AC00-001 | THERMOSTAT SWITCH | 1 |
| 7 | AC00-002 | THERMOSTAT SWITCH KNOB | 1 |
| 8 | AC00-003 | A/C FAN SWITCH | 1 |
| 9 | AC00-004 | A/C FAN SWITCH KNOB | 1 |
| 10 | AC00-005 | A/C SWITCH COVER | 1 |
| 11 | AC00-006 | AIR VENT | 2 |
