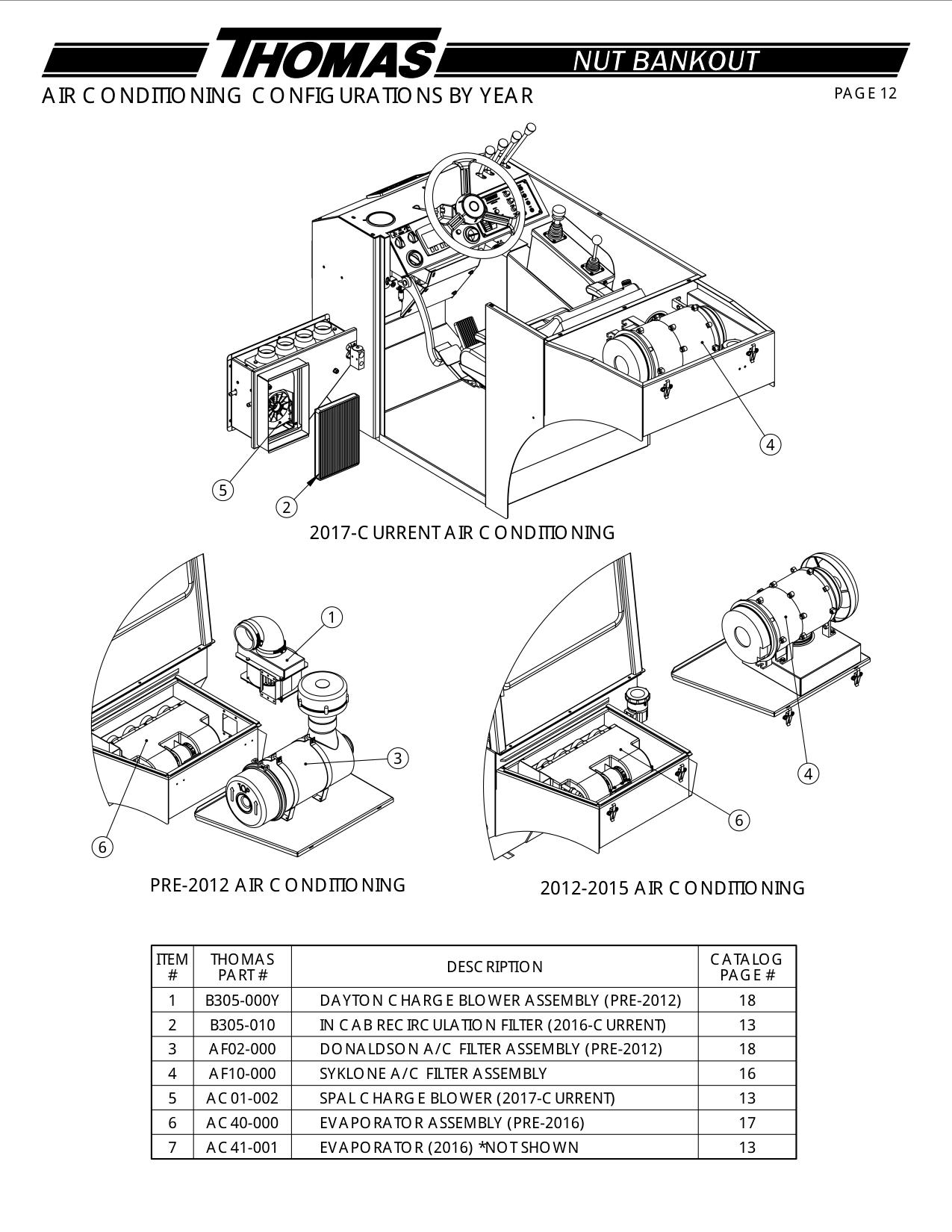

Air Conditioning Configurations By Year · Thomas Thomas Bankout
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | B305-000Y | DAYTON CHARGE BLOWER ASSEMBLY (PRE-2012) | 18 |
| 2 | B305-010 | IN CAB RECIRCULATION FILTER (2016-CURRENT) | 13 |
| 3 | AF02-000 | DONALDSON A/C FILTER ASSEMBLY (PRE-2012) | 18 |
| 4 | AF10-000 | SYKLONE A/C FILTER ASSEMBLY | 16 |
| 5 | AC01-002 | SPAL CHARGE BLOWER (2017-CURRENT) | 13 |
| 6 | AC40-000 | EVAPORATOR ASSEMBLY (PRE-2016) | 17 |
| 7 | AC41-001 | EVAPORATOR (2016) *NOT SHOWN | 13 |
