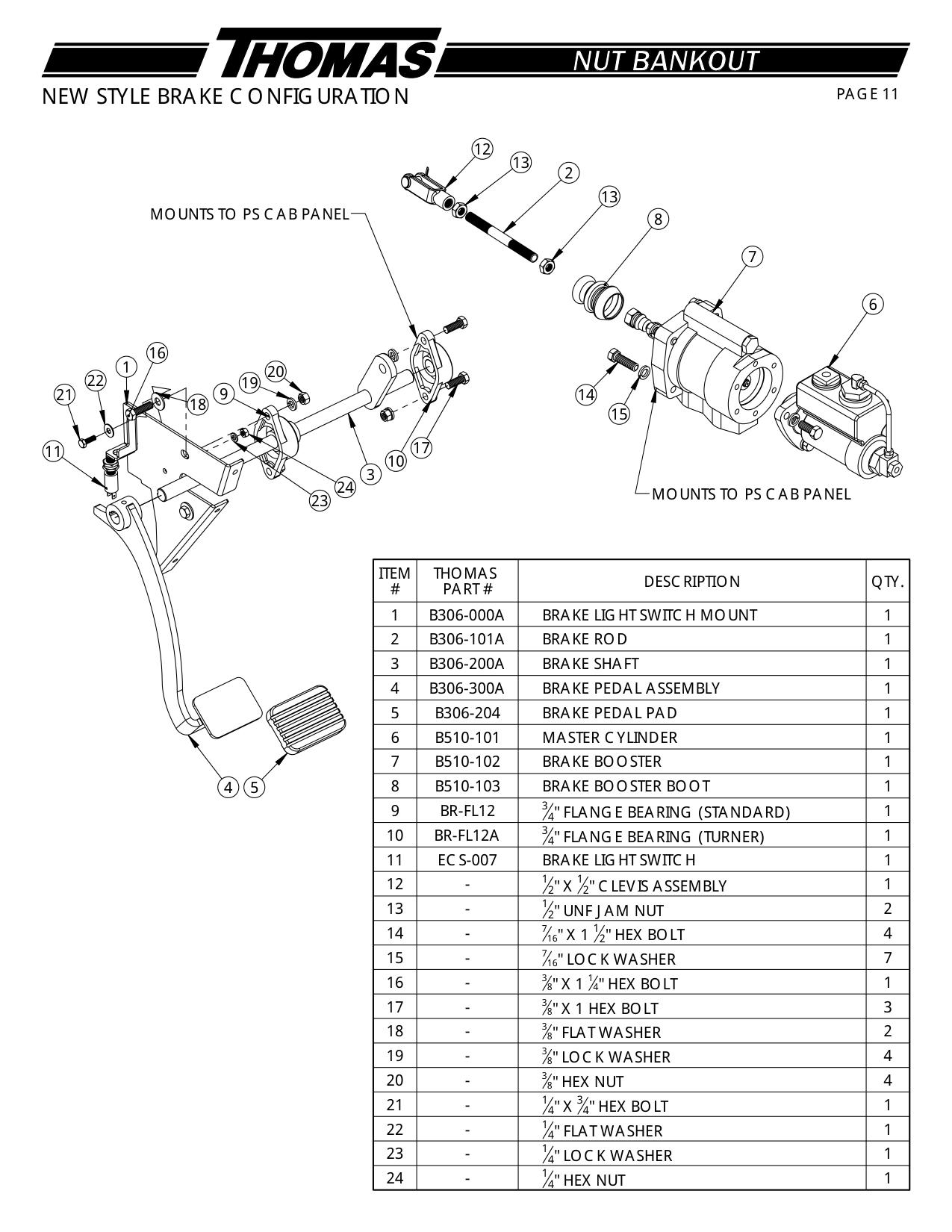

New Style Brake Configuration · Thomas Thomas Bankout
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | B306-000A | BRAKE LIGHT SWITCH MOUNT | 1 |
| 2 | B306-101A | BRAKE ROD | 1 |
| 3 | B306-200A | BRAKE SHAFT | 1 |
| 4 | B306-300A | BRAKE PEDAL ASSEMBLY | 1 |
| 5 | B306-204 | BRAKE PEDAL PAD | 1 |
| 6 | B510-101 | MASTER CYLINDER | 1 |
| 7 | B510-102 | BRAKE BOOSTER | 1 |
| 9 | BR-FL12 | " FLANGE BEARING (STANDARD) | 1 |
| 11 | ECS-007 | BRAKE LIGHT SWITCH | 1 |
