Hydraulic Control Levers & Cables · Thomas Thomas Bankout

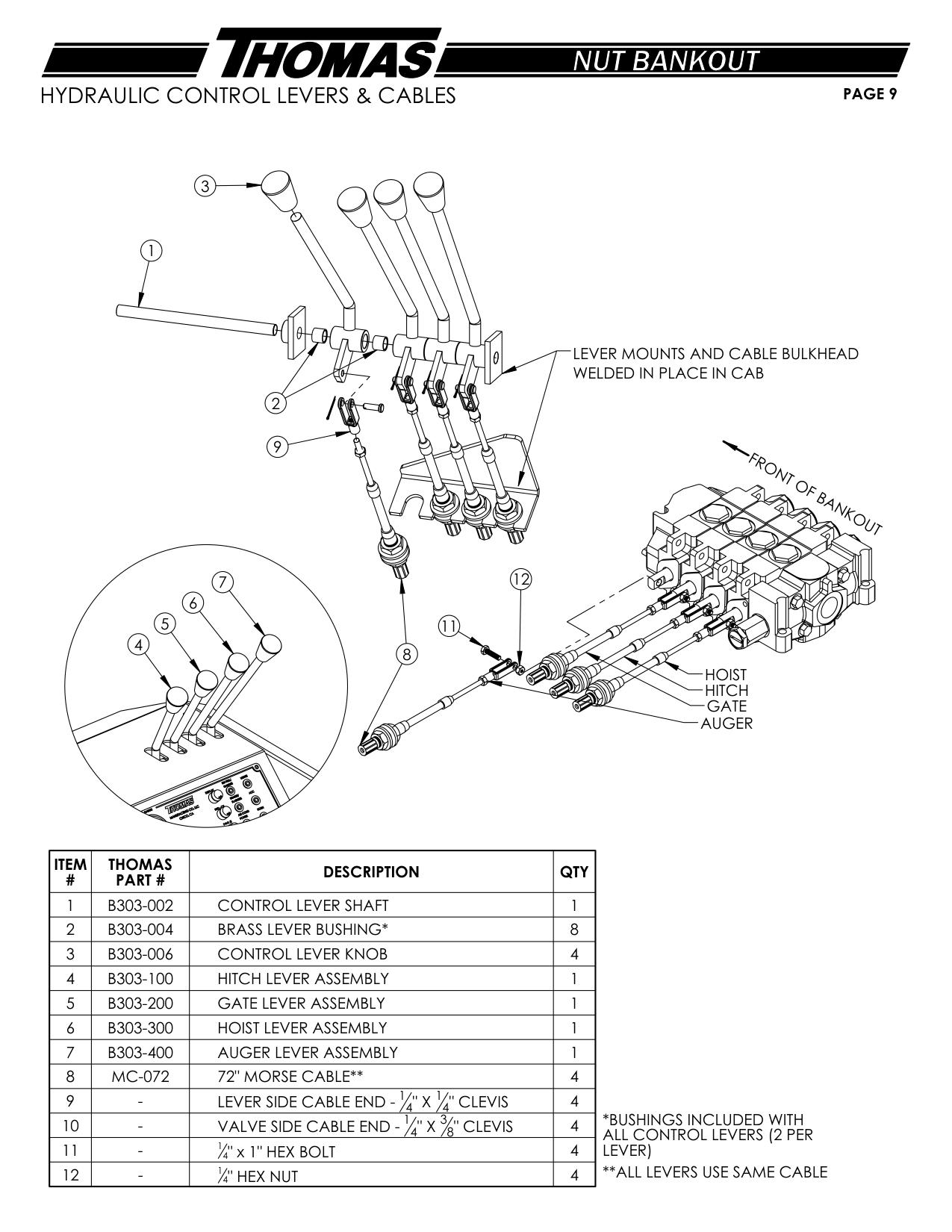

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | B303-002 | CONTROL LEVER SHAFT | 1 |
| 2 | B303-004 | BRASS LEVER BUSHING* | 8 |
| 3 | B303-006 | CONTROL LEVER KNOB | 4 |
| 4 | B303-100 | HITCH LEVER ASSEMBLY | 1 |
| 5 | B303-200 | GATE LEVER ASSEMBLY | 1 |
| 6 | B303-300 | HOIST LEVER ASSEMBLY | 1 |
| 7 | B303-400 | AUGER LEVER ASSEMBLY | 1 |
| 8 | MC-072 | 72" MORSE CABLE** | 4 |
