Dash Panel Controls & Components · Thomas Thomas Bankout

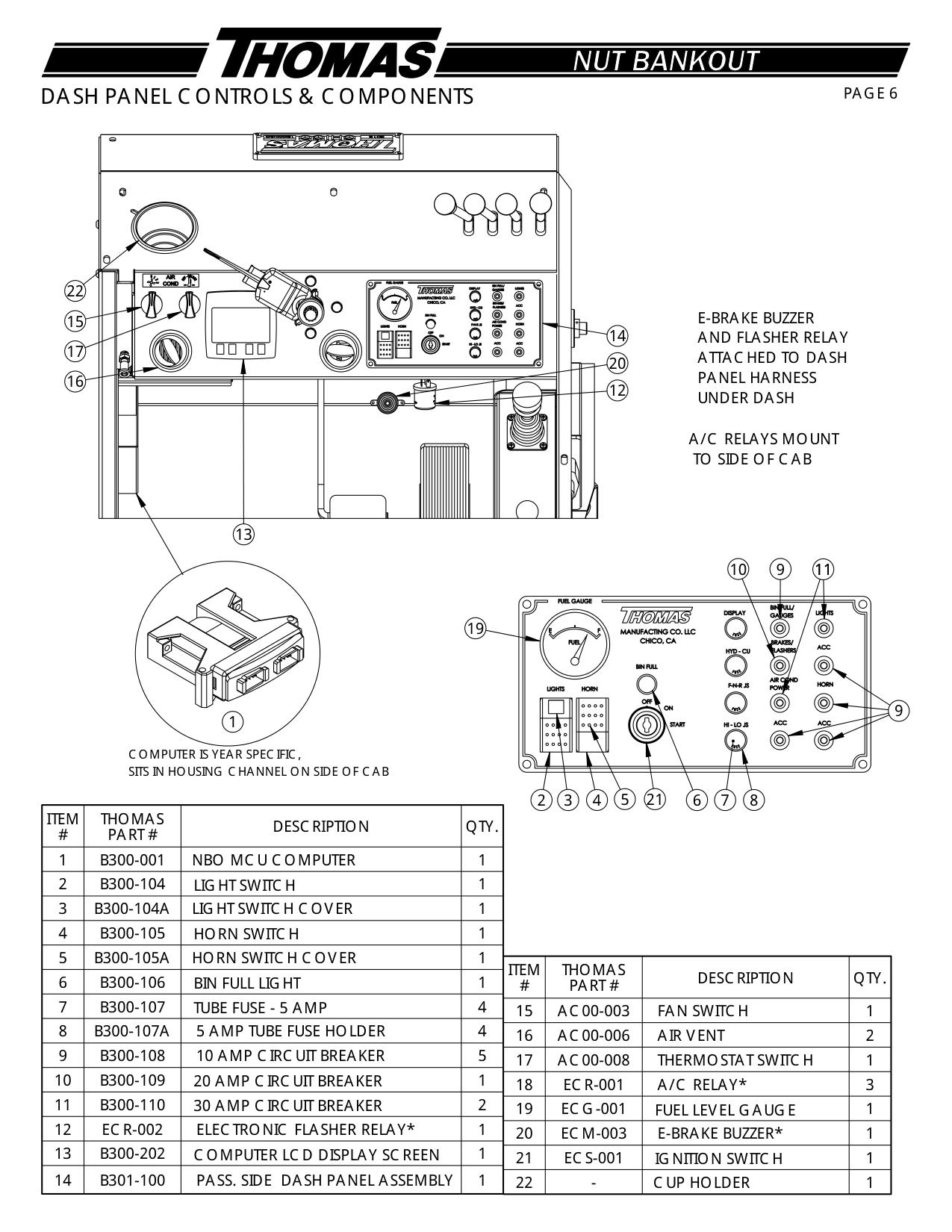

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | B300-001 | NBO MCU COMPUTER | 1 |
| 2 | B300-104 | LIGHT SWITCH | 1 |
| 3 | B300-104A | LIGHT SWITCH COVER | 1 |
| 4 | B300-105 | HORN SWITCH | 1 |
| 5 | B300-105A | HORN SWITCH COVER | 1 |
| 6 | B300-106 | BIN FULL LIGHT 1 # PART # | |
| 7 | B300-107 | TUBE FUSE - 5 AMP | 4 |
| 8 | B300-107A | 5 AMP TUBE FUSE HOLDER | 4 |
| 9 | B300-108 | 10 AMP CIRCUIT BREAKER | 5 |
| 10 | B300-109 | 20 AMP CIRCUIT BREAKER 1 18 ECR-001 A/C RELAY* | 3 |
| 11 | B300-110 | 30 AMP CIRCUIT BREAKER 2 19 ECG-001 | 1 |
| 12 | ECR-002 | ELECTRONIC FLASHER RELAY* 1 20 ECM-003 E-BRAKE BUZZER* | 1 |
| 13 | B300-202 | COMPUTER LCD DISPLAY SCREEN 1 21 ECS-001 IGNITION SWITCH | 1 |
| 14 | B301-100 | PASS. SIDE DASH PANEL ASSEMBLY 1 22 - CUP HOLDER | 1 |
